7MULCHING KIT — ABP5200
TO ATTACH THE MULCHING KIT
1. Use an impact wrench with a 3/8 in (10mm) socket (not
included) to loosen the two carriage bolts securing the baffle
bar to the deck as shown in Fig. 4.
2. Remove the baffle bar, bolts and nuts; save them for
reassembly.
3. Attach the left baffle to the mower deck
- Use two lock nuts to secure the welded posts of the left baffle
to the underside of the mower deck at positions shown in Fig. 5.
Finger-tighten the lock nuts.
- Securely tighten the two lock nuts by an impact wrench with a
3/8 in (10mm) socket (not included).
4. Attach the middle baffle to the mower deck
- Use four lock nuts to secure the welded posts of the middle
baffle to the underside of the mower deck at positions shown
in Fig. 6. Finger-tighten the lock nuts.
- Securely tighten all four lock nuts by an impact wrench with a
3/8 in (10mm) socket (not included).

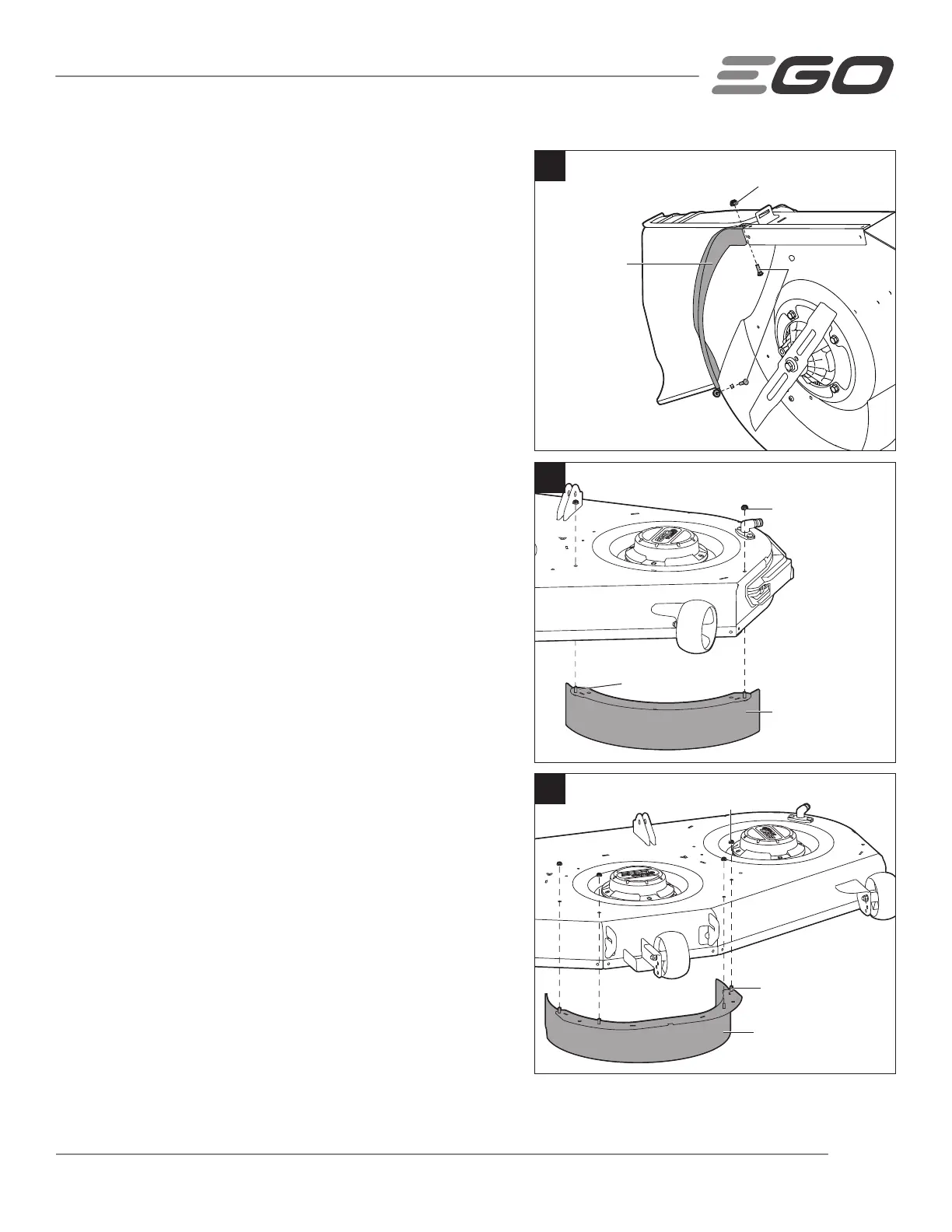

5
Lock Nut
Welded post
Left Baffle
6
Lock Nut
Welded post
Middle Baffle
4
Lock Nut
Baffle Bar
Carriage Bolt
