CULTIVATOR ATTACHMENT — CTA9500/CTA9500-FC 23
REPLACING OR ADJUSTING THE BLADES
WARNING: A worn, cracked, or damaged blade can break and pieces of the
damaged blade can become dangerous projectiles. Thrown objects can cause serious
injury. Inspect the blade regularly and do not operate the cultivator with a worn or
damaged blade.
To Replace
The cultivator has four blades – two inner blades and two outer blades. For correct
operation of the cultivator, the blades must be installed in the correct orientation.

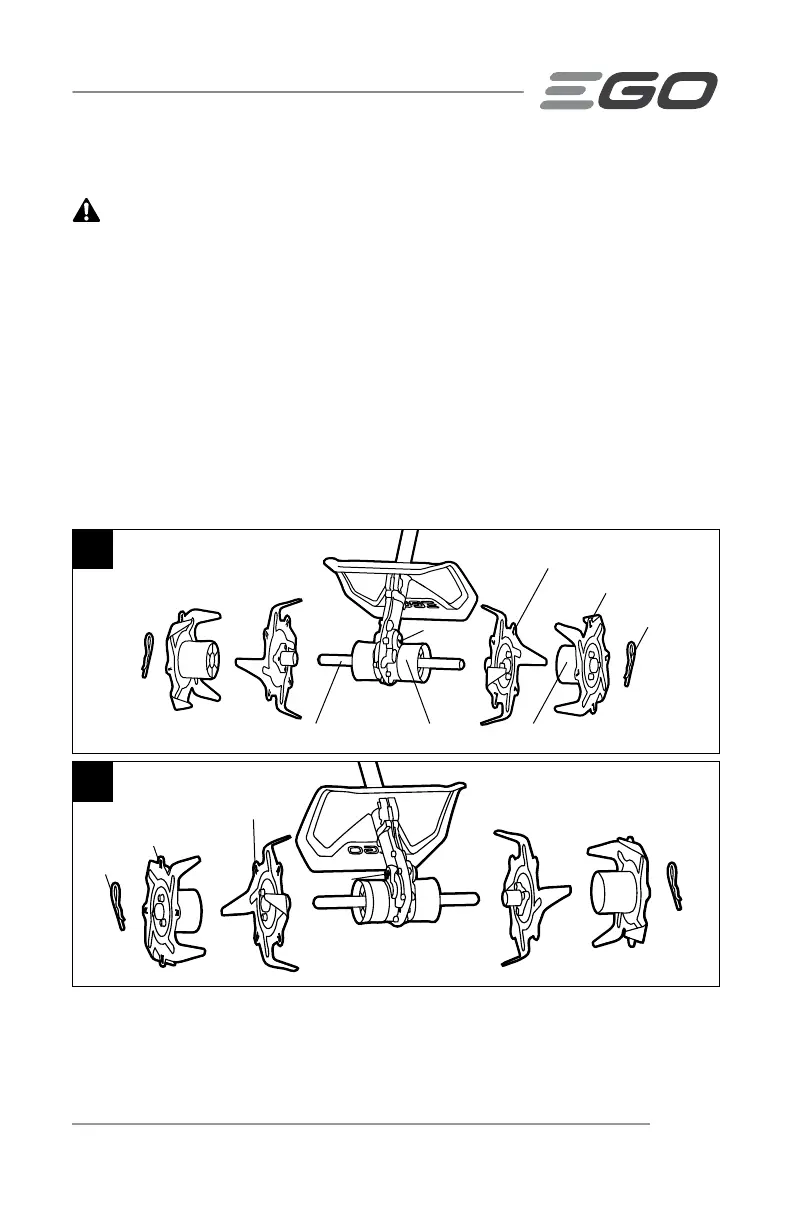

Symbols R and L are stamped on the blades (Fig. 7a & 7b).
NOTICE: THE BLADES THAT HAVE TINES FACING IN BOTH DIRECTIONS
MUST BE MOUNTED ON THE INSIDE, CLOSEST TO THE GEAR BOX.
7a
Driven Shaft Inner Sleeve Outer Sleeve
Inner Blade Stamped "L"
Symbol L
Outer Blade Stamped "L"
Hitch Pin
Hitch Pin
7b
Symbol R
Inner Blade Stamped "R"
Outer Blade Stamped "R"
