56V LITHIUM-ION CORDLESS BLOWER — LB580014

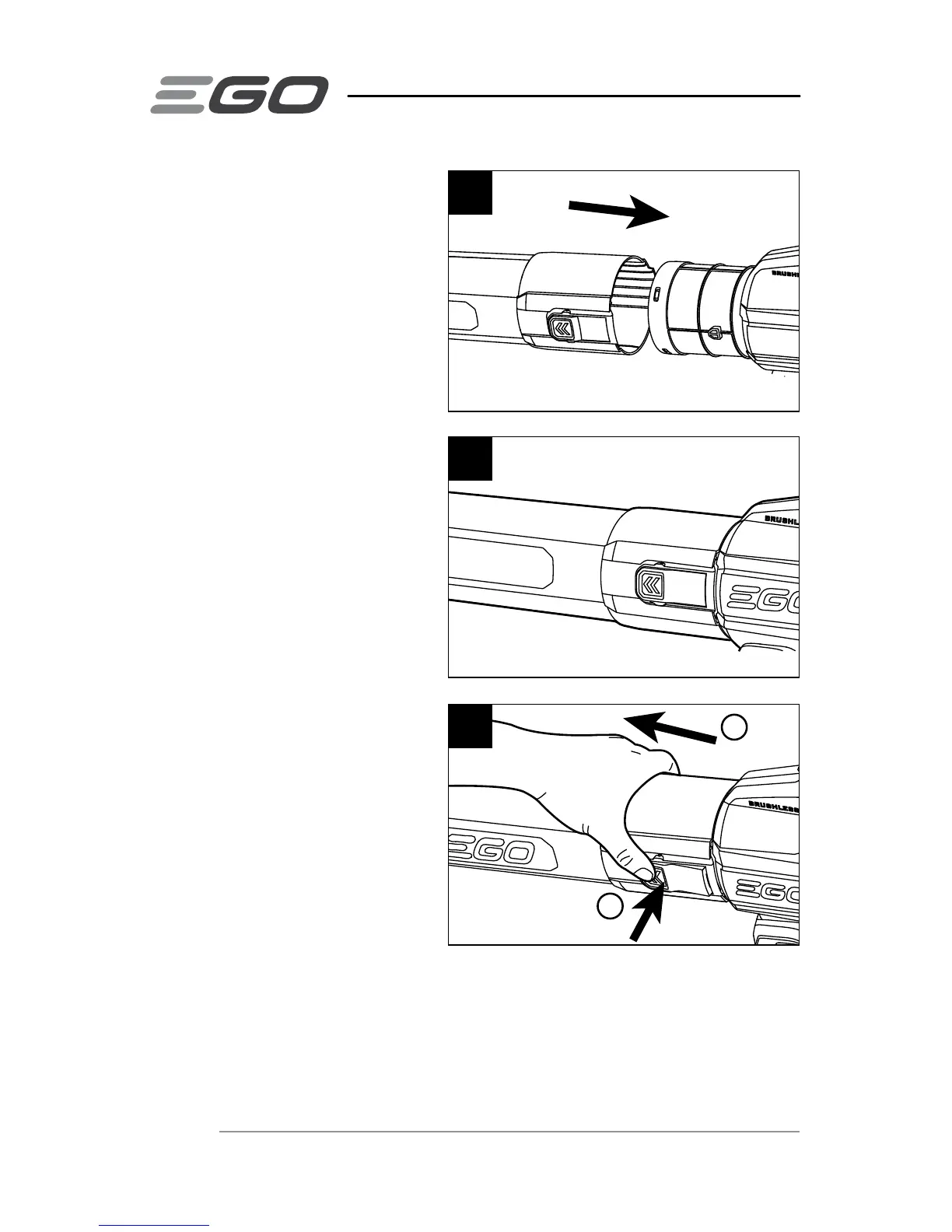

ASSEMBLING THE BLOWER
TUBE
1. Remove the battery.
2. Align the groove in the tube
with the knob on the blower
housing. Push the tube onto the
blower housing until the latch
snaps into place (Fig. 2 & 3).
3. To remove the tube, press and
hold the tube-release button
to disengage the latch, then
pull the tube straight from the
blower (Fig. 4).
2
3
4
1
2
