56V LITHIUM-ION CORDLESS BLOWER — LB6150/LB6150-FC14
ASSEMBLING THE BLOWER
NOZZLE
1. Remove the battery.

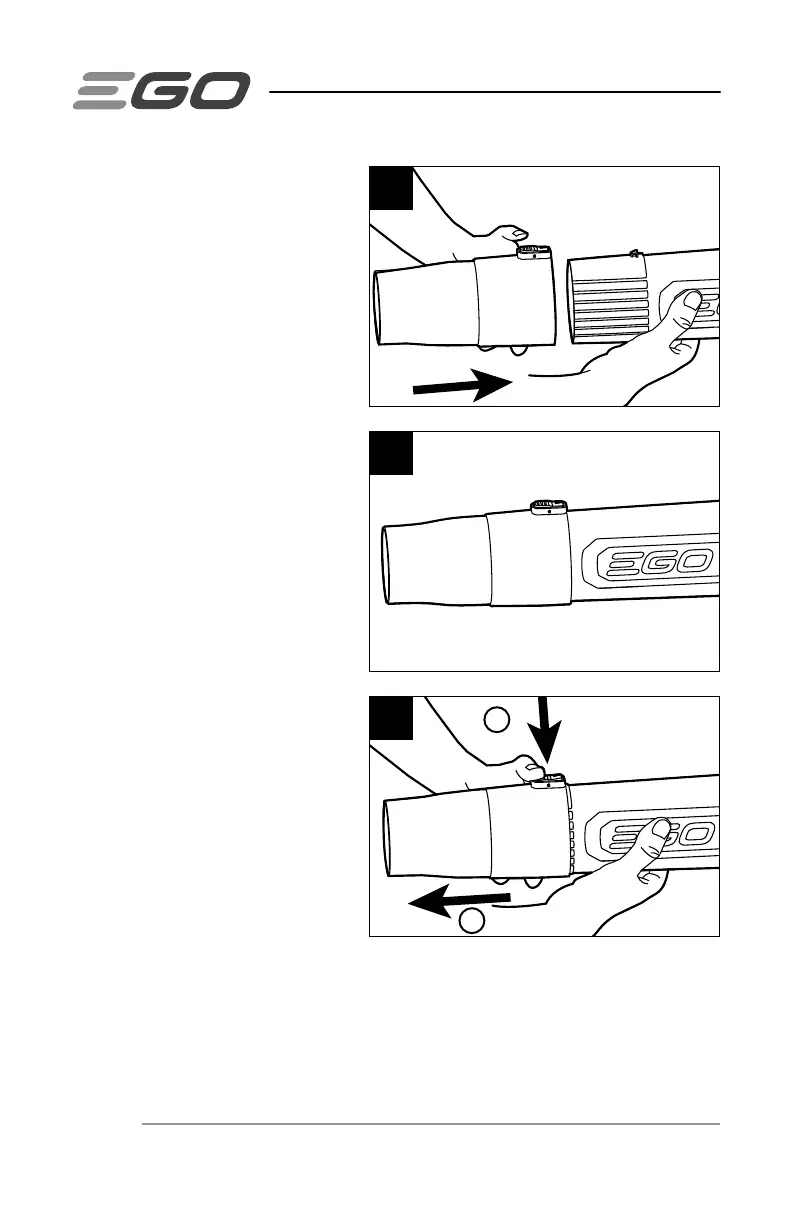

2. Align the groove in the nozzle
with the knob on the tube. Push
the nozzle onto the tube until it
snaps into place (Fig. 5 & 6).
3. To remove the nozzle, press
and hold the nozzle-release
button to disengage the latch,
then pull the nozzle straight
from the blower (Fig. 7).
5
6
7
2
1
