How to Replace the PCBA
21

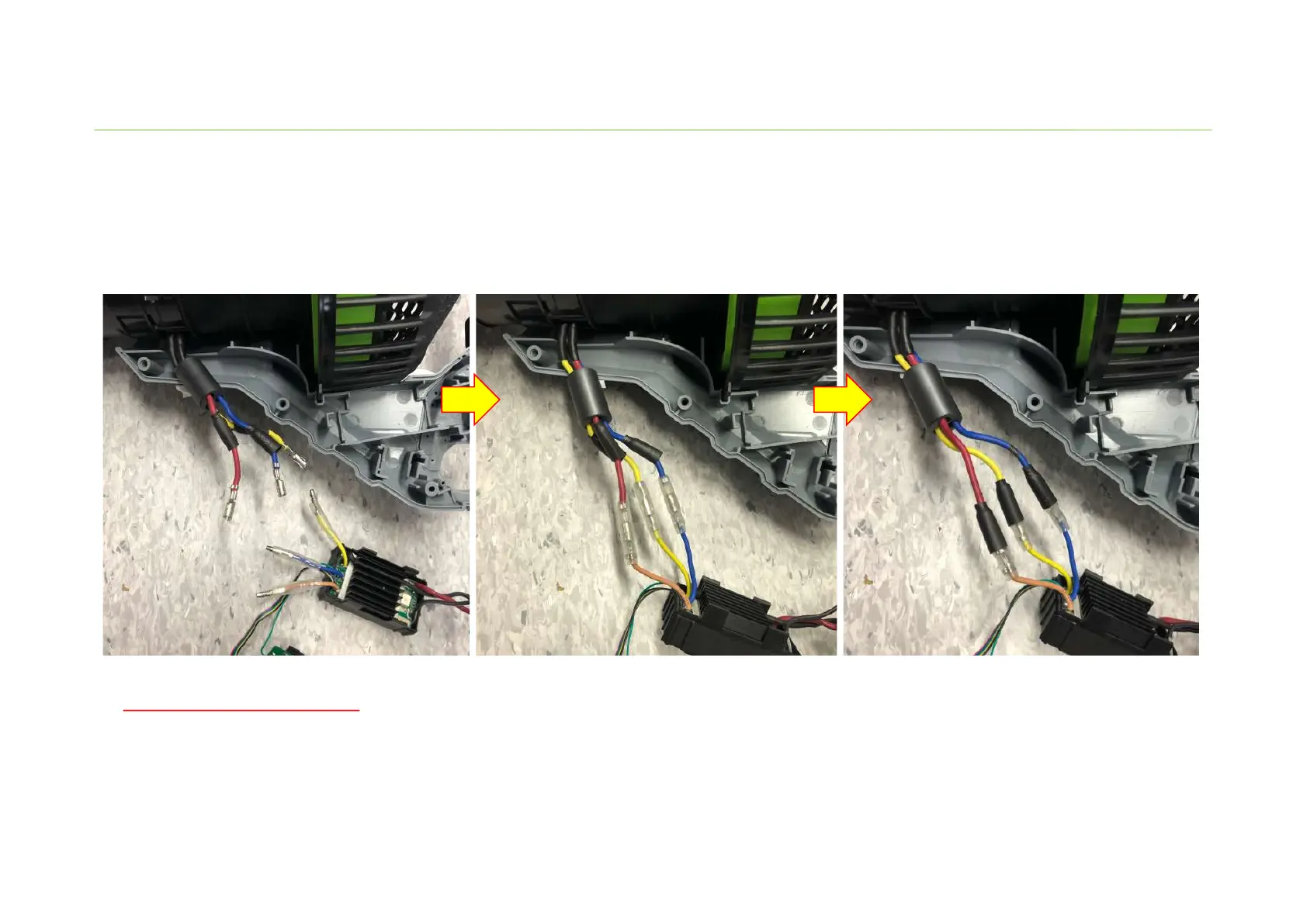

3. Reconnect the three connectors between the new PCBA and duct set as below instructed.
Correct Connection: Brown to brown, yellow to yellow, blue to blue
