2. Blade Installation
9
Stabilizer 2
Stabilizer 1
Tighten
2
Align the hole
1
THE END

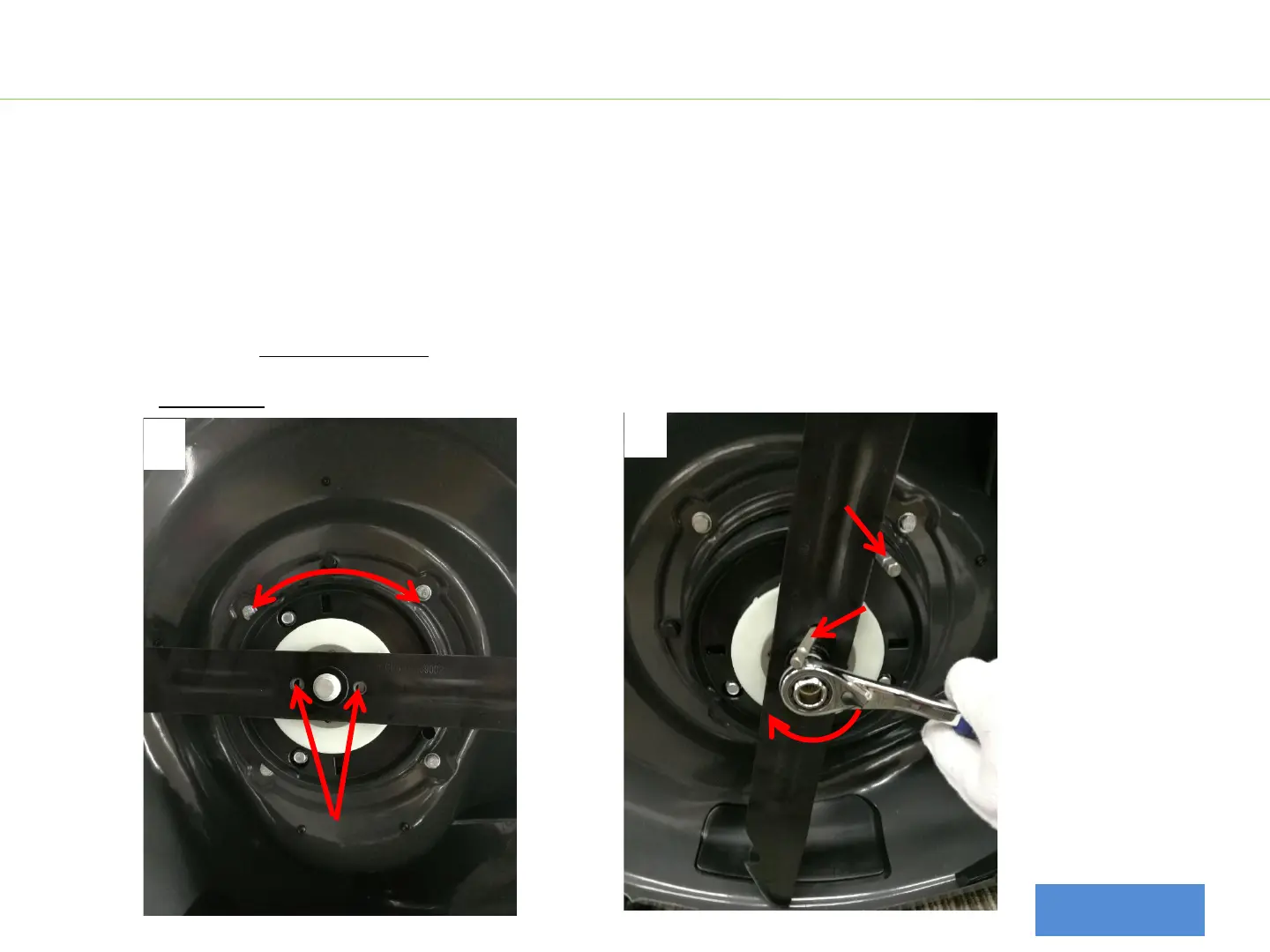

6. Turn the blade by hand to align the holes in the blade with the holes in the inner flange(Fig. 1).
7. Place a metal rod (e.g., a long bit) with diameter less than 6.35 mm into the aligned hole to act as a
stabilizer. Place another metal rod (e.g., a screwdriver) with diameter less than 8 mm into the fixing
hole on the deck to act as another stabilizer(Fig. 2).
8. Use a S=14mm torque wrench to tighten the bolt clockwise. The recommended torque for the blade
bolt is 49-59Nm.
LM2020E-SP Lawn Mower
