TECHNICAL SPECIFICATIONS
input impedance: 1 meg ohms
sensivity: -26 dB max
EFFFECTS LOOP impedance
EFFECT SEND: 600 Ohm
EFFECT RETURN/LINE IN: 10 kOhm
nominal input level: 0 dBu
LINE OUT impedance: 600 Ohm
nominal output LINE OUT: +6 db
impedance balanced DI out: 600 Ohm
nominal output level Dl out: +6 dBu
ATTACK short COMPRESS.: 5ms
ATTACK long: 25ms
TONE CONTROL:
BASS BOOST: 30Hz/+12dB
LO: 70Hz/+-15dB
LO MID: 250Hz/+-12dB
HI MID: 800Hz/+-12dB
HI: 5k/+-15dB
HI BOOST: 10k/+12dB
POWER:
2 x 500 w/2 ohms
2 x 350 w/4 ohms
1 x 1000 w/4 ohms
1 x 700 w/8 ohms
FUSE:
230V/AC + 115 V/AC 6,3 A/T (Slow Blow)
dimensions (w x h x d): 27 x 8 x 25 cm
10,6” x 3,1” x 10”
weight: 2,4 kg, 5,4 lbs

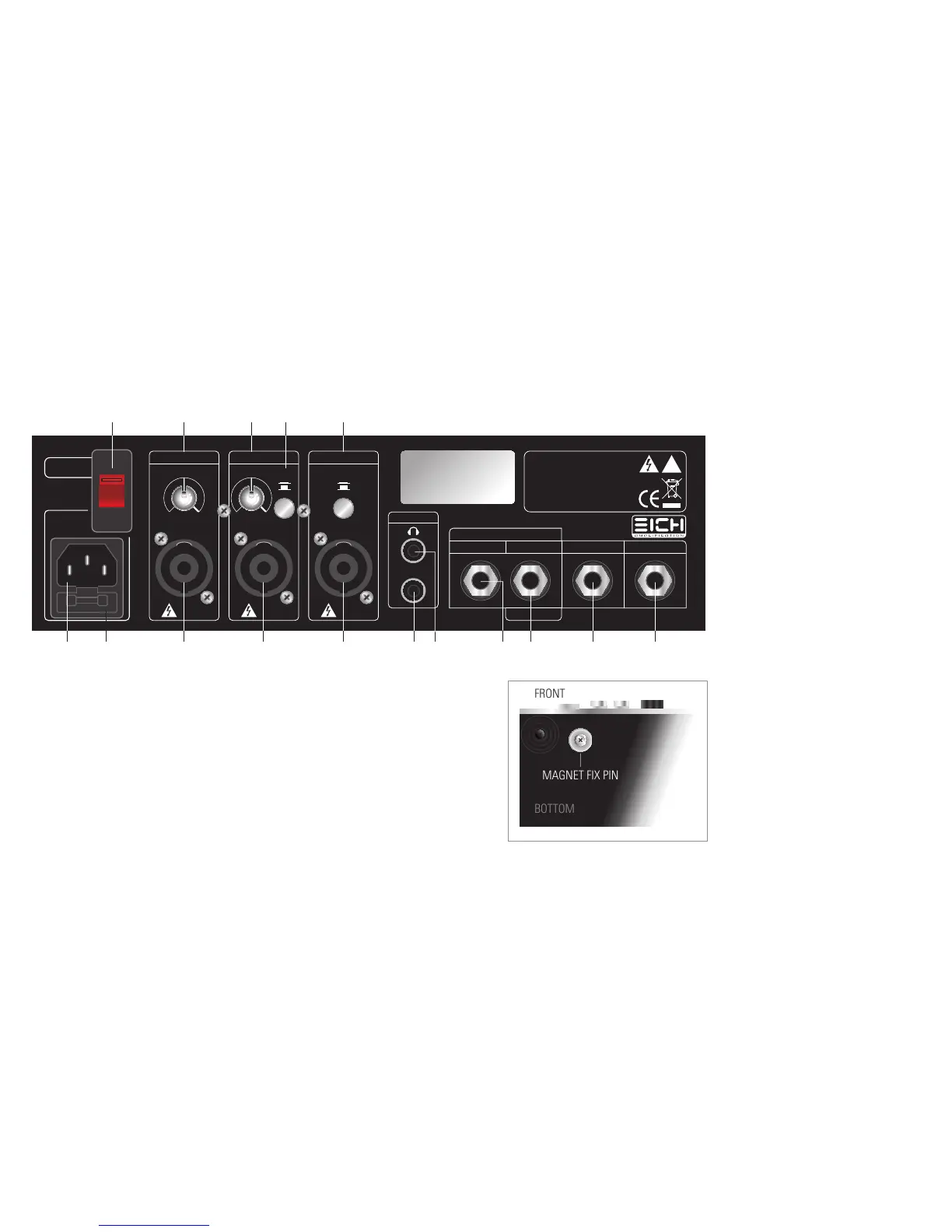

>> BACK PANEL
29a SEND
Connect the »SEND« jack to the input of the (first) exter-
nal device.
30 LINE OUT
This jack provides a line level signal for connection to
a separate power amp, PA mixing console or recording
equipment. The volume of the signal is controlled by the
»MASTER« control (#15). Note that the output is muted
when the »MUTE« function (#16) is engaged.
31 TUNER
This jack is provided for connection to an electronic tuner
and is always “live” even when the T 1000 is in »MUTE«
mode (#16). This allows for silent tuning as well as pro-
viding a monitor feed which stays hot even when the
house mix is muted.
32 MAGNET FIX PINS
On the bottom of the amp the »MAGNET FIX PINS«
holds all our T-Series Amps on all our EICH Amplifica-
tion cabinets. The ultra-strong magnets holds the amp
safe because all Cabinets are equipped with the »AMP
FIXING« system. Even inclination angle above 45 ° are
no problem.
1514
-10
0
VOLUME
-10
0
VOLUME SUB
OFF
ON
OFF
ON
N
E
U
T
R
I
K
N
E
U
T
R
I
K
N
E
U
T
R
I
K
SEND
EFFECTS LOOP
RETURN LINE OUT
LINE IN
TUNER
!
HIGH VOLTAGE! CAUTION: TO PREVENT
THE RISK OF FIRE AND SHOCK HAZARD
DON’T EXPOSE THIS APPLIANCE TO
MOISTURE OR RAIN. DO NOT OPEN CASE.
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
MIN. 2 Ω MIN. 2 Ω MIN. 4 Ω
CHANNEL
A
CHANNEL
B
BRIDGED MODE
USE ONLY WITH A 250V FUSE
VOLTAGE
SELECTOR
230
FUSE
230/115 V
T6,3 A (SB)
REHEARSAL
AUX IN
Made in Germany
22 26 313029a25 24 28 29b22a 27
23 26a 25a 25b 24a
