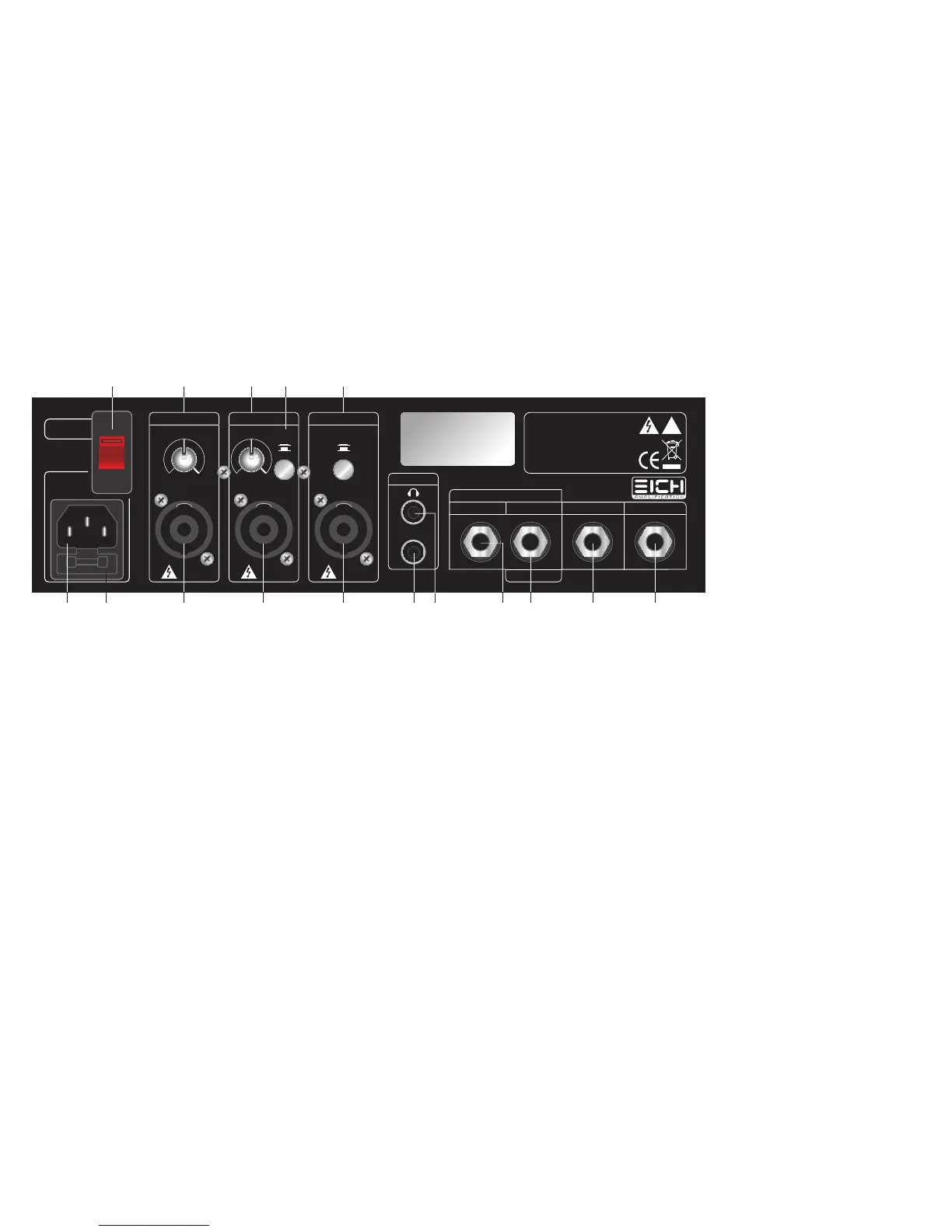

>> BACK PANEL
amp features one Neutrik Speakon
®
connector. If you
want to connect more than one speaker cabinet to the
SPEAKON
®
outputs you have to daisy chain one cabinet
with the next.
Just make sure that the minimum load of each power
amp is no less than 2 ohms.
»CHANNEL A« (#26) works exactly the same way as
»CHANNEL B« (#25). Thus, in total, you could connect
two cabinets with an impedance of 2 ohms each or four
cabinets with an impedance of 4 ohms each to the T
1000 simultaneously.
Both power amp channels have got their own »VOLUME«
control (#25a,26a). They allow you to set individual out-
put levels for the cabinets connected thus leaving you
with a couple of interesting options. Do make sure that
the »BRIDGE ON / OFF« switch (#24a) is in the »OFF« po-
sition – otherwise these »VOLUME« controls (#25a,26a)
are not active.
25b SUB ON / OFF
“CHANNEL B” (#25) features a unique “SUB BOOST”
filter (#25b) doing two different things simultaneously:
When this switch is depressed a low pass filter cuts all
frequencies above 200 Hz. At the same time there is a
level boost of 12 dB. This switch makes your T 1000 the
ideal amp for the use with a EICH BASS BOARD together
with a “normal” cabinet. Connect the BASS BOARD to
“CHANNEL B” (#25) with the “SUB BOOST” function
(#25b) depressed and a “normal” speaker cabinet to
“CHANNEL A” (#26) while balancing the output levels
accordingly.
26 CHANNEL A
»CHANNEL A« (#26) works exactly the same way as
»CHANNEL B« (#25) with the exception of not offering
the »SUB« filter (#25b). Thus you can connect one or two
speakers (by daisy chaining them) with a total impe-
dance of 2 ohms. The output power rating is 500 watts.
»CHANNEL A« (#26) and »CHANNEL B« (#25) can be ope-
rated simultaneously.
»CHANNEL A« (#26), just like »CHANNEL B« (#26), fea-
tures its own »VOLUME« control (#25a,26a). It allows
you to adjust individual output levels for both channels
and thus the cabinets connected. Do make sure that the
»BRIDGE MODE ON / OFF« switch (#24a) is in the »OFF«
position – otherwise this »VOLUME« control is not ac-
tive.
27 PHONE OUT
This 3.5 mm stereo jack lets you connect your headphones.
With the »MASTER« volume (#15) you can control both the
level of your instrument and the level of the audio source
connected to the »AUX IN« jack (#28). It is possible to use
your T 1000 without a cabinet, so you can just play in any
situation!
28 AUX IN
This 3.5mm stereo »AUX IN« jack (#28). provides the pos-
sibility to connect your mp3 player, your iphone or other
external audio sources. You can control its‘ level with the
»MASTER« volume (#15) to blend it with your bass signal.
Please use the included 3.5mm stereo cable to connect the
audio source of your choice.
29 EFFECTS LOOP
RETURN/LINE IN, SEND
These two 1/4” jacks are the serial patch points for ex-
ternal signal processing effects.
29b RETURN/LINE IN
Connect the output of the (last) external device to the
»RETURN« jack.
Always use high quality shielded instrument cables for
connecting to and from external devices. Keep the cables
as short as possible.
If you notice crackling distortion when using external
effects, either the batteries of the stomp box have run
out, or the send level of the amplifier is too high for the
processor’s input stage. In this case you better connect
the device between bass guitar and amplifier.
The »RETURN / LINE IN« jack (#29b) can also be used
to connect various external audio sources to the T 1000
such as an MP3 player, or in order to just use the power
amp of the T 1000. The »MASTER« control (#15) deter-
mines the final output level. As the »RETURN / LINE IN«
jack (#29b) is placed after the tone controls (#8 through
#13).
1312
-10
0
VOLUME
-10
0
VOLUME SUB
OFF
ON
OFF
ON
N
E
U
T
R
I
K
N
E
U
T
R
I
K
N
E
U
T
R
I
K
SEND
EFFECTS LOOP
RETURN LINE OUT
LINE IN
TUNER
!
HIGH VOLTAGE! CAUTION: TO PREVENT
THE RISK OF FIRE AND SHOCK HAZARD
DON’T EXPOSE THIS APPLIANCE TO
MOISTURE OR RAIN. DO NOT OPEN CASE.
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
MIN. 2 Ω MIN. 2 Ω MIN. 4 Ω
CHANNEL
A
CHANNEL
B
BRIDGED MODE
USE ONLY WITH A 250V FUSE
VOLTAGE
SELECTOR
230
FUSE
230/115 V
T6,3 A (SB)
REHEARSAL
AUX IN
Made in Germany
22 26 313029a25 24 28 29b22a 27
23 26a 25a 25b 24a
