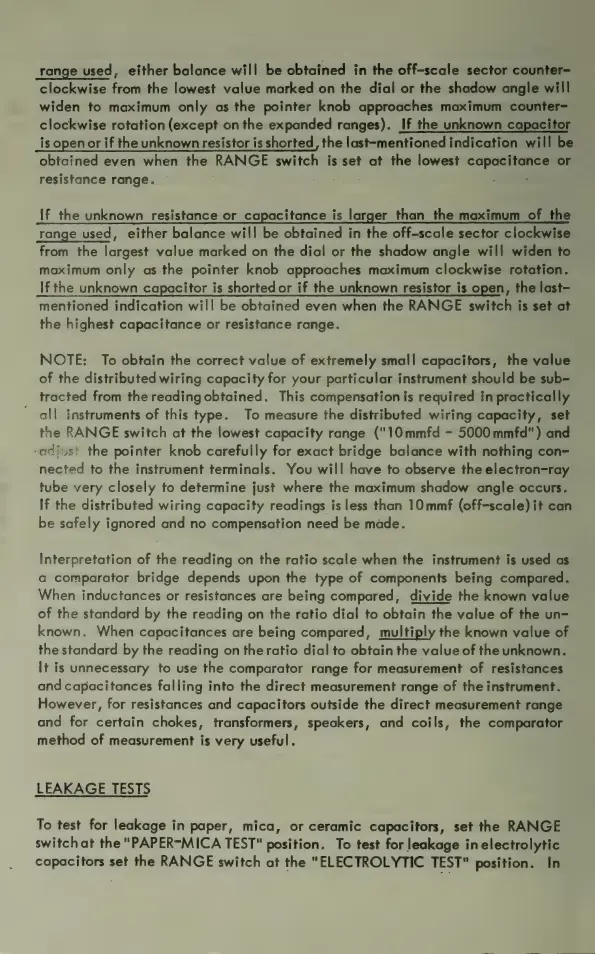

range
used,
either
balance
will
be
obtained
in
the
off-scale
sector
counter-
clockwise
from
the
lowest
value
marked
on
the
dial
or
the
shadow
angle
will
widen
to
maximum
only
as
the
pointer
knob
approaches
maximum
counter-
clockwise
rotation
(except
on
the
expanded
ranges).
If
the
unknown
capacitor
is
open
or
if
the
unknown
resistor
is
shorted,
the
last-mentioned
indication
will
be
obtained
even
when
the
RANGE
switch
is
set
at
the
lowest
capacitance
or
resistance
range.
'
if
the
unknown
resistance
or
capacitance
is
larger
than
the
maximum
of
the
range
used,
either
balance
will
be
obtained
in
the
off-scale
sector
clockwise
from
the
largest
value
marked
on
the
dial
or
the
shadow
angle
will
widen
to
maximum
only
as
the
pointer
knob
approaches
maximum
clockwise
rotation.
If
the
unknown
capacitor
is
shorted
or
if
the
unknown
resistor
is
open,
the
last-
mentioned
indication
will
be
obtained
even
when
the
RANGE
switch
is
set
at
the
highest
capacitance
or
resistance
range.
NOTE:
To
obtain
the
correct
value
of
extremely
small
capacitors,
the
value
of
the
distributed
wiring
capacity
for
your
particular
instrument
should
be
sub-
tracted
from
the
reading
obtained.
This
compensation
is
required
in
practically
all
instruments
of
this
type.
To
measure
the
distributed
wiring
capacity,
set
the
RANGE
switch
at
the
lowest
capacity
range
("10mmfd
-
5000
mmfd")
and
‘adjust
the
pointer
knob
carefully
for
exact
bridge
balance
with
nothing
con-
nected
to
the
instrument
terminals.
You
will
have
to
observe
the
electron-ray
tube
very
closely
to
determine
just
where
the
maximum
shadow
angle
occurs.
If
the
distributed
wiring
capacity
readings
is
less
than
10
mmf
(off-scale)
it
can
be
safely
ignored
and
no
compensation
need
be
made.
Interpretation
of
the
reading
on
the
ratio
scale
when
the
instrument
is
used
as
a
comparator
bridge
depends
upon
the
type
of
components
being
compared.
When
inductances
or
resistances
are
being
compared,
divide
the
known
value
of
the
standard
by
the
reading
on
the
ratio
dial
to
obtain
the
value
of
the
un-
known.
-When
capacitances
are
being
compared,
multiply
the
known
value
of
the
standard
by
the
reading
on
the
ratio
dial
to
obtain
the
value
of
the
unknown.
lt
is
unnecessary
to
use
the
comparator
range
for
measurement
of
resistances
and
capacitances
falling
into
the
direct
measurement
range
of
the
instrument.
However,
for
resistances
and
capacitors
outside
the
direct
measurement
range
and
for
certain
chokes,
transformers,
speakers,
and
coils,
the
comparator
method
of
measurement
is
very
useful.
LEAKAGE
TESTS
To
test
for
leakage
in
paper,
mica,
or
ceramic
capacitors,
set
the
RANGE
switch
at
the
"PAPER-MICA
TEST"
position.
To
test
for
leakage
in
electrolytic
capacitors
set
the
RANGE
switch
at
the
"ELECTROLYTIC
TEST"
position.
In
