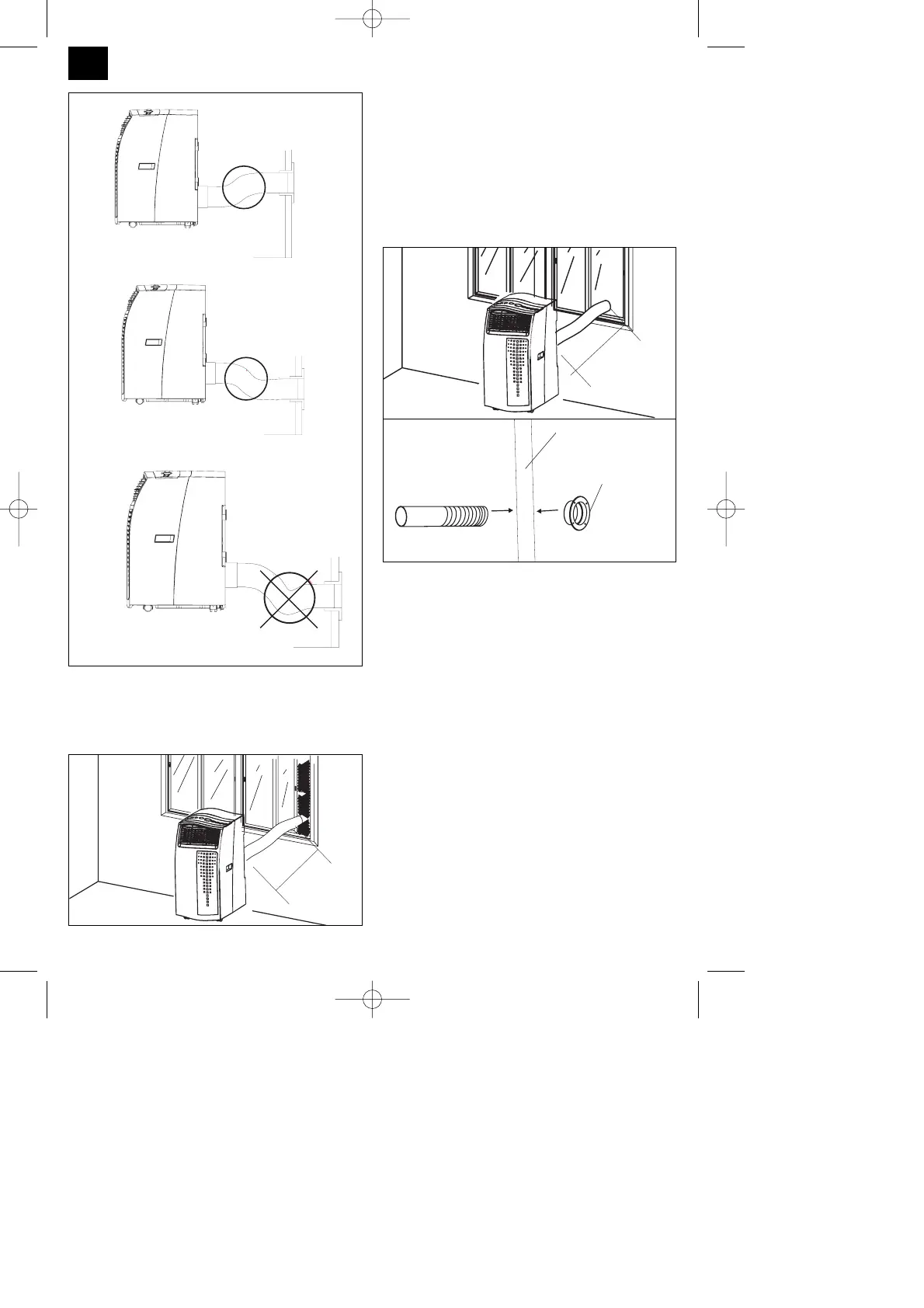

A) Installing the exhaust air hose
through an open window
Use the foam parts and shorten them if required.
Guide the exhaust air hose through the opening in
the foam to the outside. Secure the window so that
the foam is kept firmly in place.
Note: Take appropriate precautions to prevent
unauthorized entry through the window.
B) Installation of the exhaust air hose
through the window pane or the wall
앬 Cut or drill a hole of approx. 136 mm diameter
though the window pane or the wall.
앬 Insert the bushing ring from the outside to the
inside and fasten.
앬 Feed the exhaust air hose through the bushing
ring.
앬 When the system is not being used, fit the cap on
the bushing ring on the outside.
C) Draining off the condensation water
with the water tank
ALL OF THE CONDENSATION WATER MUST BE
DRAINED OFF BEFORE YOU EVER RELOCATE
OR STOP USING THE DEVICE:
Note:
When the condensation water tank is full the
compressor and the fan motor shut down. The “W.F.”
LED flashes and a signal sounds temporarily. The
acoustic signal then goes out but the “W.F.” LED
carries on flashing.
14
GB
50 cm
50 cm
Right
Right
Wrong
Wall or window pane
Bushing ring
