A PPENDIX I E THERNET C ABLE S PECIFICATIONS

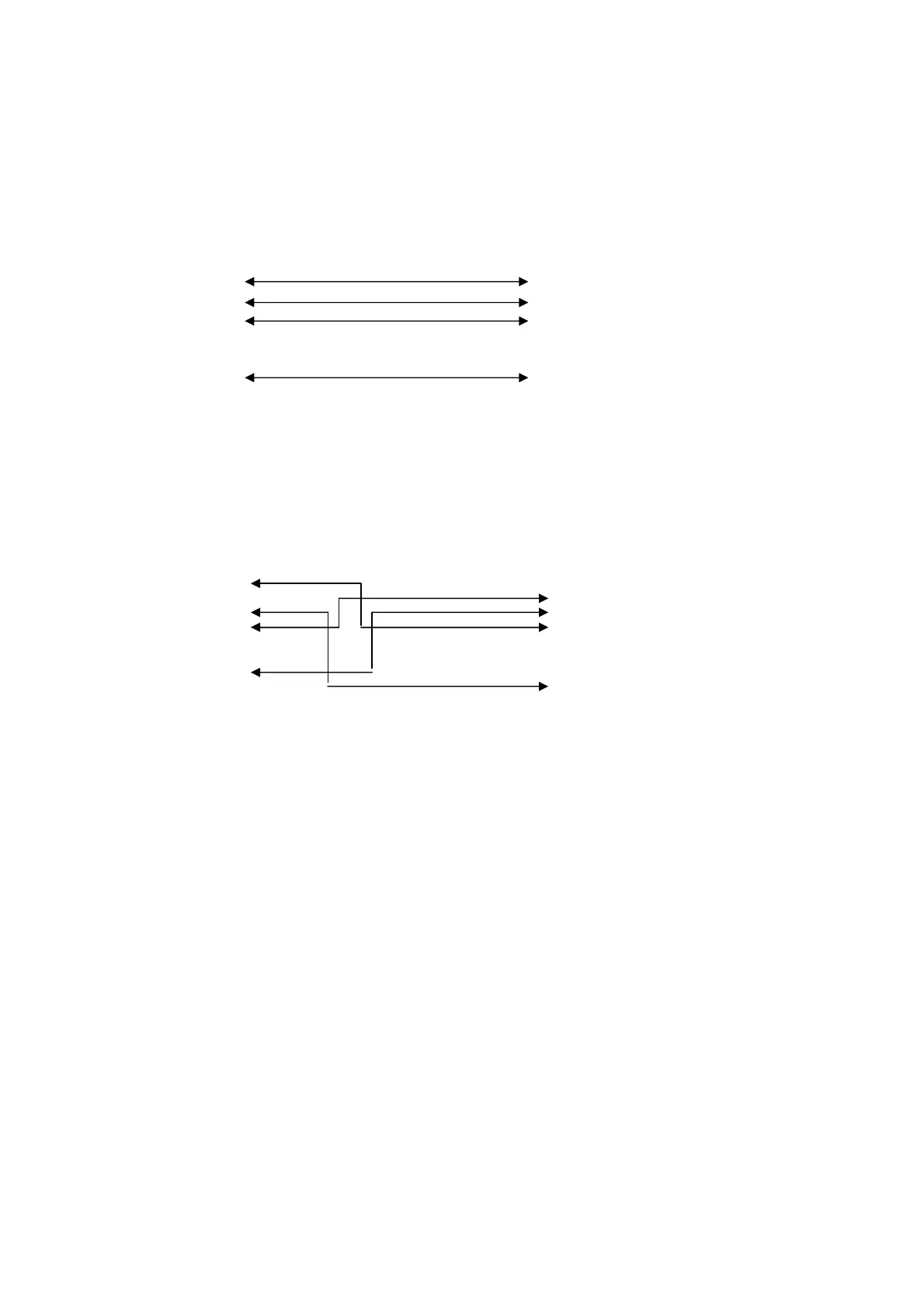

Standard Ethernet Cable
This type of cable is used if a Hub is connected to the system.
Pin 1 Orange/White
Pin 2 Orange
Pin 3 Green /White
Pin 4 Blue
Pin 5 Blue/White
Pin 6 Green
Pin 7 Brown/White
Pin 8 Brown
Crossover Cable
This type of cable is used if a direct connection is made from the PC to the system.
Pin 1 Orange/White
Pin 2 Orange
Pin 3 Green /White
Pin 4 Blue
Pin 5 Blue/White
Pin 6 Green
Pin 7 Brown/White
Pin 8 Brown
Pin 1 Orange/White
Pin 2 Orange
Pin 3 Green/White
Pin 4 Blue
Pin 5 Blue/White
Pin 6 Green
Pin 7 Brown/White
Pin 8 Brown
Pin 1 Orange/White
Pin 2 Orange
Pin 3 Green/White
Pin 4 Blue
Pin 5 Blue/White
Pin 6 Green
Pin 7 Brown/White
Pin 8 Brown
