THERMOSTAT REPLACEMENT
The thermostat is located within the Metal Heater (Part No.4) and may
easily by replaced by following these instructions.
1. The metal heater (Part No. 4) is turned off
and the still is isolated from the mains
electric supply.
2. The three small retaining screws holding
the plastic cup is place is removed (Not
the three bolts securing the Heater to the
Boiler).
3. Referring to the wiring diagram, the two
wires to the thermostat are disconnected.
4. The thermostat is removed from the
Heater pocket.
5. The new thermostat is placed in position and the electrical
connections are made.
6. Check whether the thermostat is set of 125°C.
7. Replace the Metal cover of the Heater.
-10-
© EISCO SCIENTIFIC ● www.eiscolabs.com
RED
BL
A
CK
R
E
D
GREEN
BLACK
RED

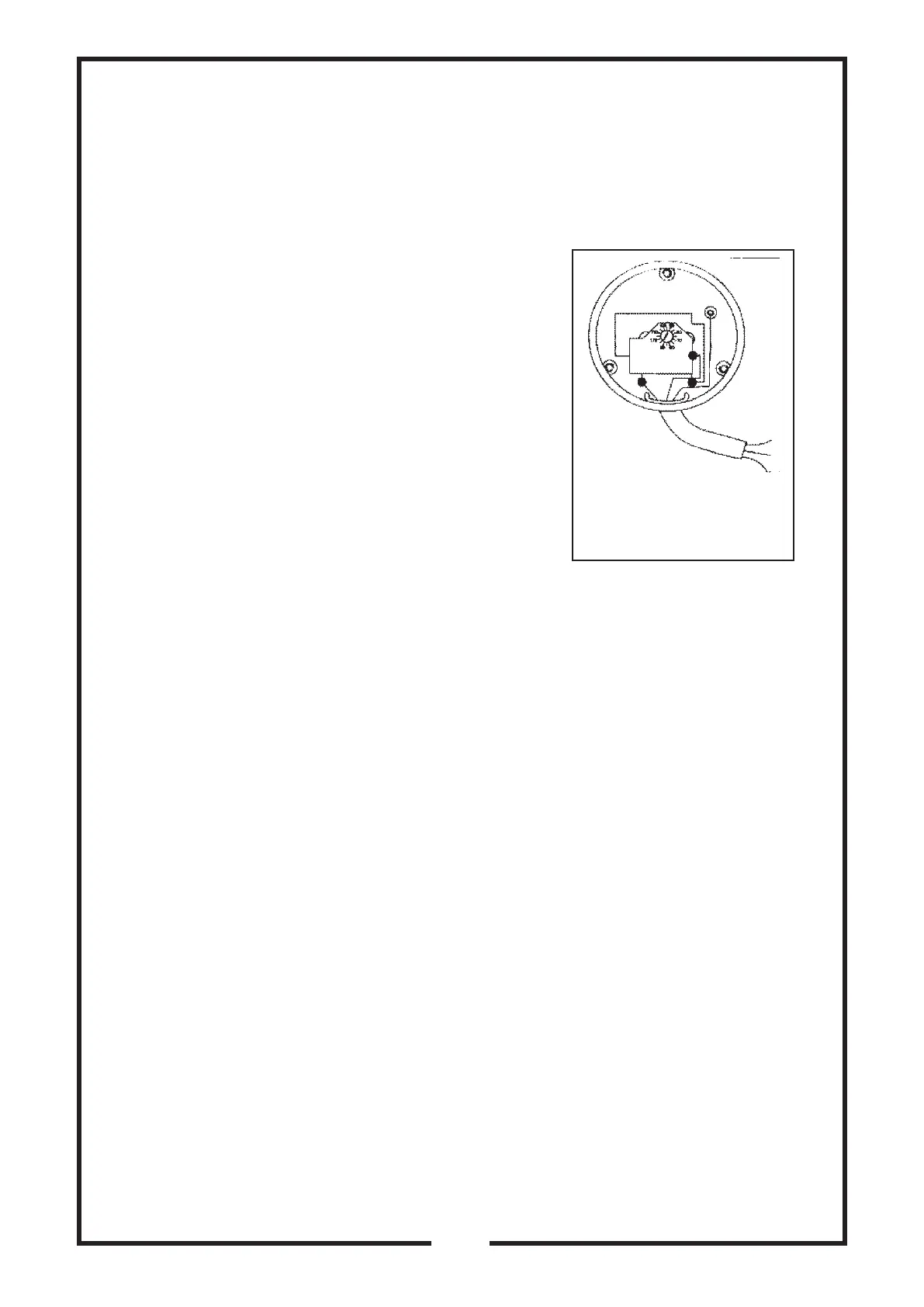

Wiring Detail
Green : Earth
Black : Neutral
Red : Live
Thermostat
ENVIRONMENTAL CONDITIONS
1. Pollution Degree: 2
2. Installation Category: 2
3. Altitude: 2000 meters Max.
4. Electrical Supply: 220V - 240V AC, 50Hz
5. Equipment is meant for Indoor use only
6. Ambient Temperature: 40°C Max.
