EKO CORE 500 Quick Start Guide

6
Tips to Improve ECG Signal

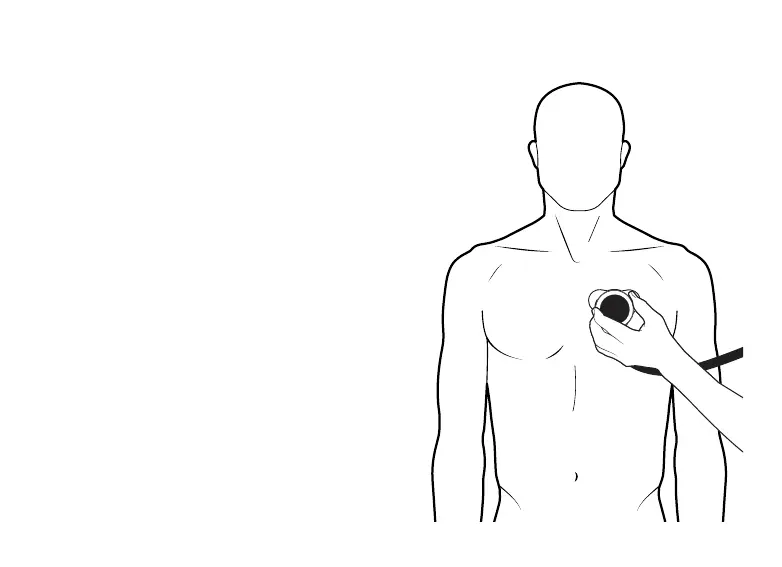

Placement
Place the CORE 500™ firmly on the patient’s
chest to get a clean ECG signal.
Interpret in Eko App
Use Eko App to read and interpret the 3-lead
ECG. The ECG tracing on the CORE 500™ is the
same as the 1st channel shown in the
Eko App.
Skin preparation
• Clean the skin and/or electrodes with 70% IPA
wipes to get a better ECG signal. Some wipes
are included in the product box.
• ECG gel is recommended for patients with dry
skin or significant body hair.

EKO CORE 500 Specifications

General

Type	Digital Stethoscope
Connectivity	Bluetooth
Amplification	Up to 40x
Active Noise Cancellation	Yes
FDA Clearance	Yes
HSA/FSA eligibility	Yes
Water Resistance	IPX4
Compatibility	iOS and Android
Frequency Response	20Hz - 2000Hz
