Connecting Speakers and Subwoofer

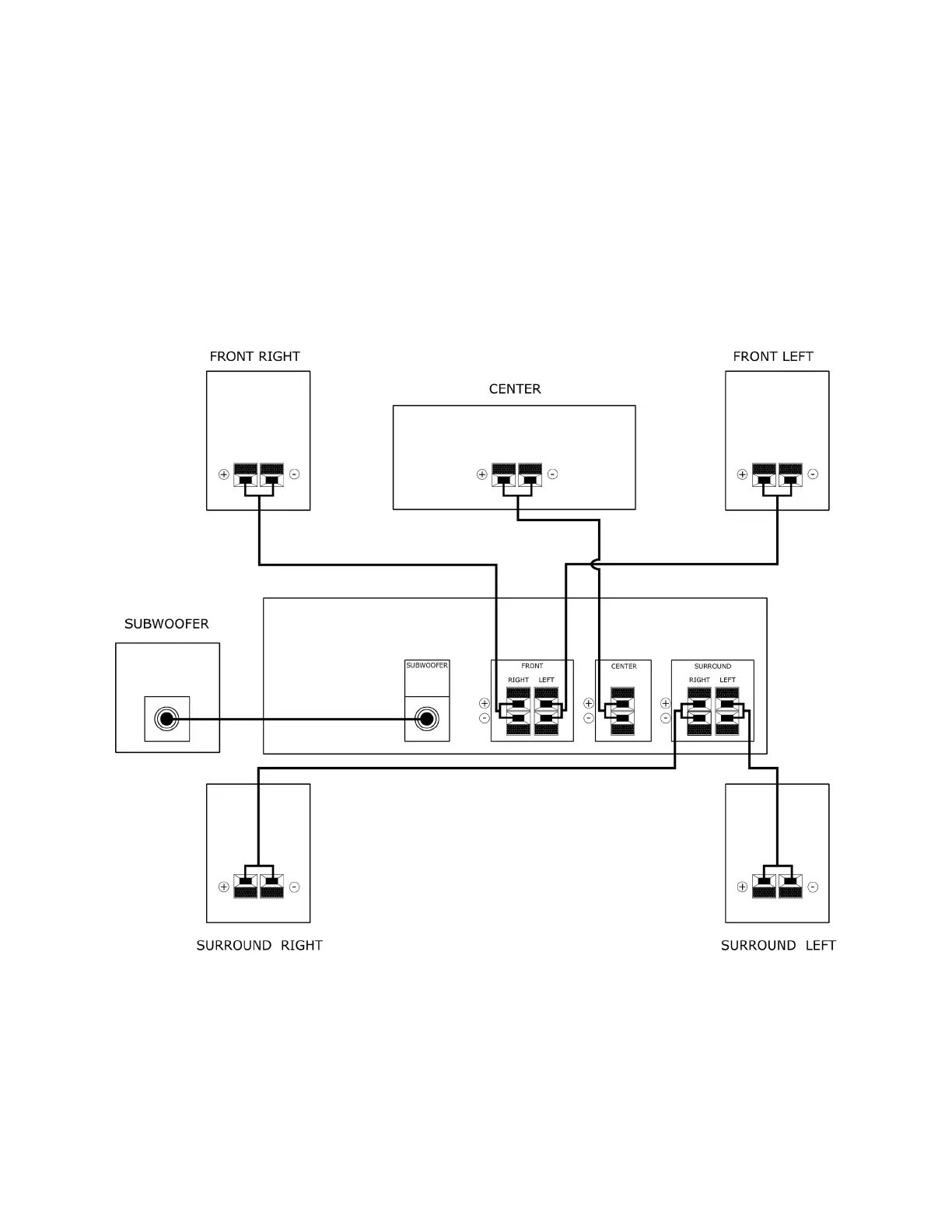

Follow the below diagram to connect the Cinema 5.2 speakers and subwoofer to your AV receiver. Ensure
that you connect the positive (Red +) connector and the negative (Black -) connector on each speaker to the
positive (Red +) connector and negative (Black -) connector on the AV receiver for each channel. Connect the
subwoofer output from your AV receiver using a mono or stereo RCA cable (Not included). If your receiver only
has a single subwoofer output then connect it to the L/LFE Input. Refer to page 9 for the correct settings for the
subwoofer.
For additional detail on connecting the speakers, please refer to the instruction manual that came with your AV
receiver.
