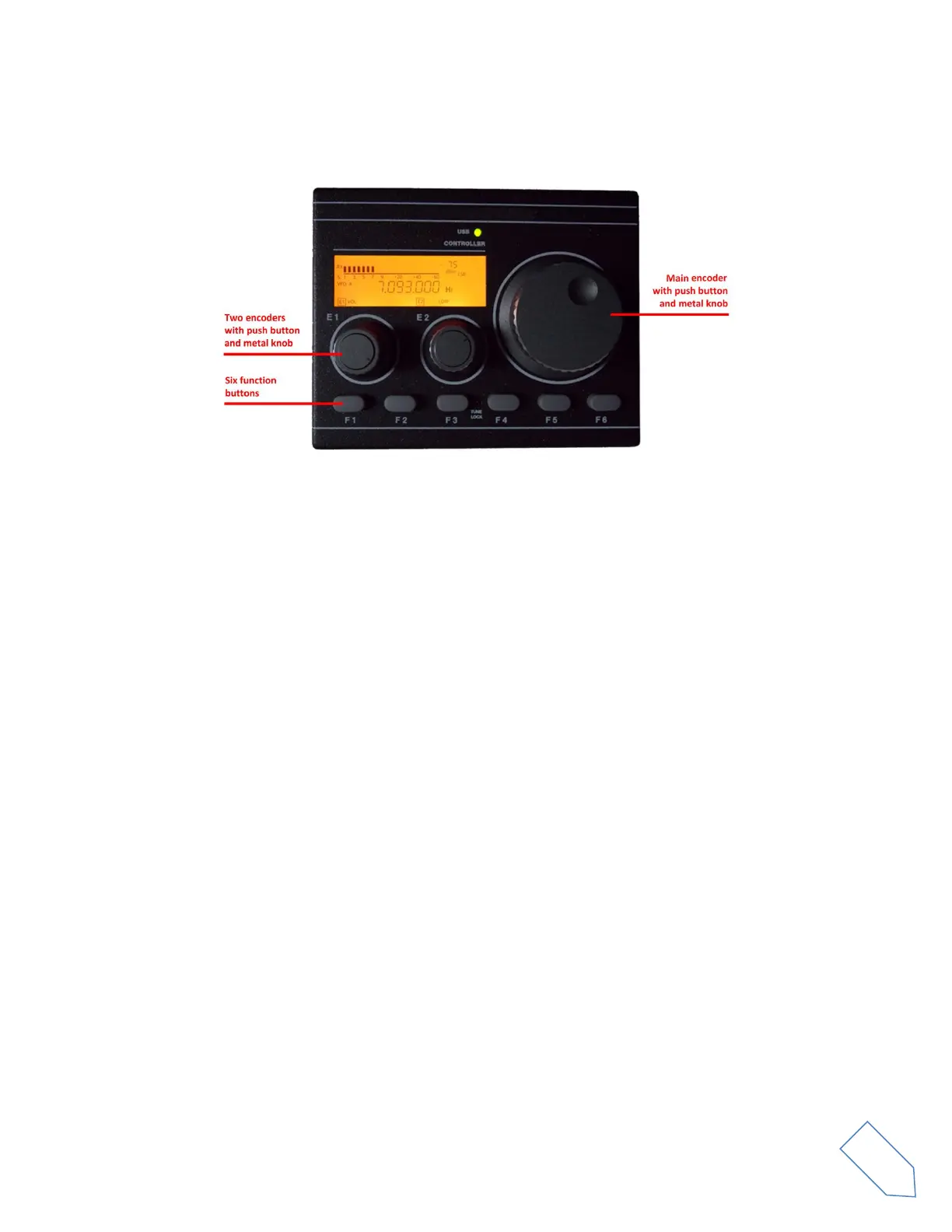

Editable parameters, encoders functionality and LEDs meaning are described below.
Editable parameters :
 with the main encoder : frequency, “Lock To CF”,
 with the E1 encoder : volume, squelch, noise reducer, noise blanker, auto notch,
 with the E2 encoder : filter bandwidth,
 with the buttons :
o F1 : changes the selected receiver (works only when more than one receiver active),
o F2 : changes the AGC setting,
o F3 and F4 : changes the mode,
o F5 and F6 : changes the step.
Encoders functionality :
 main encoder : allows to tune the frequency,
 main encoder button : toggles the functionality “Lock To CF”,
 E1 encoder : modifies the selected E1 parameter value,
 E1 encoder button : changes the E1 parameter selection,
 E2 encoder : modifies the selected E2 parameter value,
 E2 encoder button : changes the E2 parameter selection.
LEDs :
 USB green led : indicates that the TMate 2 is operating,
 Tune Lock red led : indicates if the “Lock To CF” functionality is enable or not.
