Used to select the corresponding Chase speed control mode. There are three modes:
(1) AUDIO - controlled by audio signals.
(2) _x1 - controlled by the SPEED adjuster, the fastest Chase speed can be within a
few seconds.
(3) 10 min -_controlled by the SPEED adjuster, the slowest Chase speed can be
within a few minutes.
The left switch controls CH1-4 / CH9-12, and the right switch controls CH5-8 /
CH13-16.
14. EFFECT Switches (x8):
Use these switches to activate or deactivate the corresponding channels output.
15. CHANNEL Buttons (x16):
These buttons can lock (LATCH) or trigger (FLASH) the corresponding channels output,
(according to the setting of the FLASH / LATCH selector switch).
16. Channel LED:
The channel LED indicates the status of corresponding channels output.
17. STAND BY LED:
This LED indicates the status of the STAND BY function. When the LED is “blinking”, it
means the output is not active, while when the LED is “off” it means the output is active.
18. STAND BY button:
This button disables the all output momentarily. While pressing this button for a second
time, the channel output will be reactivated.
19. READY LED:
This LED indicates the status of the fog Machine. When the LED is lit the Fog Machine
is READY.
20. HEATING LED:
This LED indicates that the fog machine is connected correctly. When the LED is lit, it
indicates that t the connection is OK.
21. Fog Machine button:
Pressing this button after the READY LED is lit; will activate the fog machine.

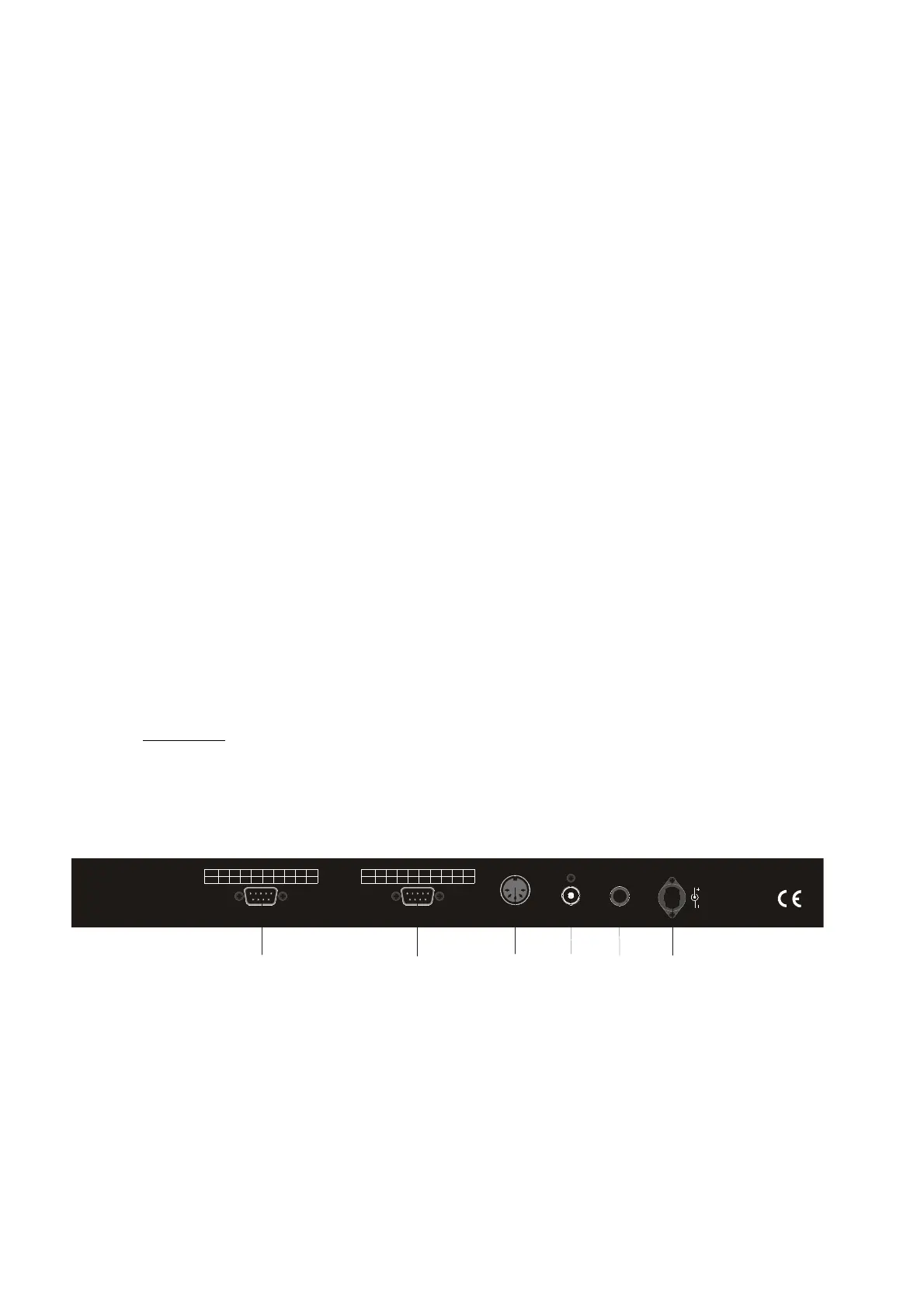

2.1.2 Rear panel
1. CH9-16 outlet: to output signals according to 9-16 channels.
2. CH1-8 outlet: to output signals according to 1-8 channels.
3. Fog machine connector: connects to a fog machine using a 5-pin cable. Compatible
fog machines include the Vaporizer™, Vapor Flow™, Fog Storm 1200™ and
1700™.
4. Audio input: to input audio signals.
5. Strobe output: 1/4” mono jack for output to strobes.
6. DC input: used to plug in the external power supply (9 ~12V DC 500mA).
2.2 Relay Pack
