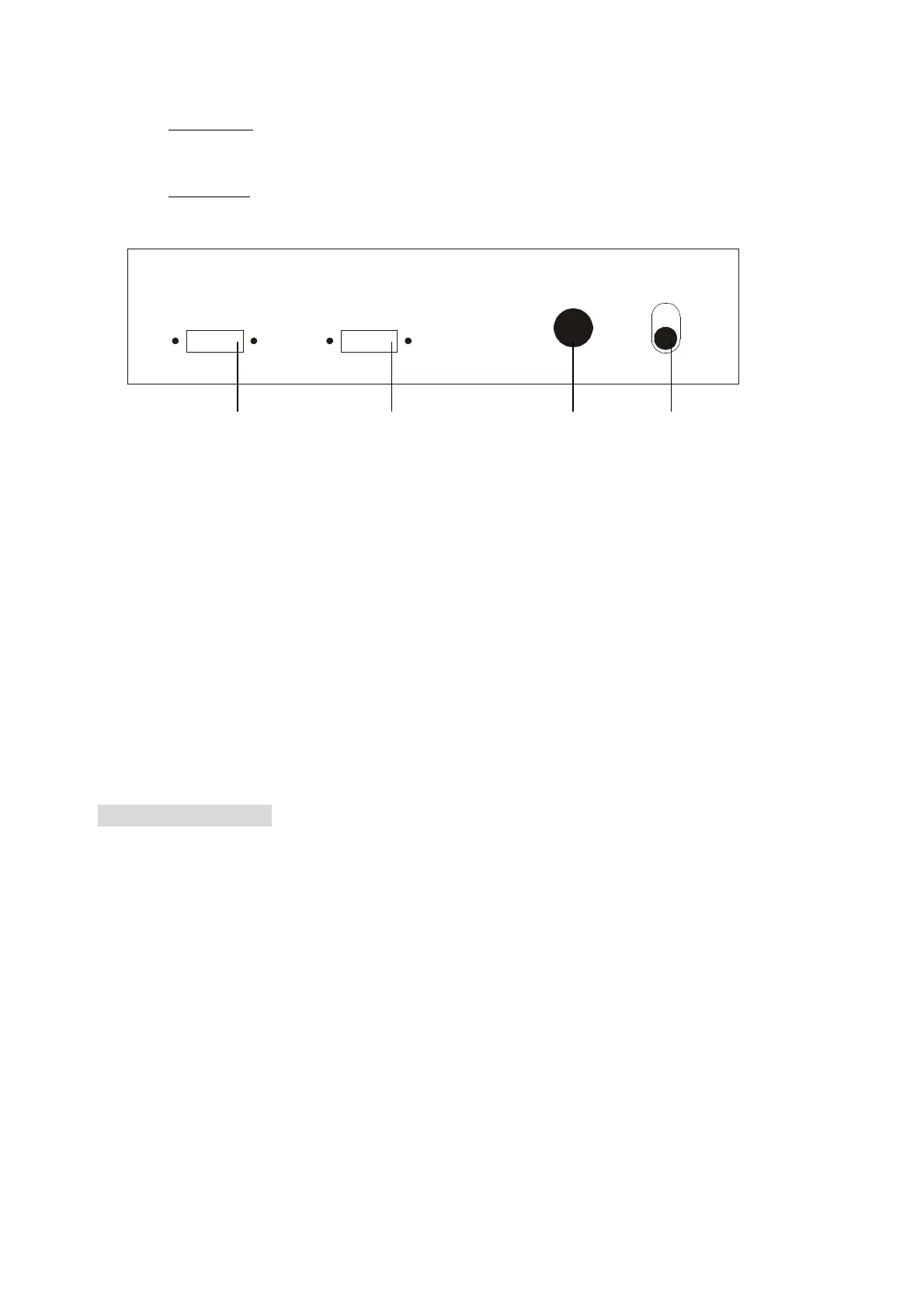

1. Signal output:
This 9-pin com connection is used to connect another LC-8SP relay pack to the
controller unit. Be sure to use only specified ADJ 9-pin com cables. This is used
when all 16 channels will be used
2. Signal input:
Used to link the controller unit with LC-8SP relay pack via a specified 9-pin com
cable or LC Wireless (not included).
3. Circuit breaker:
A built-in 15A circuit breaker designed to protect wiring under heavy or overload
conditions.
4. Power input:
AC 120V--60Hz 15A (max), this will also power the controller unit through the pin
com cable.
3 Operation Guide
3.1 Channel output and controlling functions
3.1.1 8 channel / 16 channel output control:
• 8 channels of output and 16 channels of output are available.
• If you switch the CH1-8/CH1-16 selector switch to “CH1-8” position, then only 8-channels
are active and available for use.
• If you switch the CH1-8/CH1-16 selector switch to “CH1-16” position, then all 16-channels
are active and available for use.
3.1.2 EFFECT / LATCH / FLASH function:
• Turning on the EFFECT Switch under any of the 8 channels, will make that channels output
run normally.
• Turning off the EFFECT Switch under any of the 8 channels, will disable that channels
output.
• Press a Channel button to lock (LATCH) or trigger (FLASH) the channels output. Channel
button functions (LATCH or FLASH) are controlled by the FLASH / LATCH selector.
• When in 16-CH mode, the EFFECT Switch can function as well as in the 8-CH mode. On
the other hand, EFFECT Switch can control two channel outputs at the same time.
