19 PLATINUM FLX™ User Manual
CLAMP MOUNTING

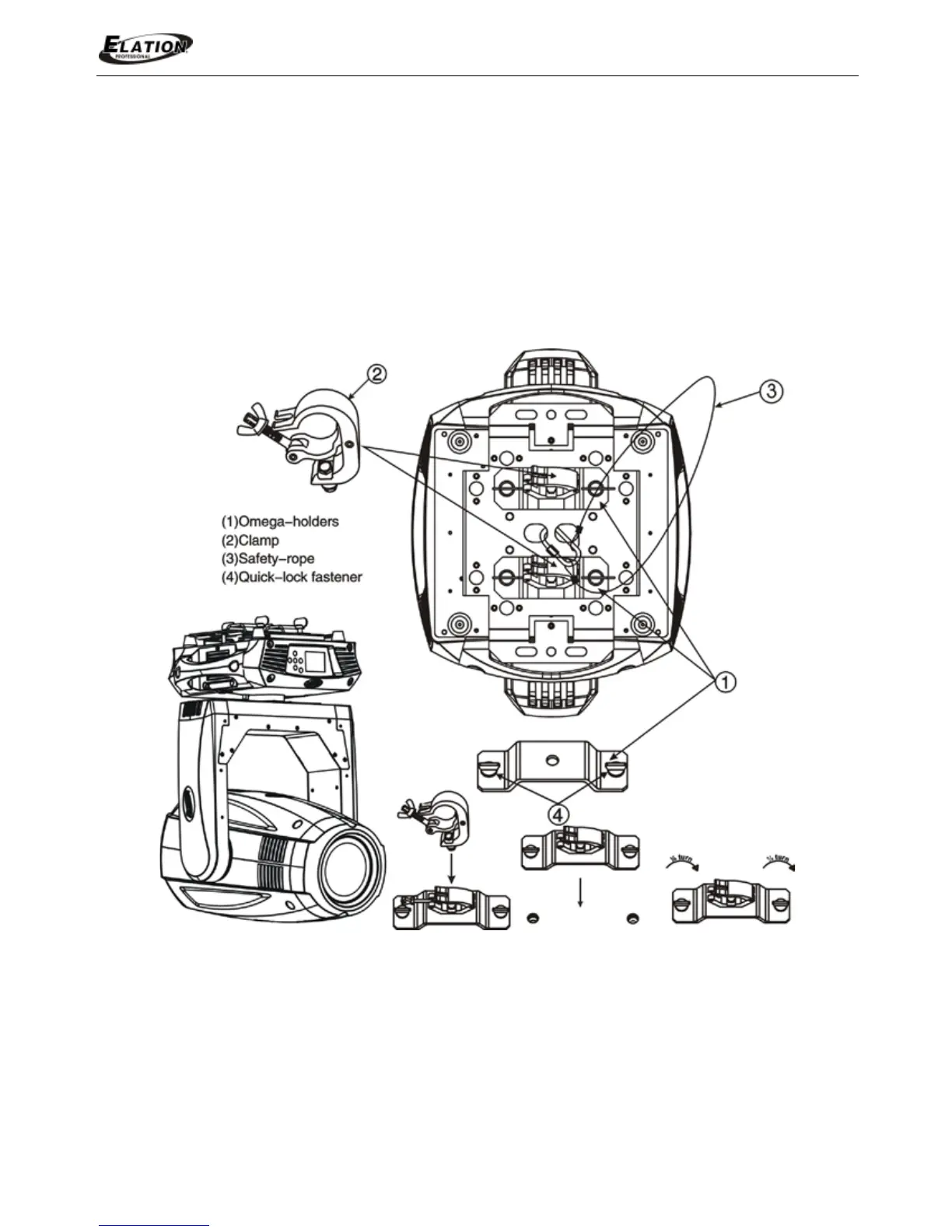

The fixture provides a unique mounting bracket assembly that integrates the bottom
of the base, the included Omega Brackets (x2) and safety cable rigging point in
one unit (see the illustration below). When mounting this fixture to truss be sure to
secure an appropriately rated clamps to the included omega brackets using a M10
screw fitted through the center hole of the Omega Bracket. Be sure to attach an
appropriate Safety Cable to the fixture using the safety cable rigging point
integrated in the base assembly.
SECURING
Regardless of the rigging option you choose for your fixture always be sure to secure
your fixture with a safety cable. The fixture provides a built-in rigging point for a
safety cable on the hanging bracket as illustrated above. Be sure to only use the
designated rigging point for the safety cable and never secure a safety cable to a
carrying handle.
