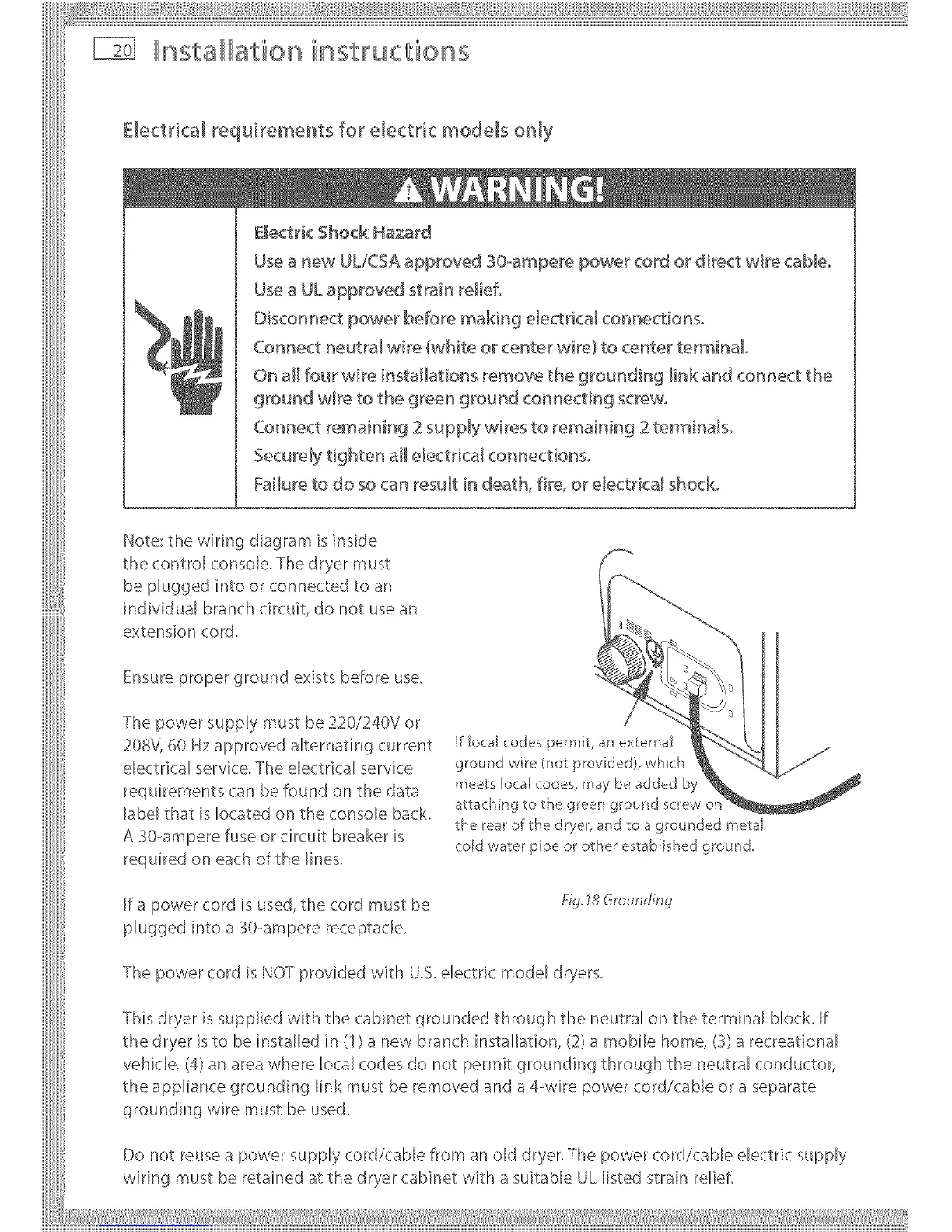

nsta ation instructions
Electrical _equkements for electric modeB only
£1ectrk Shock Hazard
Use a new ULiCSA approved 30-ampere power cord or dkect wke cable°
Use a UL approved strain re[ieL
Disconnect power before making electrical connections°
Connect neutral wire (white or center wire} to center terminal
On aHfour wire installations remove the grounding link and connect the
ground wire to the green ground connecting screw°
Connect remaining 2 supply wires to remaining 2 terminaBo
Securely tighten aHelectrical connections°
Failure to do so can result in death, fire, or e[ectrica_ shock°
Note: the wiring diagram is inside
the control console. The dryer must
be plugged into or connected to an
individual branch circuit, do not use an
extension cord.
Ensure proper ground exists before use.
The power supply must be 220/240V or
208V, 60 Hz approved alternating current
electrical service. The electrical service
requirements can be found on the data
label that is located on the console back.
A 30--ampere fuse or circuit breaker is
required on each of the lines.
If a power cord is used, the cord must be
plugged into a 30--ampere receptacle.
If local codes permit, an external
ground wire (not provided), which
meets ocal codes, may be added by
attaching to the green ground screw o_
the rear of the dryer, and to a grounded metal
cold water pipe or other established ground.
Fig. 18 Grounding
The power cord is NOT provided with U.S. electric model dryers.
This dryer is supplied with the cabinet grounded through the neutral on the terminal block. If
the dryer is to be installed in (1) a new branch installation, (2) a mobile home, (3) a recreational
vehicle, (4) an area where local codes do not permit grounding through the neutral conductor,
the appliance grounding link must be removed and a &°wire power cord/cable or a separate
grounding wire must be used.
Do not reuse a power supply cord/cable from an old dryer. The power cord/caNe electric supply
wiring must be retained at the dryer cabinet with a suitable UL listed strain relief.
