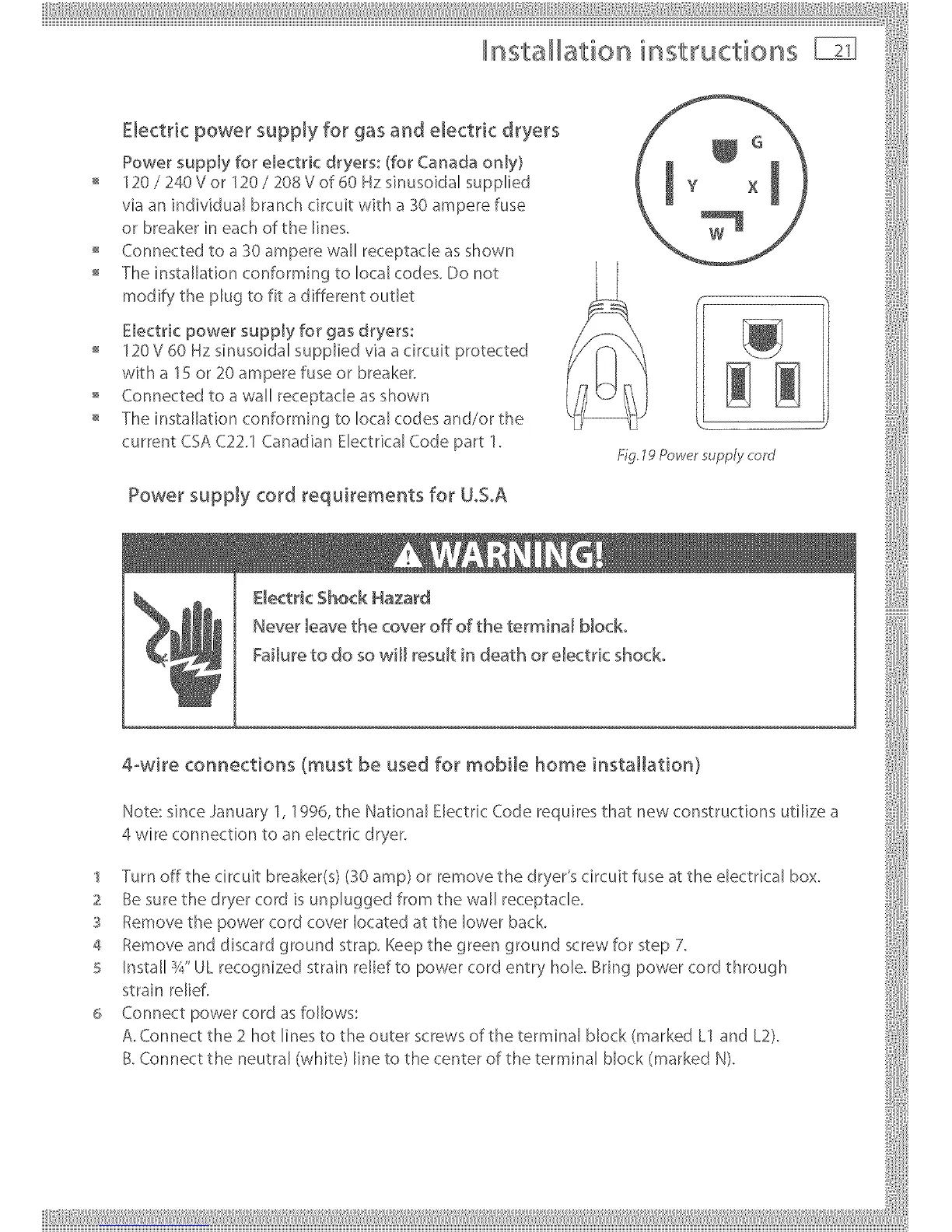

nsta ation instructions
Electric power supply for gas and electric dryers
Power supply for electric dryers: (for Canada onJy}
120 / 240 V or 120 / 208 V of 60 Hz sinusoidal supplied
via an individual branch circuit with a 30 ampere fuse
or breaker in each of the lines.
Connected to a 30 ampere wall receptacle as shown
The installation conforming to local codes. Do not
modify the plug to fit a different outlet
Electric power supply for gas dryers:
120 V 60 Hz sinusoidal supplied via a circuit protected
with a 15 or 20 ampere fuse or breaker.
o Connected to a wall receptacle as shown
The installation conforming to local codes and/or the
current CSA C22.1 Canadian Electrical Code part 1.
Power supply cord requirements for UoSoA
Fig. 1_?Power supply cord
1
E_ectHcShock Hazard
Never _eavethe cover off of the termina_ blocko
Failure to do so will result in death or e_ectric shock°
4-wire connections (must be used for mobile home installation)
Note: since January 1, 1996, the National Electric Code requires that new constructions utilize a
4 wire connection to an electric dryer.
1 Turn off the circuit breaker(s) (30 amp) or remove the dryer's circuit fuse at the electrical box.
2 Be sure the dryer cord is unplugged from the wall receptacle.
3 Remove the power cord cover located at the lower back.
4 Remove and discard ground strap. Keep the green ground screw for step 7.
5 Install %" UL recognized strain relief to power cord entry hole. Bring power cord through
strain relief.
6 Connect power cord as follows:
A. Connect the 2 hot lines to the outer screws of the terminal block (marked L1 and L2).
B. Connect the neutral (white) line to the center of the terminal block (marked N).
