Installation
Selection of installation equipment

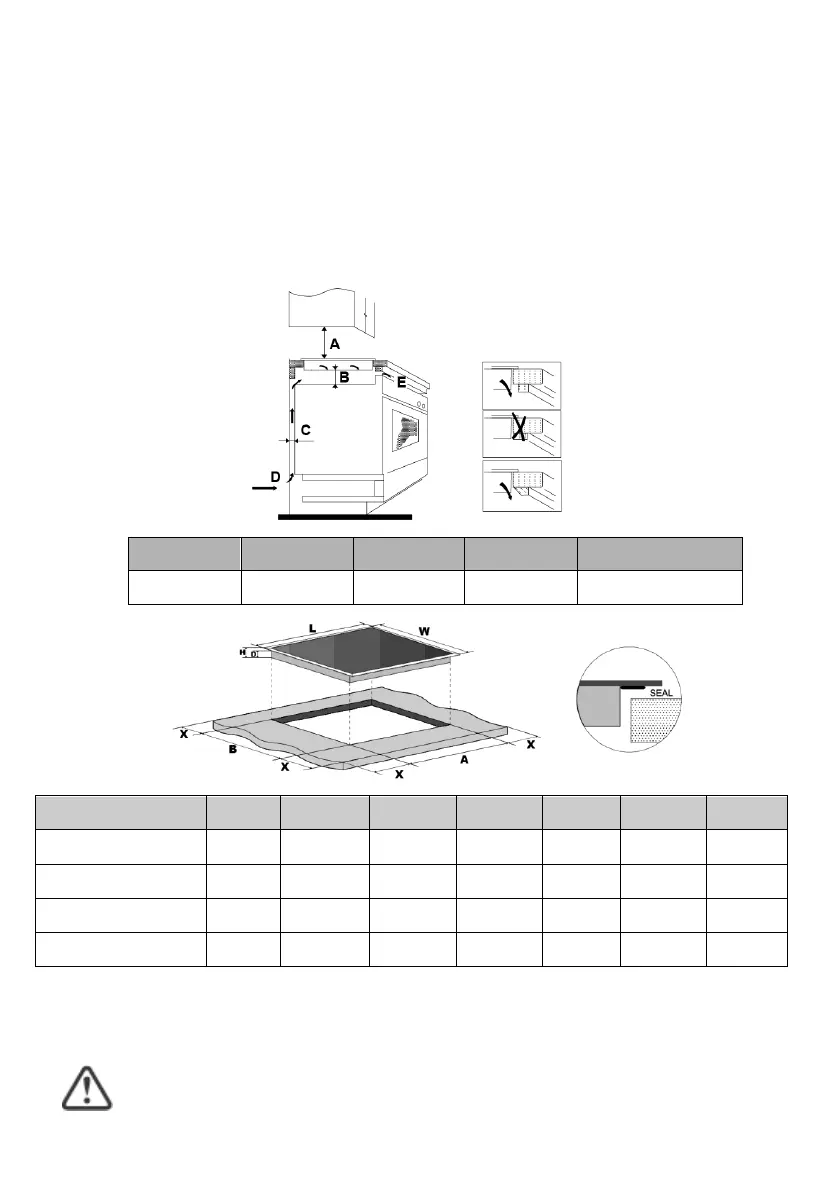

1. Cut out the work surface according to the sizes shown in the drawing. For the
purpose of installation and use, a minimum of 50mm space shall be preserved
around the hole. Be sure that the thickness of the work surface is at least 30mm.
Please select heat-resistant work surface material to avoid larger deformation
caused by the heat radiation from the appliance. Installation as shown below:
A(mm)
B(mm)
C(mm)
D
E
760
50 mini
20 mini
Air intake
Air exit 10 mm
Under any circumstances, make sure the hob is well ventilated and the air inlet and outlet
are not blocked. Ensure the hob is in good working condition as shown above.
Note: The safety distance between the hotplate and the cupboard above the
hotplate should be at least 760mm.
Model L(mm) W(mm) H(mm) D(mm) A(mm) B(mm) X(mm)
EDCH-K3012ST(BK) 290 520 50 46 270 470 Min 50
ECH-K6014ST(BK) 680 520 50 46 560 470 Min 50
ECH-K7012ST(BK) 710 410 50 46 680 380 Min 50
ECH-K7013ST(BK) 710 410 50 46 680 380 Min 50
