PRODUCT & CABINETRY DIMENSIONS
Product and cabinetry dimensions (mm)
OB60S3
OB60SC
A overall height* of product
597
B overall width of product
595
C overall depth of product (excluding handle and knobs)
567
D height of chassis
582
E width of chassis
556
F depth of chassis
545
G
depth of oven frame and control panel
(=distance between front of chassis and front of oven door, excl. knobs)
22
H
depth of oven door when fully open
(measured from front of
control panel)
435
I minimum inside width of cavity
560
I
I
overall width of cavity
600
J inside height of cavity
585
J
I
overall height of cavity
600
K minimum inside depth of cavity
550
L flush fitting cabinetry clearance
22
Note: If installing a cooktop above the oven, ensure adequate clearance is provided for the cooktop as per the cooktop
manufacturer’s instructions.
*All height measurements include mounted feet.
Product and cabinetry dimensions (mm)
OB60B
A overall height* of product
888
B overall width of product
595
C overall depth of product (excluding handle and knobs)
567
D height of chassis
874
E width of chassis
556
F depth of chassis
545
G
depth of oven frame and control panel
(=distance between front of chassis and front of oven door, excl. knobs)
22
H
depth of upper oven door when fully open
(measured from front of control panel)
261
H
I
depth of lower oven door when fully open
(measured from front of control panel)
435
I minimum inside width of cavity
560
I
I
overall width of cavity
600
J inside height of cavity
877
J
I
overall height of cavity
893
K minimum inside depth of cavity
550
L flush fitting cabinetry clearance
22
*All height measurements include mounted feet.

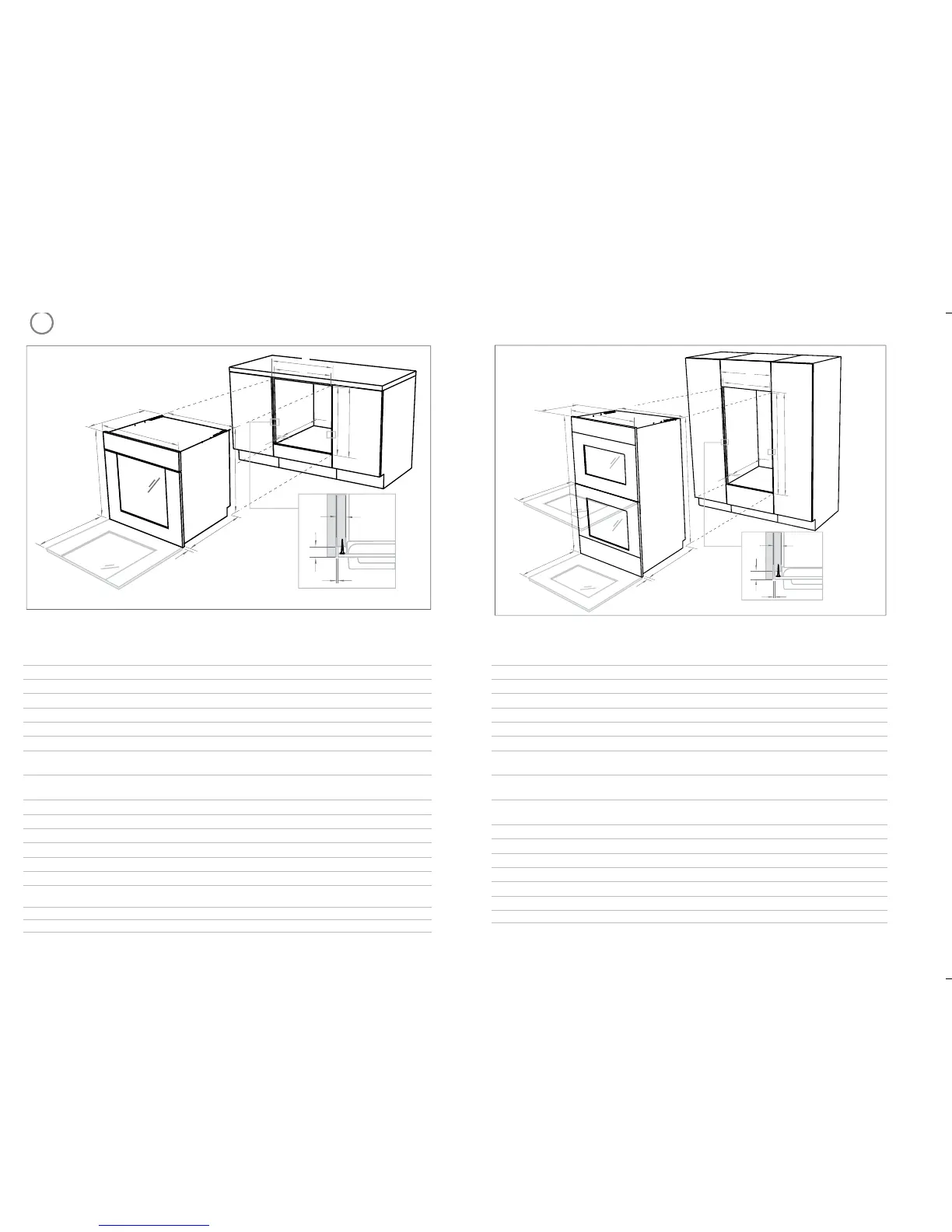

OB60S3 & OB60SC MODELS
Installation diagrams for illustration purposes only
Installation diagrams for illustration purposes only
2.5 mm
16-20 mm
A
C
E
D
F
G
H
J
K
L
L
I
I
I
J
I
B
2.5 mm
16-20 mm
L
A
C
E
D
F
G
H
H
I
J
K
L
I
I
I
J
I
B
OB60B MODELS
