Functional Test
6.9 RCD/FI TEST
RCD test mode becomes available when all lines are correctly
connected and voltage between L and N is in correct range
(230V -15 %; +10%). Short press on RCD button toggles between
different RCD test currents (10mA, 30mA, 100mA, 300mA or
500mA). Long press (~ 1 second) activates RCD test. Upon test
completion, symbol TESTED appears (Fig.09).

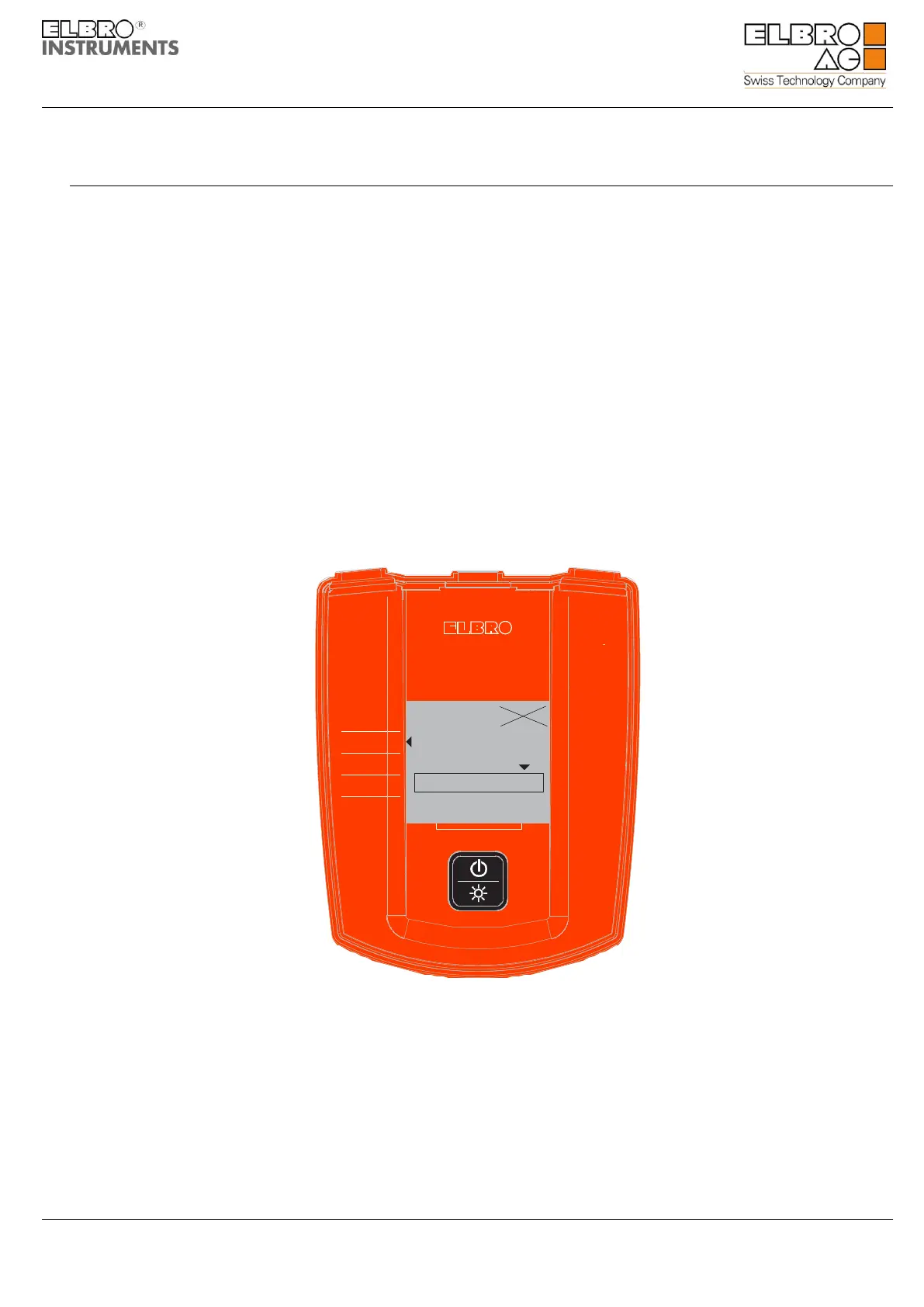

Fig. 09
230V
L
TESTED NOT READY
TESTY2
Test
FI
mA
FI
OPEN
10mA
30mA
100mA
300mA
500mA
