4
F- SPECIAL FUNCTIONS
A
B
C
F1
A
B
C
F3
FEATURES
> power supply = 230vac >output for single phase motor 500w max
> low tension input 12V > output 24 vac (power for 2 couple of photocells)
> extractable self-learning receiver, frequencies 434mhz
> ABS autoextinguishing box with closing screws Ip54 SIZE: 130-45-70 mm
A
B
C
F2

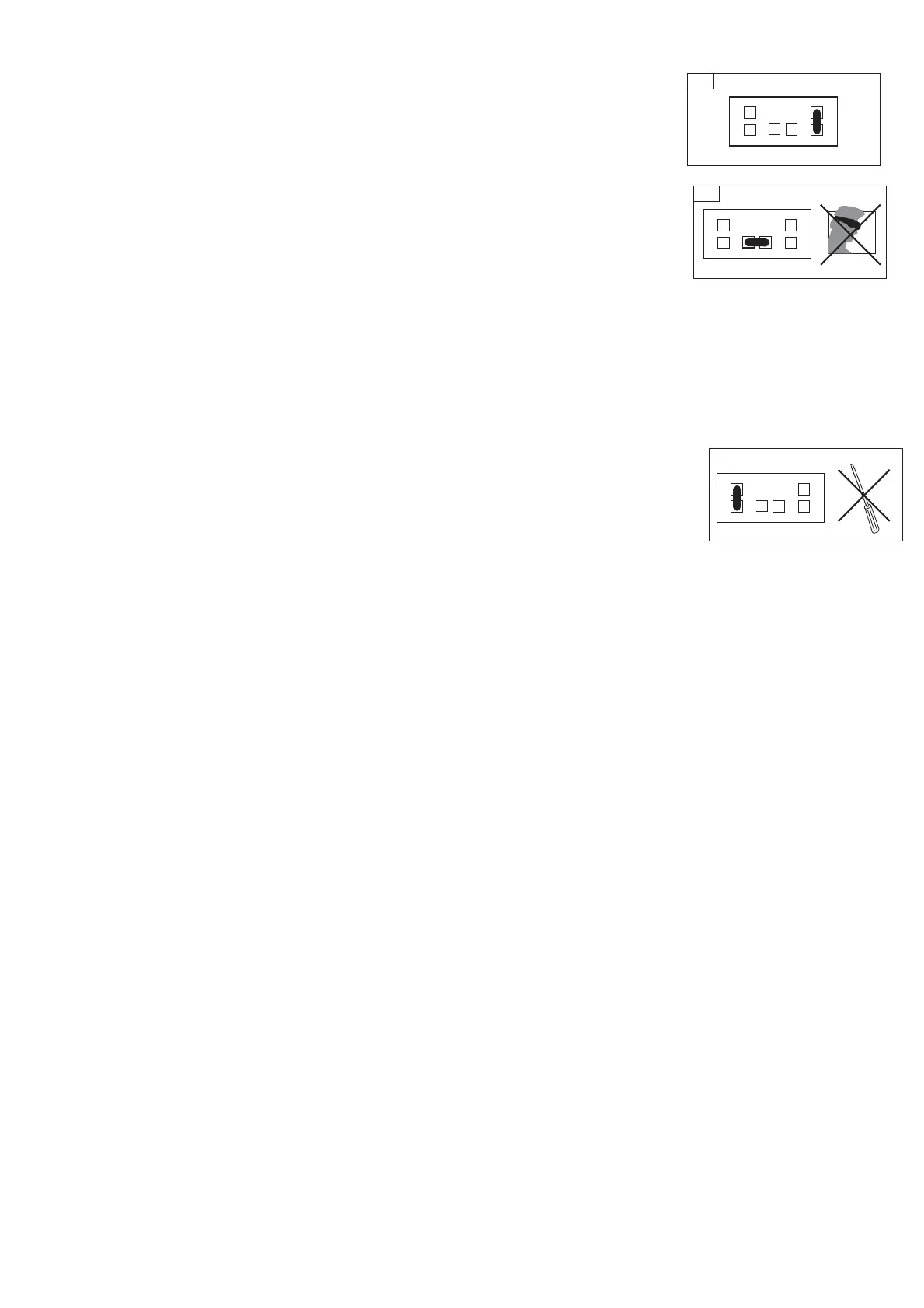

F1- if a solder bridge is across point “C” the control board will operate a
Rolling code, but this should only be done by a qualified person.
F2- to set
Solder a bridge across position “B” as shown in diagram again this should
be done by a qualified person, the customer may use a code to that blocks
any function,the first code memorized will have the theft proof function,the
OK led flashes twice.The board will only accept the theft proof code if the
door is in the closed position.
THEFT PROOF.
When a signal is recived the door will open for a few seconds and then close, this proves that
the theft proof function is activated.
When using the hand set again with the theft proof code the door will operate in the normal way.
- If a rest or code change is attempted while in THEFT PROOF the board will shut
down for its own protection, to start and go back to base code, the bridge on “B” must be
desoldered by a qualified person.
To come out of the theft proof function :
switch off power remove the bridge on “B” with a soldering iron, again
this can only be done by a qualified person, power back on and go
through the set up procedure.
ATTENTION !!!
F3 - TAMPER PROOF
If a bridge is soldered across “A” the tamper proof fuction is activated.
The installer has installed the board to memorize a code that lets you operate the door in a normal
way, but you can not change to another programe without removing bridge “A” again this should be
carried out by a qualified person.
this sets the modul
back to work as normal. This must be carried out by a qualified person.
: If both bridges are in operation, the first code takes preference the tamper proof takes
priority over theft proof, first code and then the second code will activate the board in this order.
A”,
NOTE A-B
- the first code programed will have the function, the OK led will flash 3 times.
- when you send a new code, this function is aborted the OK led will flash 4 times
>> to remove the function:
Switch the power off, remove board from box, remove solder on bridge “
TAMPERING
TAMPER PROOF
WARRANTY
ELCA devices and accessories are guaranteed for a period 24 months after production, whose date is printed
on each items. ELCA will replace or repair its devices, provided that they are returned to our plant.
In order to check the actual functioning of the returned pieces, they will remain the property of the manufacturer.
The warranty does not include damages due to any incorrect use such as : non fulfilment of the instructions detailed
for each device. Moreover, warranty dpes not cover any damage due wrong tension supply and any other reason
for wich the manufacturer cannot be made responsible. Any device returned must be delivered to ELCA with carriage
paid will be back with freight collect. Warranty validity ceases in case of the customer’s non fulfilment of payment.
Rev. 01 Issued by Baglioni Simone 27/10/04
