elco R 600 User Manual

Technical data
6

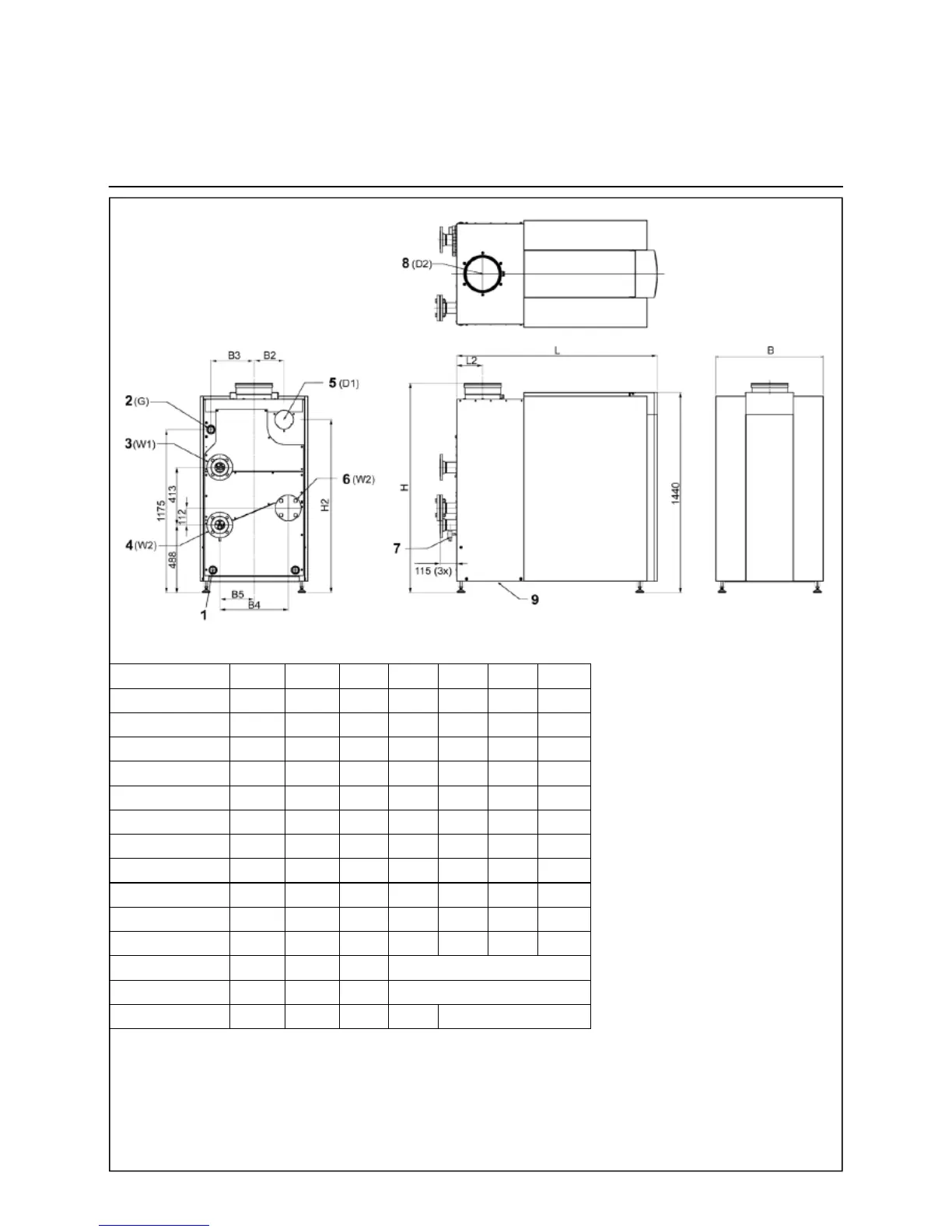

Dimension R601 R602 R603 R604 R605 R606 R607
L mm 1105 1260 1470 1220 1435 1585 1735
L2 mm 127.5 127.5 137.5 137.5 187.5 187.5 187.5
H mm 1480 1480 1500 1500 1500 1500 1500
H2 mm 1120 1130 1130 1150 1245 1245 1245
B mm 670 670 670 770 770 770 770
B2 mm 225 235 235 235 215 215 215
B3 mm 260 260 260 310 310 310 310
B4 mm 260 260 260 490 490 490 490
B5 mm 130 130 130 245 245 245 245
D1 mm (Diam.) 130 150 150 150 200 200 200
D2 mm (Diam.) 150 150 200 200 250 250 250
W1 R" / DN R2" R2" R2" DN65 PN16
W2 R" / DN R2" R2" R2" DN65 PN16
G R R 3/4" R 1" R 1" R 1" R 1 1/2"
1 Electrical connections
2 Gas supply
3 Water supply
4 Water return (Cold)
5 Air Intake (under casing)
6 Water 2nd return (Hot)
7 Boiler water drain valve 1/2"
8 Flue gas Outlet
9 Condensate drain
flexible hose 25mm diam.
