5-13
ARRIVING ON SITE

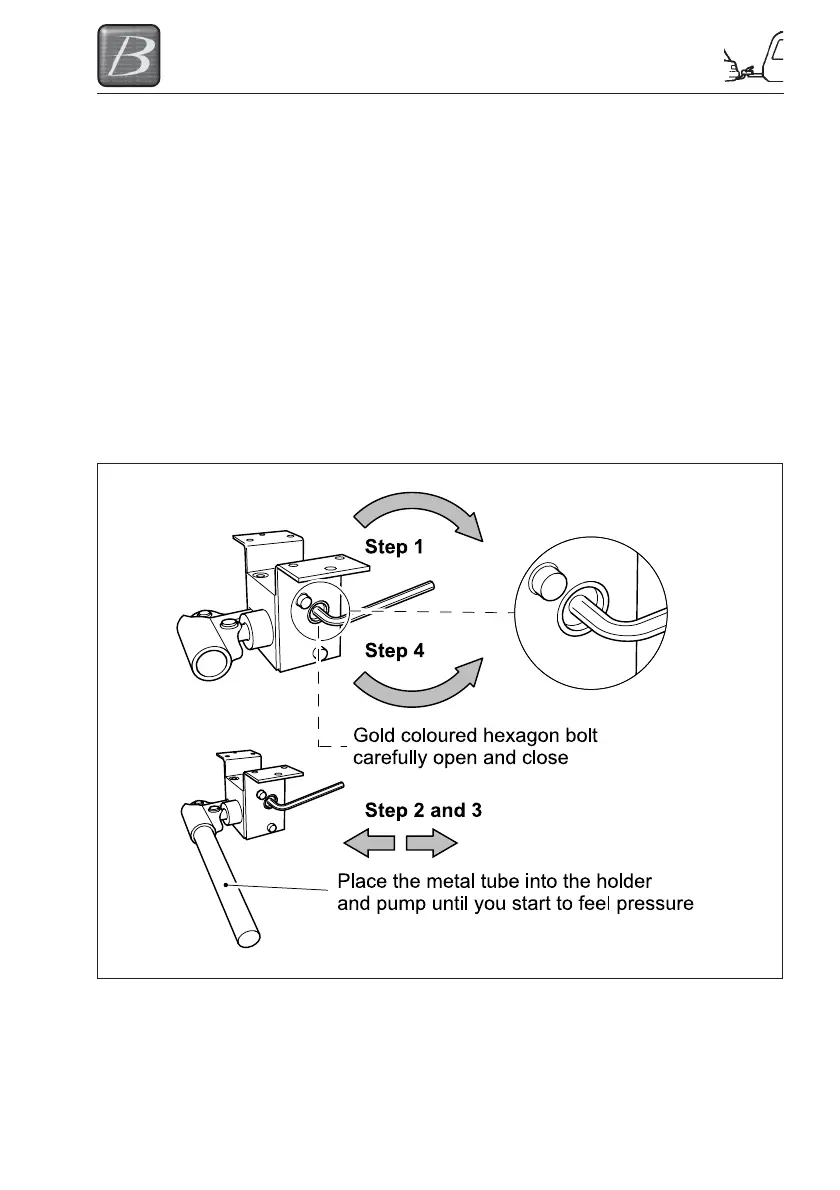

Putting the Emergency pump into use
When actually using the emergency hand pump operation, proceed as follows:
Step 1 Using the allen key, turn the gold hexagon bolt on the emergency hand pump
clockwise to the right (open position).
Step 2 Place the metal tube (handle) into the black holder on the emergency hand pump
assembly.
Pump (back and forth) with the metal tube until all hydraulic jacks are withdrawn.
(all jacks will be withdrawn at the same time)
The moment you feel pressure (resistance) building up during this movement is the
sign the jacks are fully withdrawn.
Step 3 Remove the metal tube from the holder.
Step 4 Using the allen key, turn the gold hexagon bolt on the emergency hand pump
assembly carefully to the left until it locks (closed position).
Attention: carefully turn the lock (closed) position.
