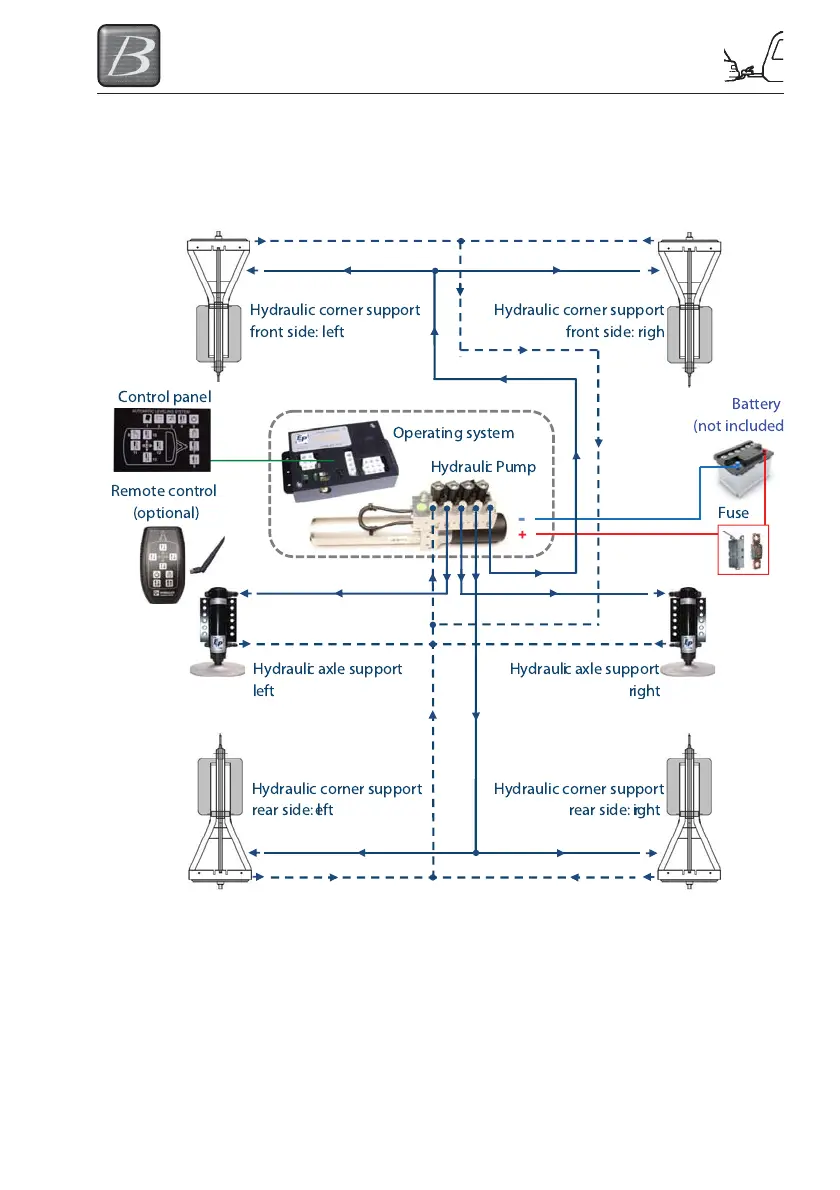

Schematic diagram of the hydraulic levelsystem
Below the schematic view/diagram of the E&P Hydraulics levelsystem.
Hydraulic corner support
front side: left
Hydraulic corner support
front side: righ
Hydraulic corner support
rear side: right
Hydraulic Pump
Operating system
Hydraulic corner support
rear side: left
+
-
Battery
(not included
Control panel
Hydraulic axle support
left
Hydraulic axle support
ri
g
ht
Fuse
Remote control
(o
p
tional)
