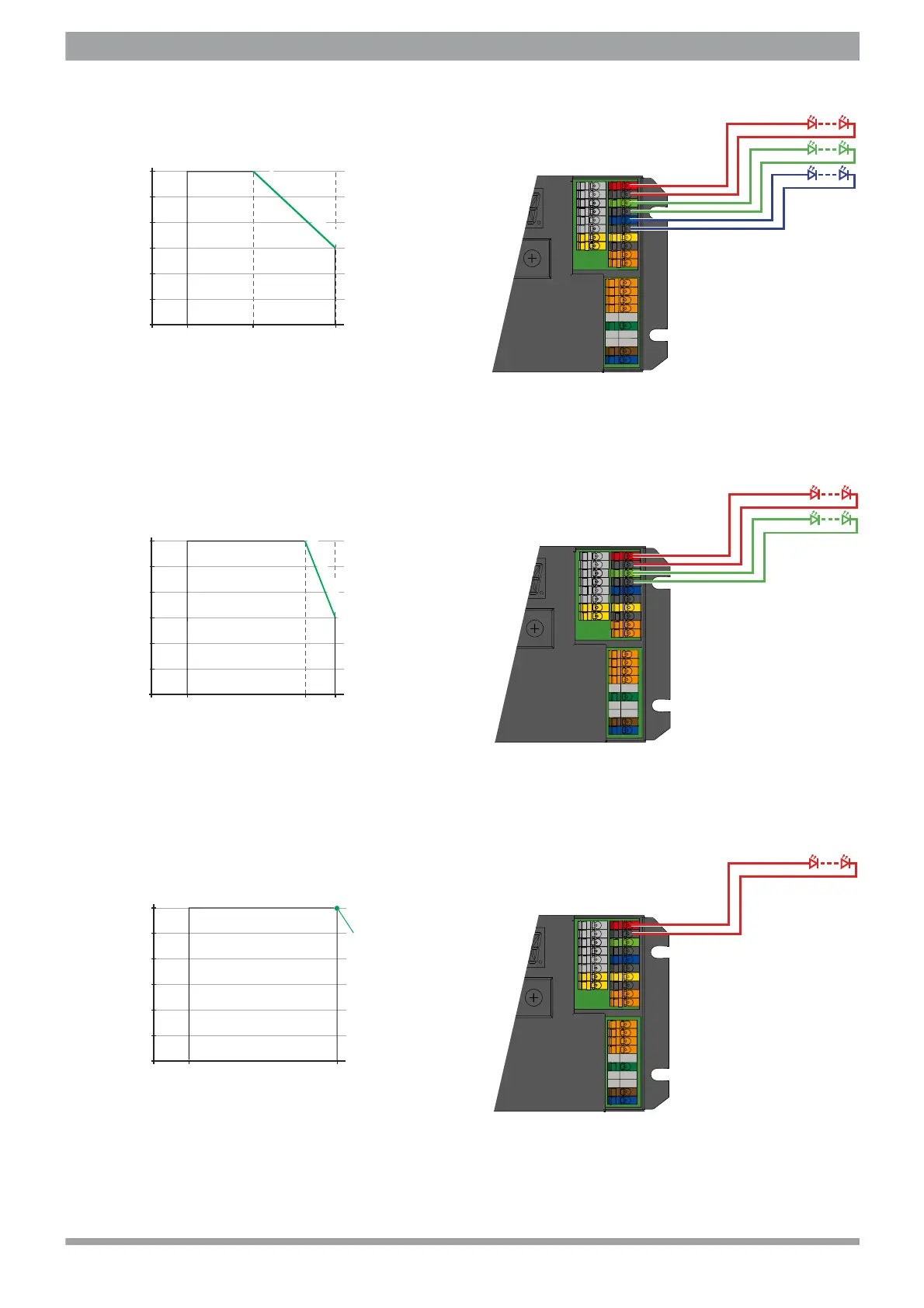

Wiring diagram POWERdrive 106/S (PWR106S1)
Connecting 3 LED groups
Output voltage vs output current for 3 outputs with symmetrical load
Vf
typ
is 57V, LED current ranges from 200mA - 1050mA
Connecting 2 LED groups
Output voltage vs output current for 2 outputs with symmetrical load
Vf
typ
is 57V, LED current ranges from 200mA - 1050mA
Connecting 1 LED group
Output voltage vs output current for 1 output
Vf
typ
is 57V, LED current ranges from 200mA - 1050mA
0
1050
550
200
0
60V
30V
mA
Vf
3 outputs, 100W,

0
1050
200
830
0
60V
30V
Vf
mA
2 outputs, 100W, 
0
1050
200
0
60V
30V
mA
Vf
1 output, 60W
