II. Installation on the wall:

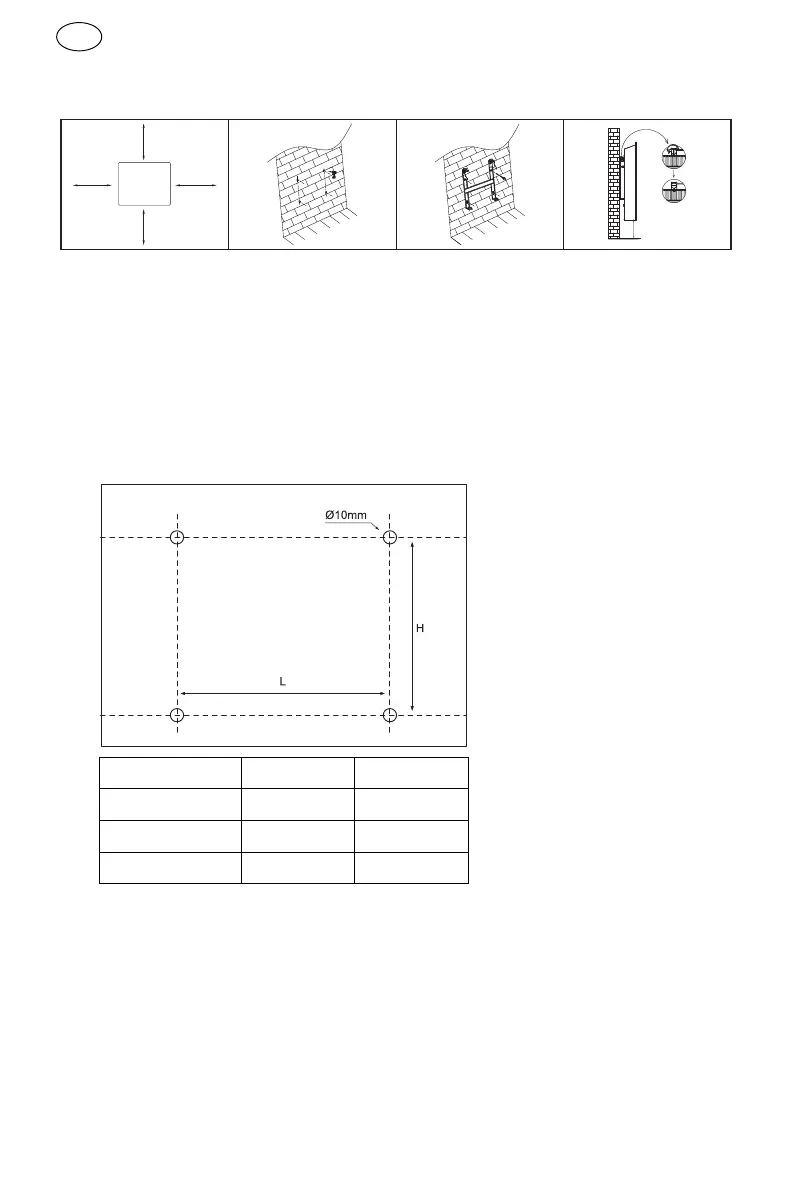

1) Drill holes on the wall according to the instruction inside
the box.
Warning: Be sure to keep the safety distances as
shown on the above drawing.
H / mm
L / mm
EHG01-10C
240
240
EHG01-15C
240
400
EHG01-20C
240
480
2) Fit the fasten tube in the hole and fit the bracket on the
wall with screws.
3) Hang the unit on the bracket gently, after ensuring the
unit is right fixed, turn the lock in the bracket as picture
show.
≥150mm
EHG01-10C
EHG01-15C
EHG01-20C
≥150mm
≥150mm≥150mm
≥150mm
