5
When wiring the plug, ensure that all strands of wire are
securely retained in each terminal. Do not forget to
tighten the mains lead clamp on the plug. If your
electricity supply point has only two pin socket outlets,
or if you are in doubt, consult a qualified electrician.
Should the mains lead ever require replacement, it is
essential that this operation be carried out by a qualified
electrician and should only be replaced with a flexible
cord of the same size i.e. 1,5 mm
2
.
After replacement of a fuse in the plug, the fuse cover
must be reffited. If the fuse cover is lost, the plug must
not be used until a replacement cover is obtained. The
colour of the correct replacement fuse cover is that of
the coloured insert in the base of the plug or the colour
that is embossed in words in the base of the fuse recess
or elsewhere on the plug. Always state this colour when
ordering a replacement fuse cover.
Only 13 amp replacement fuses which are ASTA
approved to B.S. 1362 should be fitted.
Note: Socket outlets are not permitted in bathrooms,
neither should any provision be made for connecting
moveable electrical appliances. No stationary appliance
is to be installed within reach of a person using bath or
shower.
In the case of permanent connection it is necessary that
you install a double pole switch between the appliance
and the electricity supply (mains), with a minimum gap
of 3 mm between the switch contacts and of a type
suitable for the required load in compliance with the
current electrical regulations.
The switch must not break the yellow and green earth
cable at any point.
Any electrical work required to install this
appliance should be carried out by a qualified
electrician or competent person.
Before switching on, make sure the electricity
supply voltage is the same as that indicated on the
appliance rating plate(the rating plate is fixed to
the rear of the appliance).
The flexible mains lead is supplied connected to a B.S.
1363 fused plug having a fuse of 13 amp capacity.
Should this plug not fit the socket outlets in your home,
it should be cut off and replaced with a suitable plug,
following the procedure outlined below-
WARNING
Such a plug cannot be used for any other
appliance and should therefore be properly
disposed of and not left where children might find
it and plug it into a supply socket - with the
obvious consequent danger.
N.B. We recommend the use of good quality plugs and
wall sockets that can be switched off when the machine
is not in use.

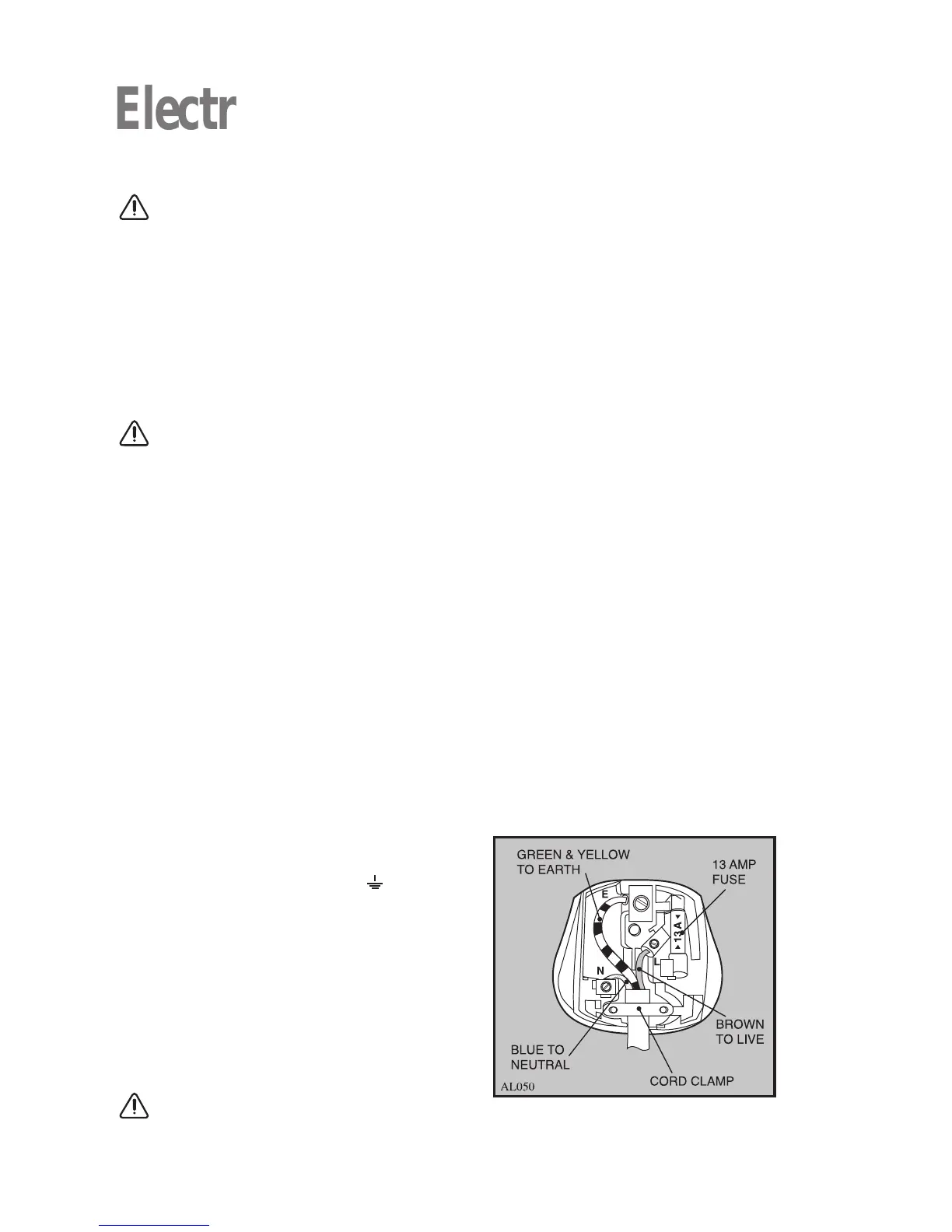

IMPORTANT: The wires in the mains lead fitted to
this appliance are coloured in accordance with the
following code:
GREEN AND YELLOW - EARTH
BLUE - NEUTRAL
BROWN - LIVE
As the colours of the wires in the mains lead of this
appliance may not correspond with the coloured
markings identifying the terminals in your plug, proceed
as follows:
The wire which is coloured green and yellow must be
connected to the terminals in the plug which is marked
with the letter E or by the earth symbol
or coloured
green or green and yellow.
The wire which is coloured blue must be connected to
the terminal which is marked with the letter N or
coloured black.
The wire which is coloured brown must be connected to
the terminal which is marked with the letter L or
coloured red.
WARNING - THIS APPLIANCE MUST BE
EARTHED.
