INSTALLATION
1. MOUNT THE CHASSIS ON THE WALL
Before mounting chassis on wall, identify mirror location on wall. Drill marks should be measured
from the edge of the mirror NOT FROM EDGE OF CHASSIS. There are multiple mounting holes that can be
chosen from to accommodate mounting locations. The chassis shall be installed with a minimum of (4) 1/4” x
1-1/2” lag screws or other engineering approved fasteners. Use wall anchors or reinforced backing areas to support
chassis. See individual product specifications for mounting hole locations.
3. WIRING DETAILS
Please note, all electrical installations should be carried out by a fully qualified electrician in conformance with the
National Electrical Code and local building codes.
4. POWER CONNECTION

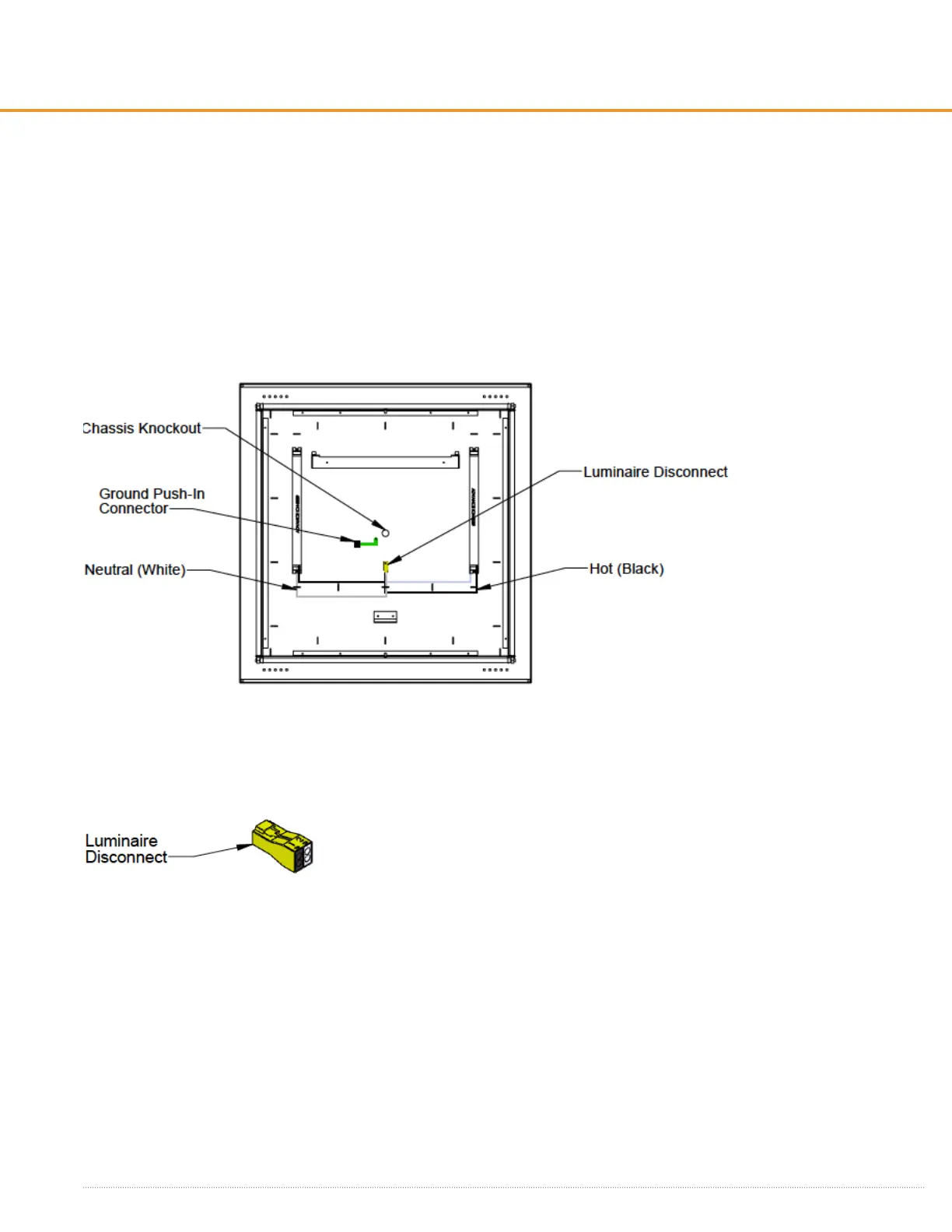

Before proceeding to power supply wiring, make sure the MC cable is brought in through the wall and into the
chassis knockout. Insert ground wire in the grounded connector. Insert the hot and neutral wires into the luminaire
disconnect. The hot wire is inserted into the black port (number 1) and the neutral wire is inserted into the white
port (number 2).
3
THERE’S ONLY ONE™ ELECTRIC MIRROR® | E sales@electricmirror.com | T +1 425 776-4946 | F +1 425-491-8200 | W www.electricmirror.com
2. INSTALL LAMPS
Lamps should fit within the lamp holders provided in chassis. Rotate lamps to lock into place.
