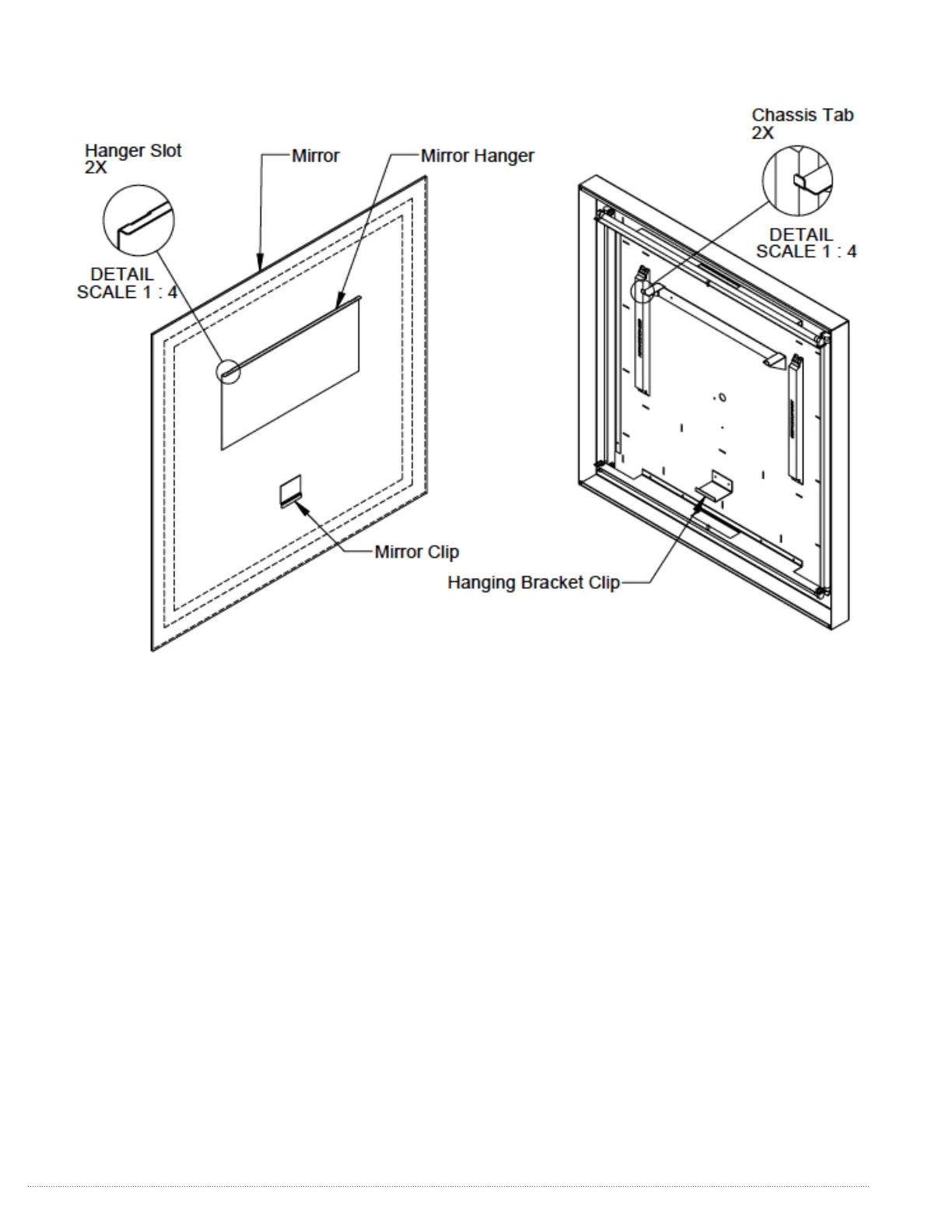

5. MIRROR MOUNTING
After wiring process is completed, mirror is ready to be hung on the chassis. The weight of the mirror is supported
at the top of the chassis. The mirror clip, at the bottom of mirror, is used to keep the mirror from moving away
from the wall. Hang mirror on chassis by aligning tabs on chassis through mirror hanger slots while holding the
mirror against the chassis. Slide the mirror down inserting the chassis tabs into the hanger slots. Make sure both
tabs are engaged through hanger slots and the mirror clip overlaps the hanging bracket clip.
