ELECTRO FREEZE Model CS4

184964-04 3/04 15

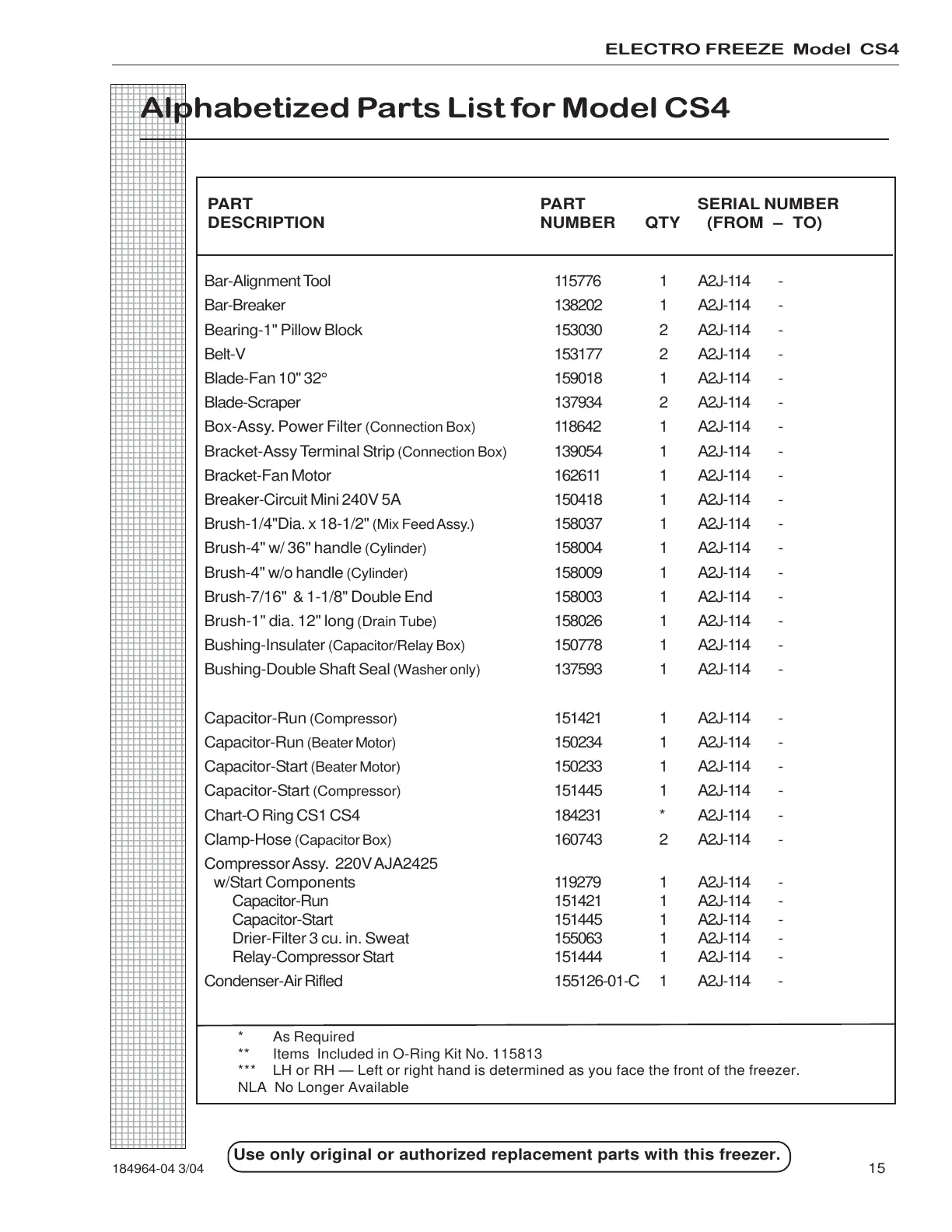

Alphabetized Parts List for Model CS4

Use only original or authorized replacement parts with this freezer.

PART PART SERIAL NUMBER

DESCRIPTION NUMBER QTY (FROM – TO)

* As Required

** Items Included in O-Ring Kit No. 115813

*** LH or RH — Left or right hand is determined as you face the front of the freezer.

NLA No Longer Available

Bar-Alignment Tool 115776 1 A2J-114 -

Bar-Breaker 138202 1 A2J-114 -

Bearing-1" Pillow Block 153030 2 A2J-114 -

Belt-V 153177 2 A2J-114 -

Blade-Fan 10" 32° 159018 1 A2J-114 -

Blade-Scraper 137934 2 A2J-114 -

Box-Assy. Power Filter

(Connection Box)

118642 1 A2J-114 -

Bracket-Assy Terminal Strip

(Connection Box)

139054 1 A2J-114 -

Bracket-Fan Motor 162611 1 A2J-114 -

Breaker-Circuit Mini 240V 5A 150418 1 A2J-114 -

Brush-1/4"Dia. x 18-1/2"

(Mix Feed Assy.)

158037 1 A2J-114 -

Brush-4" w/ 36" handle

(Cylinder)

158004 1 A2J-114 -

Brush-4" w/o handle

(Cylinder)

158009 1 A2J-114 -

Brush-7/16" & 1-1/8" Double End 158003 1 A2J-114 -

Brush-1" dia. 12" long

(Drain Tube)

158026 1 A2J-114 -

Bushing-Insulater

(Capacitor/Relay Box)

150778 1 A2J-114 -

Bushing-Double Shaft Seal

(Washer only)

137593 1 A2J-114 -

Capacitor-Run

(Compressor)

151421 1 A2J-114 -

Capacitor-Run

(Beater Motor)

150234 1 A2J-114 -

Capacitor-Start

(Beater Motor)

150233 1 A2J-114 -

Capacitor-Start

(Compressor)

151445 1 A2J-114 -

Chart-O Ring CS1 CS4 184231 * A2J-114 -

Clamp-Hose

(Capacitor Box)

160743 2 A2J-114 -

Compressor Assy. 220V AJA2425

w/Start Components 119279 1 A2J-114 -

Capacitor-Run 151421 1 A2J-114 -

Capacitor-Start 151445 1 A2J-114 -

Drier-Filter 3 cu. in. Sweat 155063 1 A2J-114 -

Relay-Compressor Start 151444 1 A2J-114 -

Condenser-Air Rifled 155126-01-C 1 A2J-114 -
