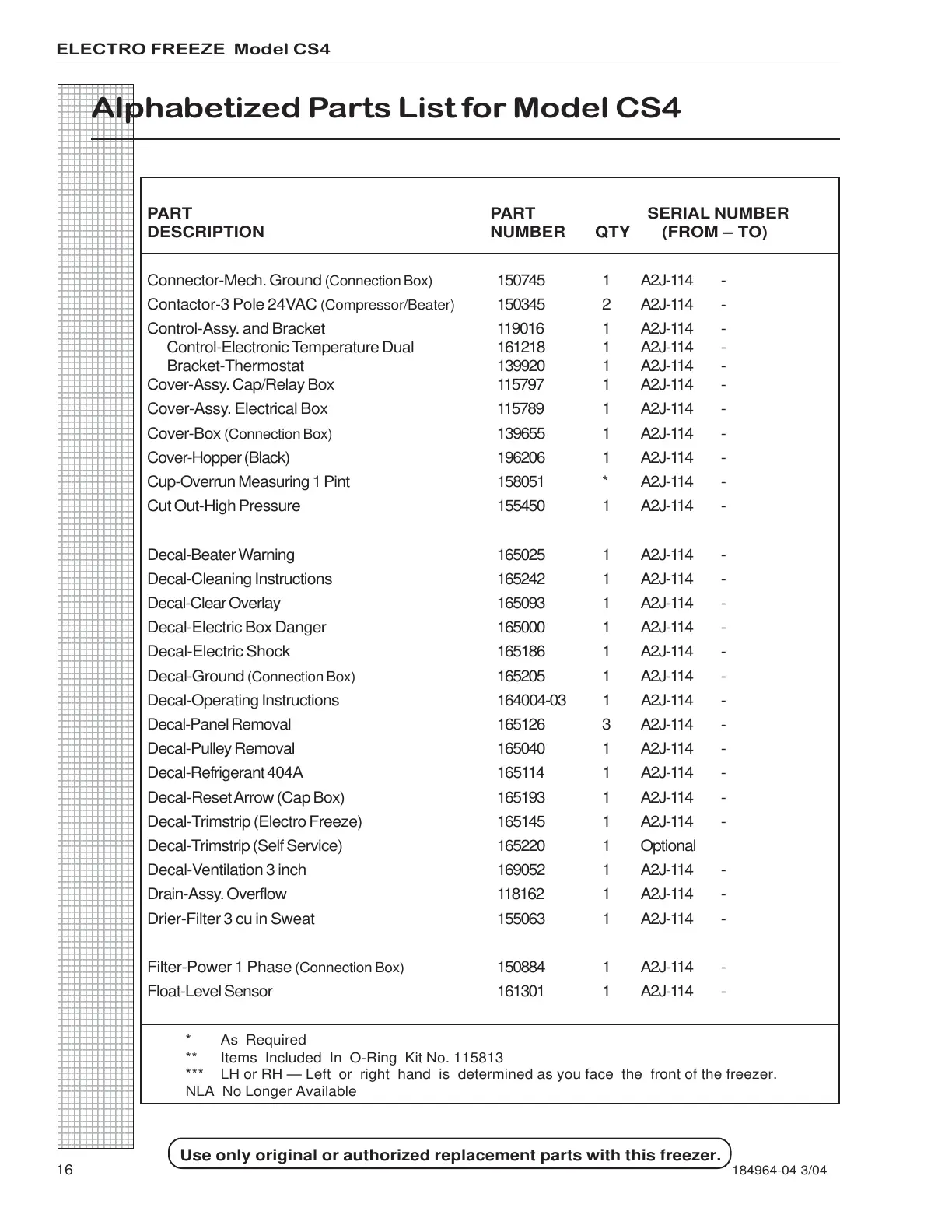

ELECTRO FREEZE Model CS4

16 184964-04 3/04

Alphabetized Parts List for Model CS4

Use only original or authorized replacement parts with this freezer.

* As Required

** Items Included In O-Ring Kit No. 115813

*** LH or RH — Left or right hand is determined as you face the front of the freezer.

NLA No Longer Available

PART PART SERIAL NUMBER

DESCRIPTION NUMBER QTY (FROM – TO)

Connector-Mech. Ground

(Connection Box)

150745 1 A2J-114 -

Contactor-3 Pole 24VAC

(Compressor/Beater)

150345 2 A2J-114 -

Control-Assy. and Bracket 119016 1 A2J-114 -

Control-Electronic Temperature Dual 161218 1 A2J-114 -

Bracket-Thermostat 139920 1 A2J-114 -

Cover-Assy. Cap/Relay Box 115797 1 A2J-114 -

Cover-Assy. Electrical Box 115789 1 A2J-114 -

Cover-Box

(Connection Box)

139655 1 A2J-114 -

Cover-Hopper (Black) 196206 1 A2J-114 -

Cup-Overrun Measuring 1 Pint 158051 * A2J-114 -

Cut Out-High Pressure 155450 1 A2J-114 -

Decal-Beater Warning 165025 1 A2J-114 -

Decal-Cleaning Instructions 165242 1 A2J-114 -

Decal-Clear Overlay 165093 1 A2J-114 -

Decal-Electric Box Danger 165000 1 A2J-114 -

Decal-Electric Shock 165186 1 A2J-114 -

Decal-Ground

(Connection Box)

165205 1 A2J-114 -

Decal-Operating Instructions 164004-03 1 A2J-114 -

Decal-Panel Removal 165126 3 A2J-114 -

Decal-Pulley Removal 165040 1 A2J-114 -

Decal-Refrigerant 404A 165114 1 A2J-114 -

Decal-Reset Arrow (Cap Box) 165193 1 A2J-114 -

Decal-Trimstrip (Electro Freeze) 165145 1 A2J-114 -

Decal-Trimstrip (Self Service) 165220 1 Optional

Decal-Ventilation 3 inch 169052 1 A2J-114 -

Drain-Assy. Overflow 118162 1 A2J-114 -

Drier-Filter 3 cu in Sweat 155063 1 A2J-114 -

Filter-Power 1 Phase

(Connection Box)

150884 1 A2J-114 -

Float-Level Sensor 161301 1 A2J-114 -
