ELECTRO FREEZE Model CS4

184964-04 3/04 17

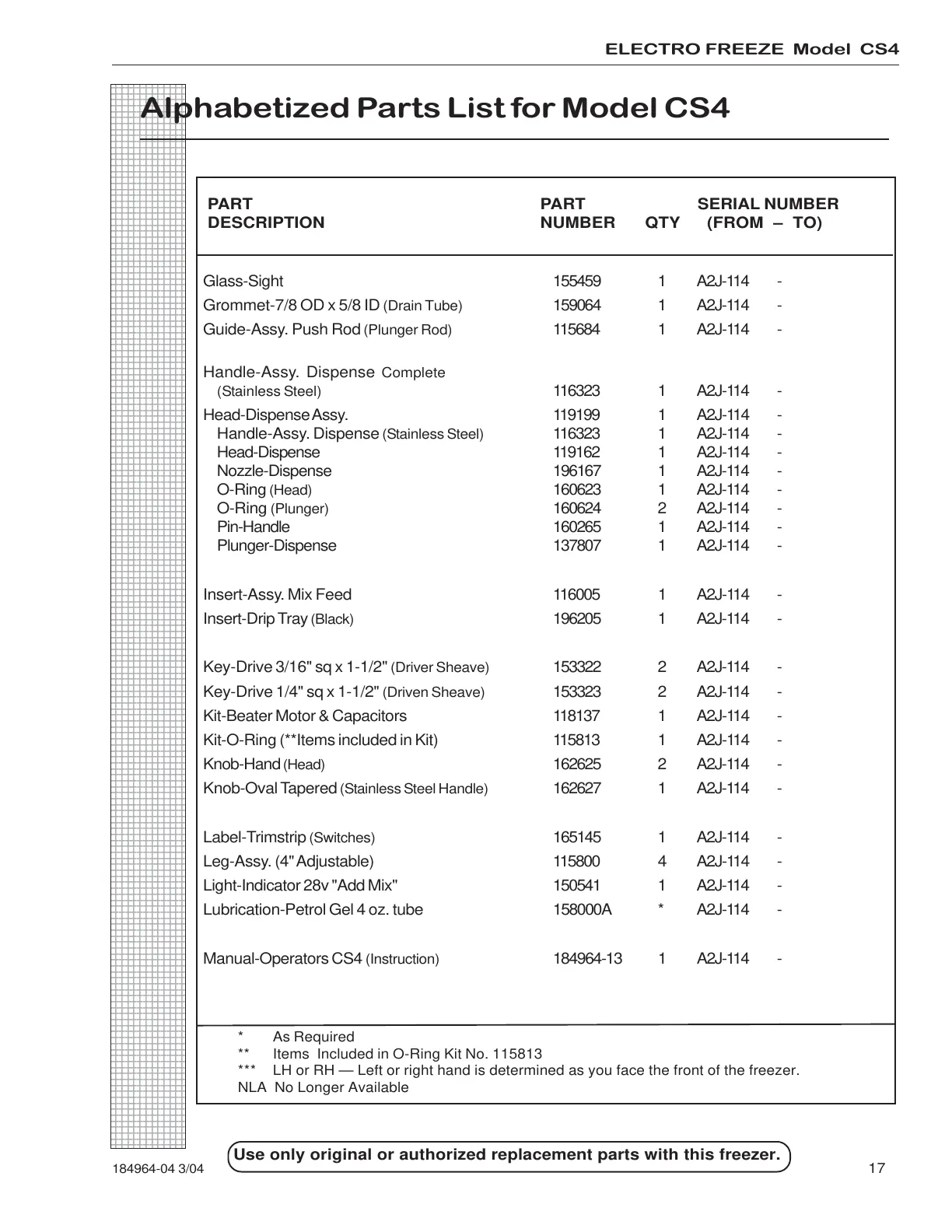

Alphabetized Parts List for Model CS4

Use only original or authorized replacement parts with this freezer.

PART PART SERIAL NUMBER

DESCRIPTION NUMBER QTY (FROM – TO)

* As Required

** Items Included in O-Ring Kit No. 115813

*** LH or RH — Left or right hand is determined as you face the front of the freezer.

NLA No Longer Available

Glass-Sight 155459 1 A2J-114 -

Grommet-7/8 OD x 5/8 ID

(Drain Tube)

159064 1 A2J-114 -

Guide-Assy. Push Rod

(Plunger Rod)

115684 1 A2J-114 -

Handle-Assy. Dispense

Complete

(Stainless Steel)

116323 1 A2J-114 -

Head-Dispense Assy. 119199 1 A2J-114 -

Handle-Assy. Dispense

(Stainless Steel)

116323 1 A2J-114 -

Head-Dispense 119162 1 A2J-114 -

Nozzle-Dispense 196167 1 A2J-114 -

O-Ring

(Head)

160623 1 A2J-114 -

O-Ring

(Plunger)

160624 2 A2J-114 -

Pin-Handle 160265 1 A2J-114 -

Plunger-Dispense 137807 1 A2J-114 -

Insert-Assy. Mix Feed 116005 1 A2J-114 -

Insert-Drip Tray

(Black)

196205 1 A2J-114 -

Key-Drive 3/16" sq x 1-1/2"

(Driver Sheave)

153322 2 A2J-114 -

Key-Drive 1/4" sq x 1-1/2"

(Driven Sheave)

153323 2 A2J-114 -

Kit-Beater Motor & Capacitors 118137 1 A2J-114 -

Kit-O-Ring (**Items included in Kit) 115813 1 A2J-114 -

Knob-Hand

(Head)

162625 2 A2J-114 -

Knob-Oval Tapered

(Stainless Steel Handle)

162627 1 A2J-114 -

Label-Trimstrip

(Switches)

165145 1 A2J-114 -

Leg-Assy. (4" Adjustable) 115800 4 A2J-114 -

Light-Indicator 28v "Add Mix" 150541 1 A2J-114 -

Lubrication-Petrol Gel 4 oz. tube 158000A * A2J-114 -

Manual-Operators CS4

(Instruction)

184964-13 1 A2J-114 -
