ELECTRO FREEZE Model CS4

18 184964-04 3/04

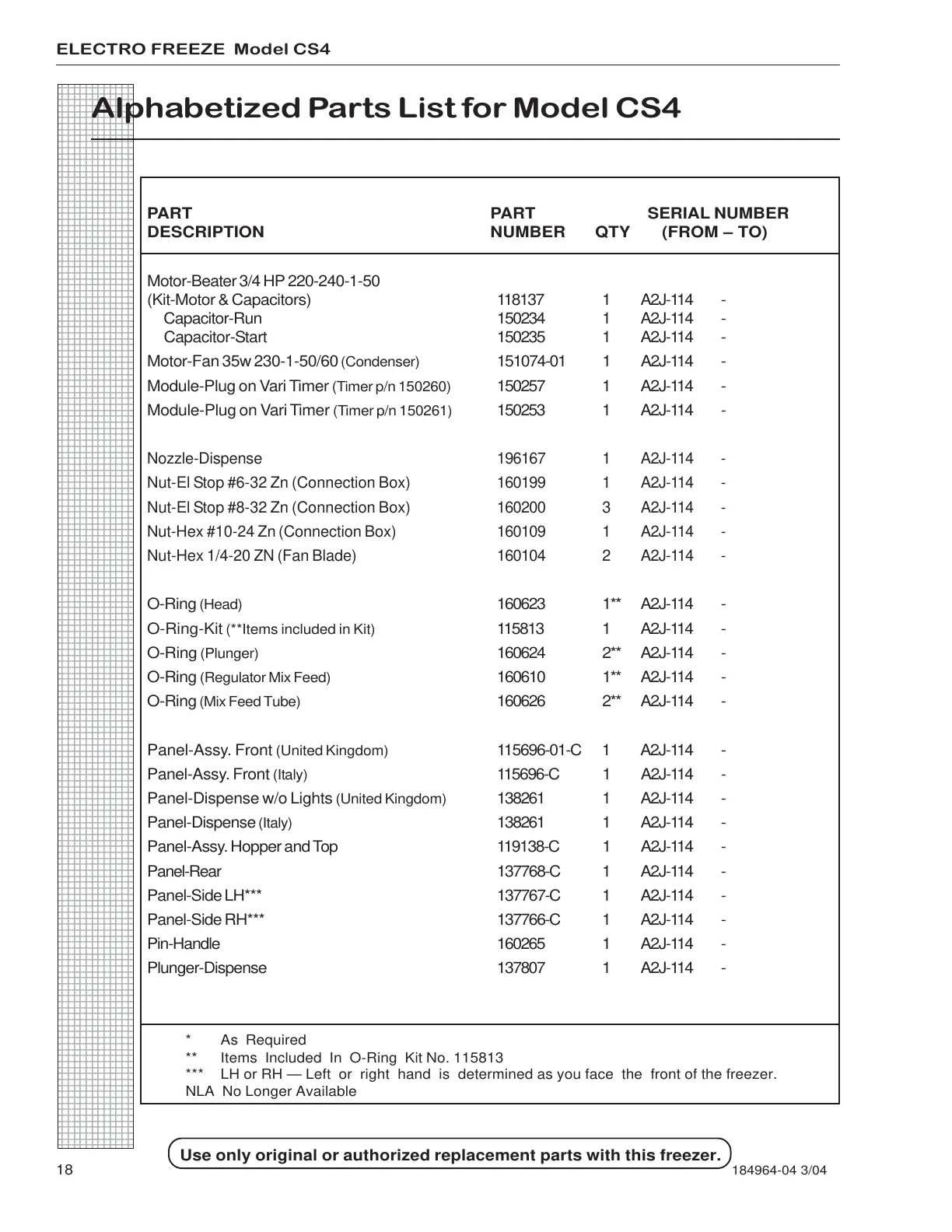

Alphabetized Parts List for Model CS4

Use only original or authorized replacement parts with this freezer.

* As Required

** Items Included In O-Ring Kit No. 115813

*** LH or RH — Left or right hand is determined as you face the front of the freezer.

NLA No Longer Available

PART PART SERIAL NUMBER

DESCRIPTION NUMBER QTY (FROM – TO)

Motor-Beater 3/4 HP 220-240-1-50

(Kit-Motor & Capacitors) 118137 1 A2J-114 -

Capacitor-Run 150234 1 A2J-114 -

Capacitor-Start 150235 1 A2J-114 -

Motor-Fan 35w 230-1-50/60

(Condenser)

151074-01 1 A2J-114 -

Module-Plug on Vari Timer

(Timer p/n 150260)

150257 1 A2J-114 -

Module-Plug on Vari Timer

(Timer p/n 150261)

150253 1 A2J-114 -

Nozzle-Dispense 196167 1 A2J-114 -

Nut-El Stop #6-32 Zn (Connection Box) 160199 1 A2J-114 -

Nut-El Stop #8-32 Zn (Connection Box) 160200 3 A2J-114 -

Nut-Hex #10-24 Zn (Connection Box) 160109 1 A2J-114 -

Nut-Hex 1/4-20 ZN (Fan Blade) 160104 2 A2J-114 -

O-Ring

(Head)

160623 1** A2J-114 -

O-Ring-Kit

(**Items included in Kit)

115813 1 A2J-114 -

O-Ring

(Plunger)

160624 2** A2J-114 -

O-Ring

(Regulator Mix Feed)

160610 1** A2J-114 -

O-Ring

(Mix Feed Tube)

160626 2** A2J-114 -

Panel-Assy. Front

(United Kingdom)

115696-01-C 1 A2J-114 -

Panel-Assy. Front

(Italy)

115696-C 1 A2J-114 -

Panel-Dispense w/o Lights

(United Kingdom)

138261 1 A2J-114 -

Panel-Dispense

(Italy)

138261 1 A2J-114 -

Panel-Assy. Hopper and Top 119138-C 1 A2J-114 -

Panel-Rear 137768-C 1 A2J-114 -

Panel-Side LH*** 137767-C 1 A2J-114 -

Panel-Side RH*** 137766-C 1 A2J-114 -

Pin-Handle 160265 1 A2J-114 -

Plunger-Dispense 137807 1 A2J-114 -
