INSTALLATION \ WIRING

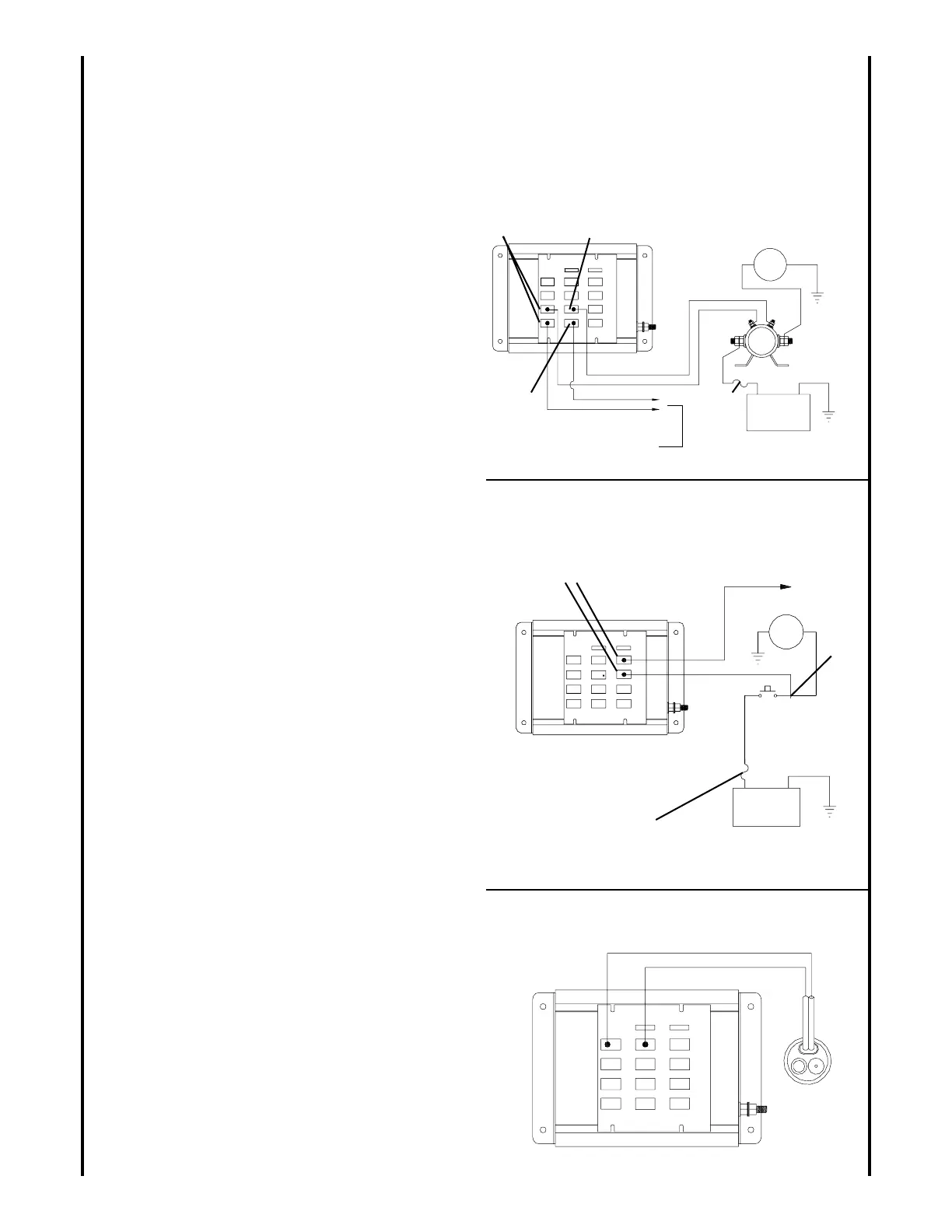

Single Button operation -
Both toilet and electro scan are operated by one of the
following options:
Option #1:
NOTES:
• Use only a solenoid/relay with an isolated coil Raritan
part number CDS* (*specify voltage)
• Connect only the solenoid/relay (CDS) coil to toilet 1
or 2 quick connect. DO NOT connect toilet negative
and positive directly to outputs.
• Do Not connect switches or any other components to
the Toilet 1 or 2 outputs or the CDS.
System status panel
"Start/Stop" button activates both the toilet and treatment
cycle.
Note: Toilet flush time is factory pre-set at approxi-
mately 10 seconds and is adjustable.
1. Determine proper wire size from toilet manufacturer.
2. Connect wire from lug not marked "BAT" on the CDS
to toilet positive.
3. From top posts of CDS connect positive and negative
to toilet 1 or 2 outputs on control box utilizing .
4. Connect wire from positive source to Raritan CDS
(solenoid/relay) post marked "BAT" utilizing proper
fuse in positive line.
5. When "Start/Stop" button is pressed both toilet and
electro scan will activate. Toilet flush time is controlled
by Control box and can be adjusted - factory preset is
for 10 seconds.
Option #2:
Toilet Push Button -
Flushing toilet will also activate treatment cycle.
Toilet Push Button
1. Determine proper wire size from toilet manufacturer.
2. Connect wire from lug not marked "BAT" on the CDS
to toilet positive.
3. Connect wire from top post of CDS to one of the ext.
trig. (external trigger) outputs.
4. Connect wire from positive source to Raritan CDS
(solenoid/relay) post marked "BAT" utilizing proper
fuse in positive line.
5. When Toilet Push Button is pressed both toilet and
electro scan will activate.
EXT TRIG
Battery
FUSE(toilet)
PBS
Toilet 1
Toilet 1
FUSE
(toilet)
Battery
Gnd
HEAD 1
To small terminals
on CDS* for second
toilet. Wiring for sec-
ond toilet is identical to
wiring for first toilet.
Wiring Salt feed pump
Salt Pump
Option #1 - Activation via System Status Panel:
Option #2 - Activation via toilet's Pushbutton
Switch:
To point "A" of
wiring forToilet 2
HEAD 2
Point "A"
+
-
+
-
Raritan
CDS*
Gnd
* Specify Voltage
l
Wiring for second CDS* and toilet is identical to wiring for first CDS* and toilet.
* Specify Voltage
SALT FEEDNEG
)
NEG
