SL10-2V High-Output, Two-Way Slant Surround Speaker System
SL10-2V High-Output, Two-Way Slant Cinema Surround Speaker System
Speakers-Cinema Part Number 535563 9916
600 Cecil Street, Buchanan, MI 49107
800/234-6831, 616/695-6831, 616/695-1304 Fax
©Telex Communications 1998 Litho in U.S.A.
Specifications
Axial Frequency response(swept sine
wave, 4 Volt at 10 feet on axis, in an
anechoic enviroment normalized to 1
watt/1 meter:
70 Hz- 20,000 Hz (figure 2)
Low frequency 3-dB-Down Point:
90 Hz
Half-Space Reference Effiency:
1.3%
Long-Term Average Power-Handling
Capacity(per ANSI/EIA RS-426-A
1980):
120 watts
Maimum WooferAcoustic Output:
5.68 watts
Sensitivity (SPL at 1Watt 1Meter with a
nominal impeda nce, in an anechoic
environment, band-limited pink-noise
signal,100- 16,000 Hz):
(See Figure 4)
93 dB
Beamwidth (angle include by 6-dB-down
points on polar responses, horizontal
and vertical planes.indicated one-
third-octave bands of pink noise:
(See Figure 6)
Horizontal 400-12,500 Hz
120
O
(40
O
, -30
O
)
Vertical 2,000-12,500 Hz
90
O
(20
O
, -15
O
)
Directivity Factor R
q
(Q),800-16,000 Hz
Median (See Figure 7)
8.68R
Q
(+5.6, -6.3)
Directivity Index D
i
, 800-16,000 Hz
Median (See Figure 7)
7.50dB
(+4.5, -4.5)
Distortion, 0.1 Full Power (see Figure 5)
Second Harmonic,
100 Hz -35dB, 1.8%
1,000 Hz -42dB, 0.8%
10,000 Hz -24dB, 6.3%
Third Harmonic,
100 Hz -45dB, 0.6%
1,000 Hz -42dB, 0.8%
10,000 Hz -43dB, 0.7%
Nominal Directivty:
Horizontal: 100
O
Vertical : 90
O
Transducer Complement,
Low Frequency:
10-inch woofer
High Frequency:
High Efficiency driver/ 100
O
x 90
O
Horn
Crossover Frequency: (See Figure 9)
1,500 Hz
(12dB-per-octave slope)
Impedance: (See Figure 3)
Nominal 8 ohms
DC Resistance
.76 ~ 7.9 ohms
Mounting: (See Figure 2)
Three 5/16-18 diameter holes left and
right for horizontal or vertical mount-
ing using ALLEN PRODUCTS
COMPANY INC. (****0C Bracket) and
four rear 1/4-20 mounting holes using
ALLEN PRODUCTS COMPANY INC.
(MultiMount
TM
-24) , allowing for
greater mounting versitility. The SL10-
2V is also equipped to accomodate
Omnimount products, As well a
support point for added securely.
Material:
V-folded black vinyl-clad particle
board with a Black cloth Grille.
Input Connectors: (See Figure 2)
#10 screw terminals for Input and
Jumper selectivity for Flat or ISO
response.
Dimensions Bass: (See Figure 2)
Height: (43.50 cm) 17.125 in
Width: (32.70 cm) 12.875 in.
Depth: (28.07 cm) 11.13 in.
Net Weight: (11.34 kg) 25 lb
Shipping Weight: (12.38 kg) 27.3 lb
Shipping Carton Dimensions:
13.25 in W. x 15.5 in D. x 21.5 in H.

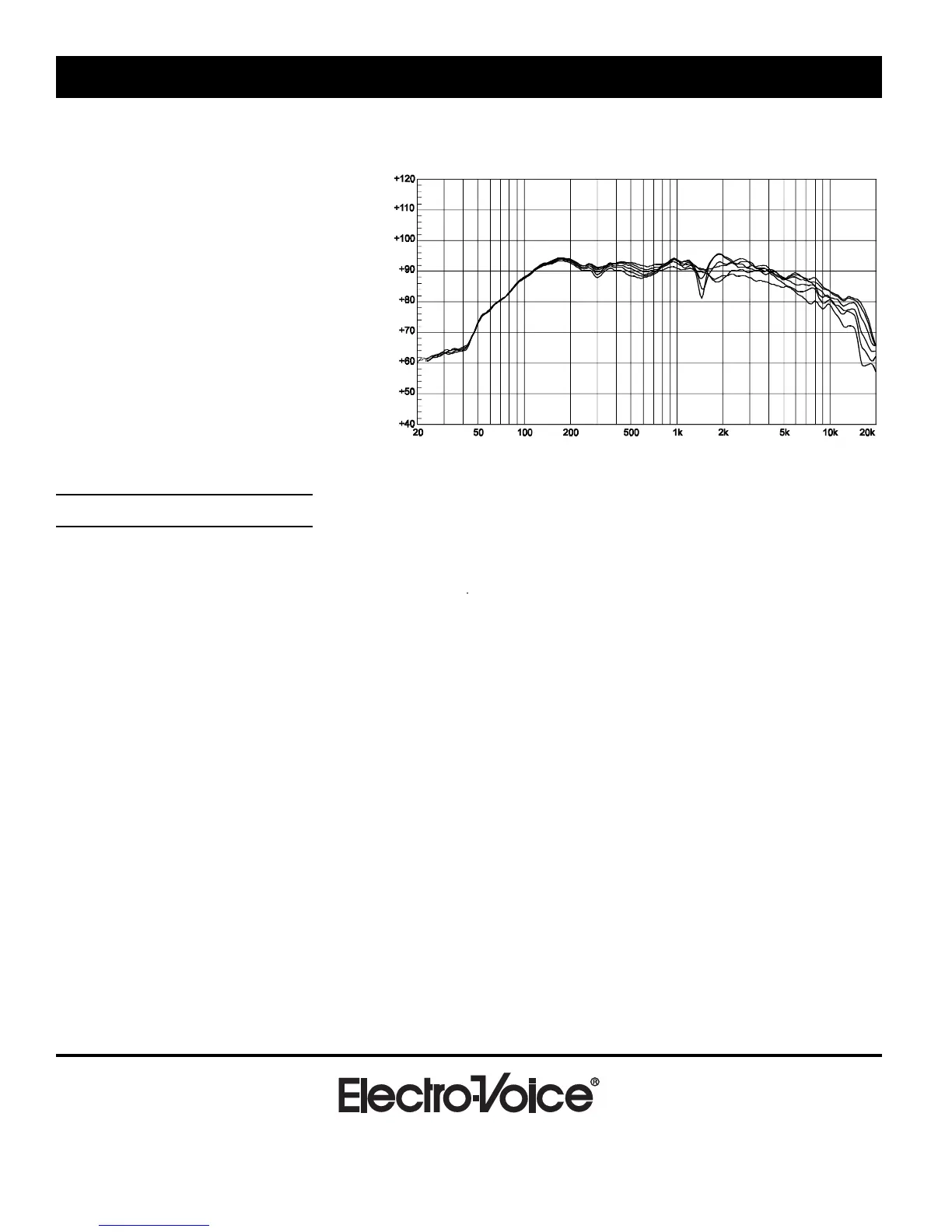

Figure 9 Offaxis Response from 0
O
to - 50
O
(anechoic enviroment)
SPL in dB
FREQUENCY (Hz)
