ELECTROCOMPANIET ECP 2 - Page 5

5
ENG

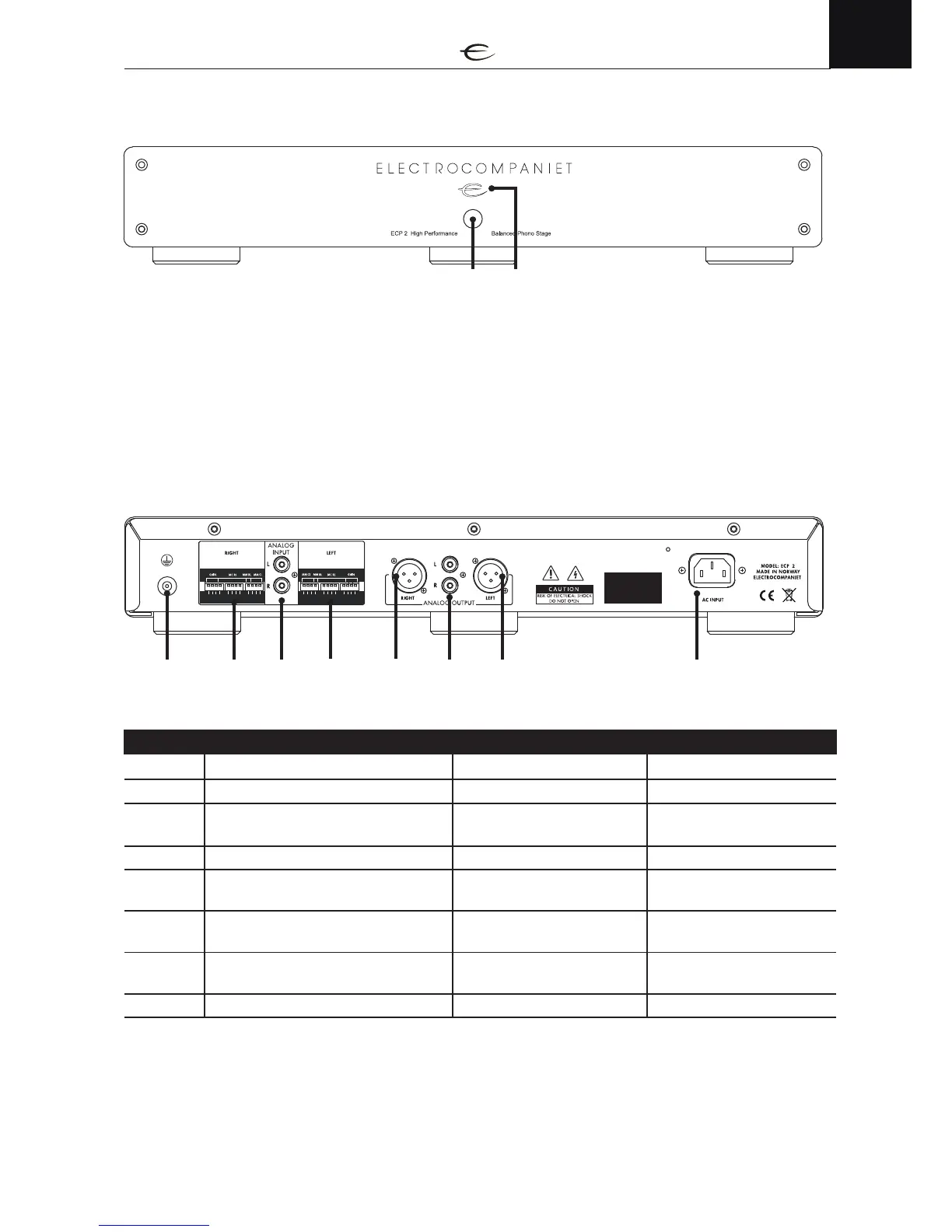

Front panel
1. Power button
2. Power indicator
Rear panel connections
Connector Name Used for Connection type/Cable
1 Ground screw
Grounding wire
2 DIP switch array - Right channel Adjusting the phono stage
3 RCA input Left/Right channel Turntable connection RCA / 75-ohm coaxial
cable
4 DIP switch array - Left channel Adjusting the phono stage
5 XLR balanced output - Right channel Balanced Turntable
connection
XLR / balanced audio
cable
6 RCA line output Left/Right channel Unbalanced Turntable
connection
RCA / 75-ohm coaxial
cable
7 XLR balanced output - Left channel Balanced Turntable
connection
XLR / balanced audio
cable
8 AC power cord socket Input power Supplied power cable
1 2
1 2
7654
3
8
12 11 10 9 8 7 6 5 4 3 2 1
1 2 3 4 5 6 7 8 9 10 11 12
12 11 10 9 8 7 6 5 4 3 2 1
1 2 3 4 5 6 7 8 9 10 11 12
