3.3 Air flow

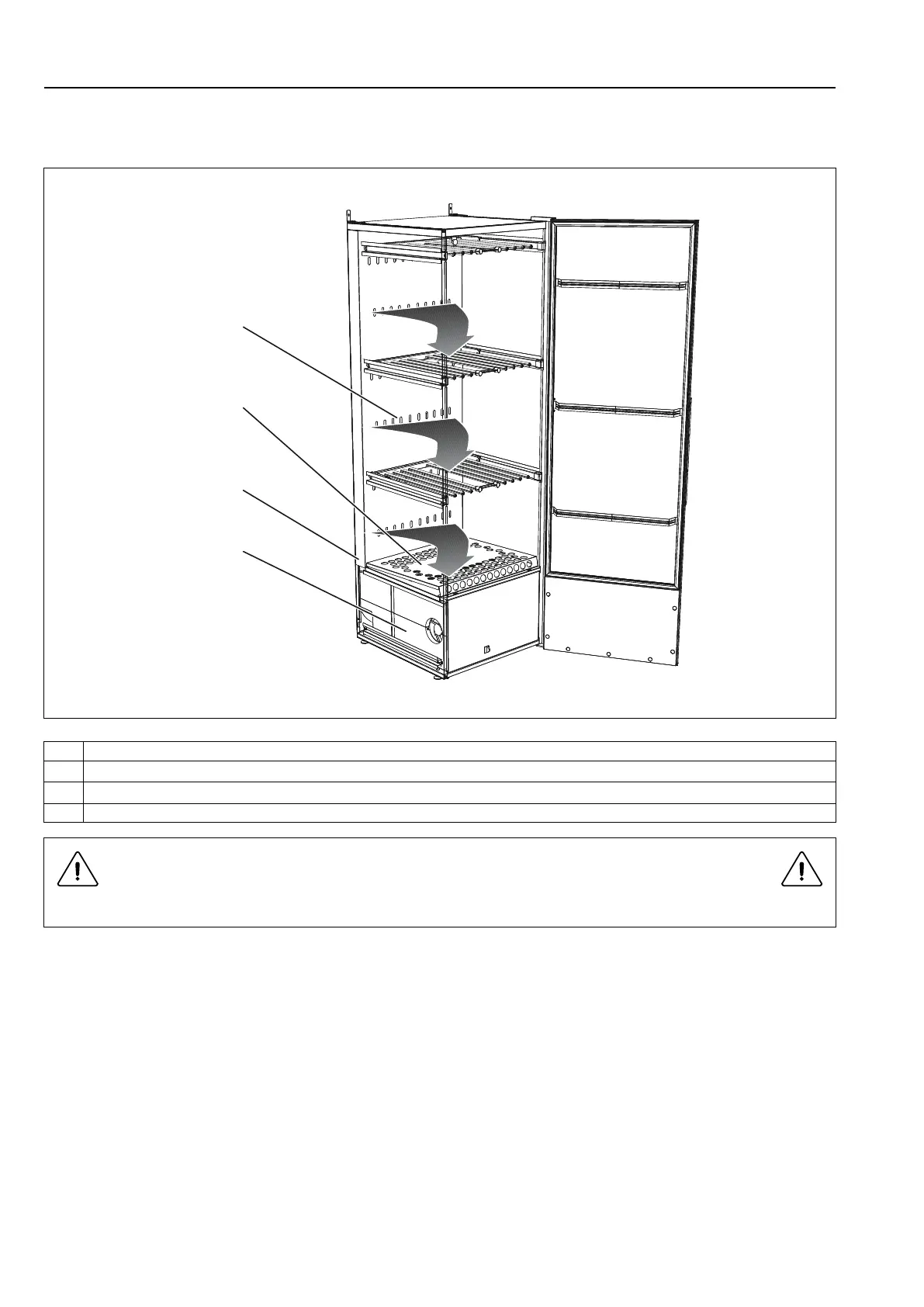

The figure shows the air flow in the drying cabinet.
1
2
3
4
fig.W01307
1 Air flow in 6 rows
2 Cleaning filter under the shoe rack
3 Return air after dehumidification. Enters a duct in the back of the drying cabinet
4 Dehumidifier unit
Make sure that shoes and other items placed in the cabinet do not block air flow.
Note!
The door's sealing strip may not close completely when the cabinet is cold. However, this is fully offset when
the cabinet is running as the heat causes the sealing strip to expand.
