Electrolux 2222 784-01 - Fitting the Plinth

17

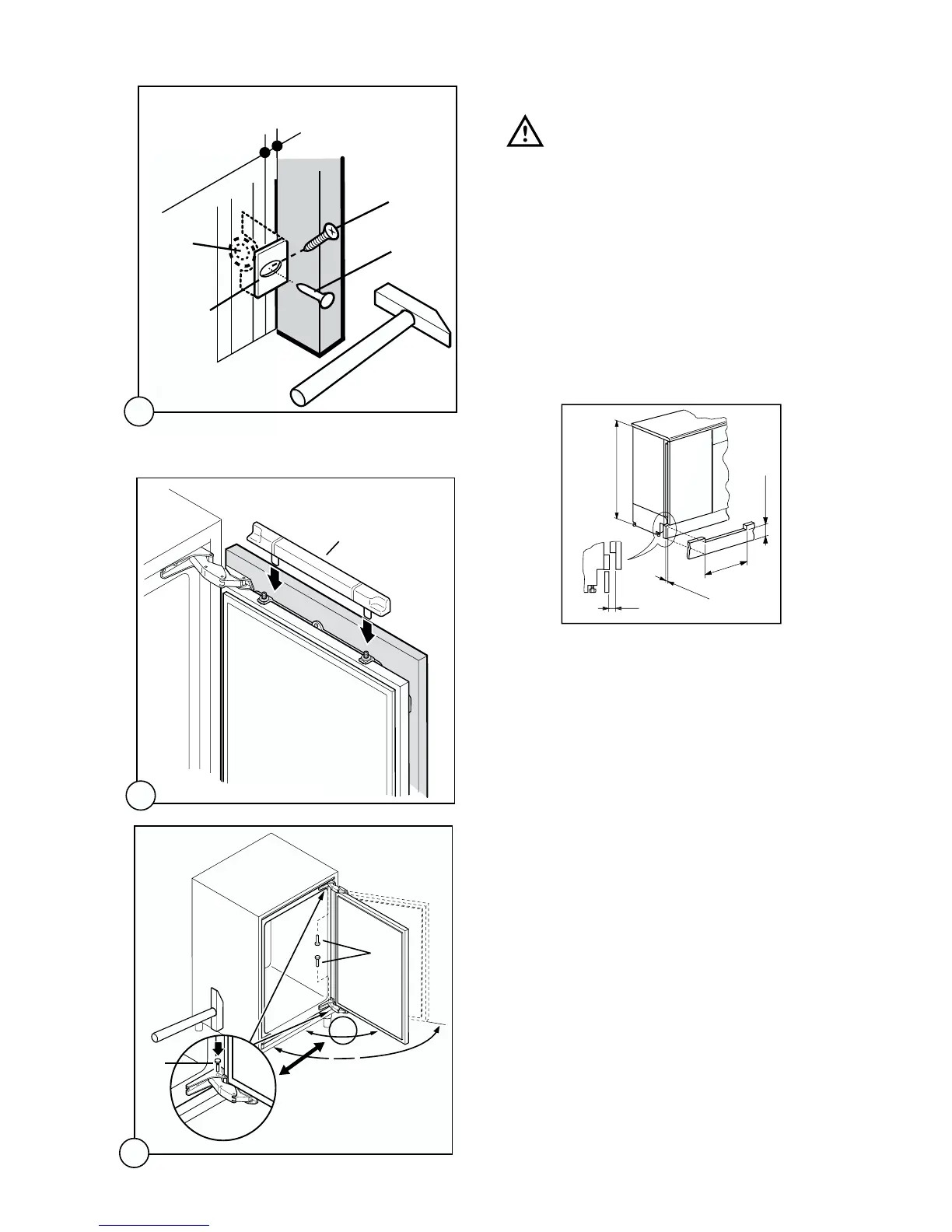

Fitting the plinth
Important
For the efficient operation of the appliance, it is
important that the original ventilation grid is
used.
• For an opening height dimension A=820 mm and a
plinth height dimension a=100 mm, the plinth may
be fitted without adjustments. The same applies to
an opening height dimension B=890 mm and a
plinth height dimension b=170 mm.
• For plinth heights greater than a=100 mm, b=170
mm, a cut should be made in the plinth, 580 mm
wide, in the centre of the appliance position,
leaving a remaining height of a=100 mm, b=170
mm.
• Attach plinth to the kitchen units.
Important
The plinth must be positioned at a minimun distance
of 25 mm from the door.
580
a = 100
b = 170
25 - 80
A = 820
B = 890
2
5
D
O008b
6. Refit the covering strip (A).
8 mm
13
G
K
I
F
14
A
90°
115°
L
L
15
