Installation
10
487 22 52 21 - Cent. 240, 260, 290, GB

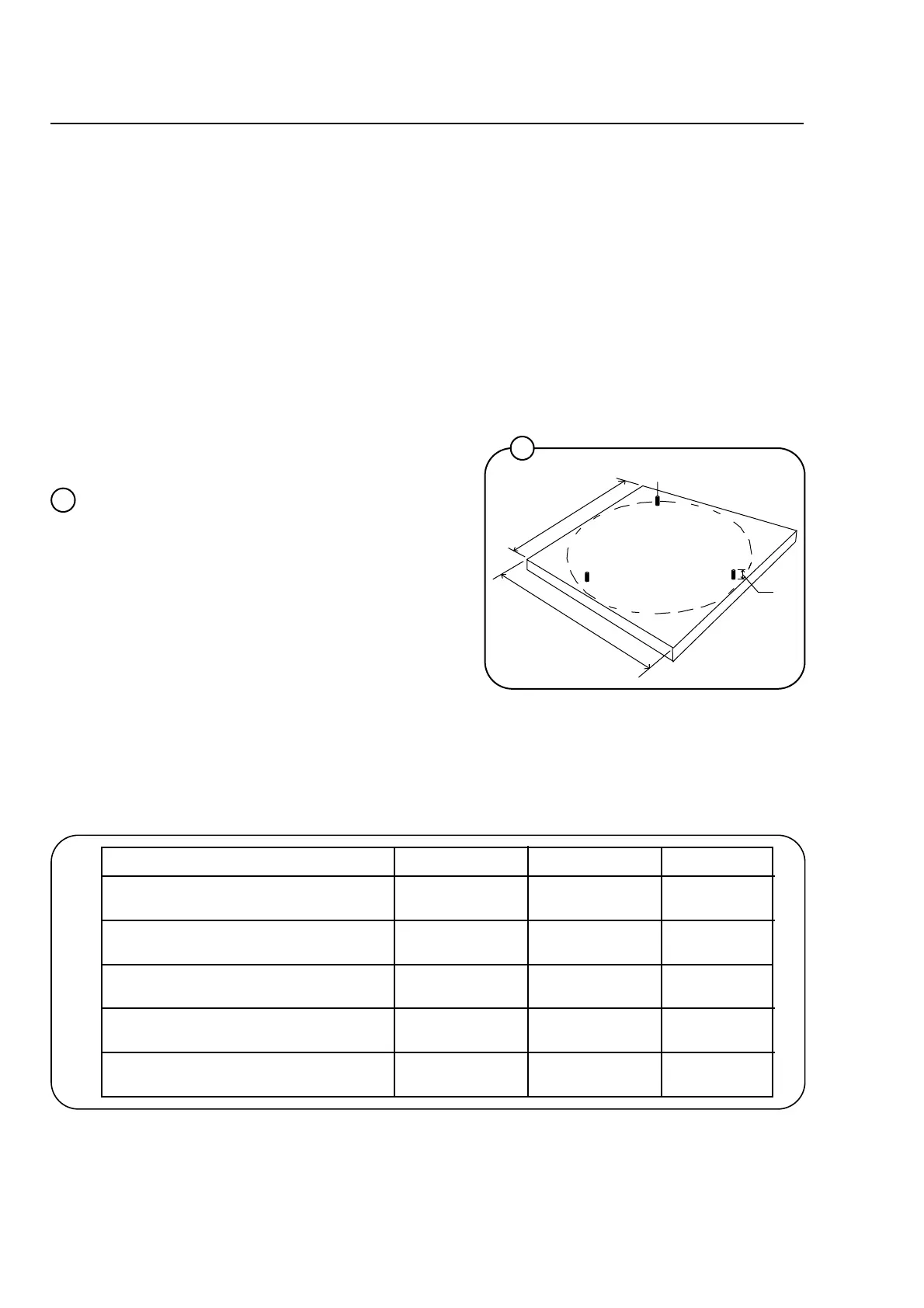

Quality requirements concerning the base
The base must be very stable in order to absorb
the dynamic forces transferred in the spinning
process.
Normally, the hydro-extractor can be attached by
means of expansion bolts (size M12) directly into
a concrete floor of good quality and adequate
thickness - see bolt height B in the table below;
or the enclosed foundation bolts can be cast into
the floor, see procedure next page.
Concreting of foundation for all types of
hydro-extractor
If there is uncertainty as to the quality of the
floor, or if the working height of the hydro-
extractor is too low, it could be a good idea to
build up a concrete foundation. This foundation
should have a height of approx. 100 mm and its
minimum dimensions should be as stated in the
table.
Installation of all types of hydro-extractor
1
1
38 litres 58 litres 88 litres
A 600 mm 700 mm 800 mm
B
freely suspended basket 32 mm 32 mm
B
rigidly suspended basket 60 mm 45 mm 55 mm
Bolts for freely suspended basket 3 pcs. 4 pcs
Bolts rigidly suspended basket 3 pcs 4 pcs 4 pcs
Type of hydro-extractor
