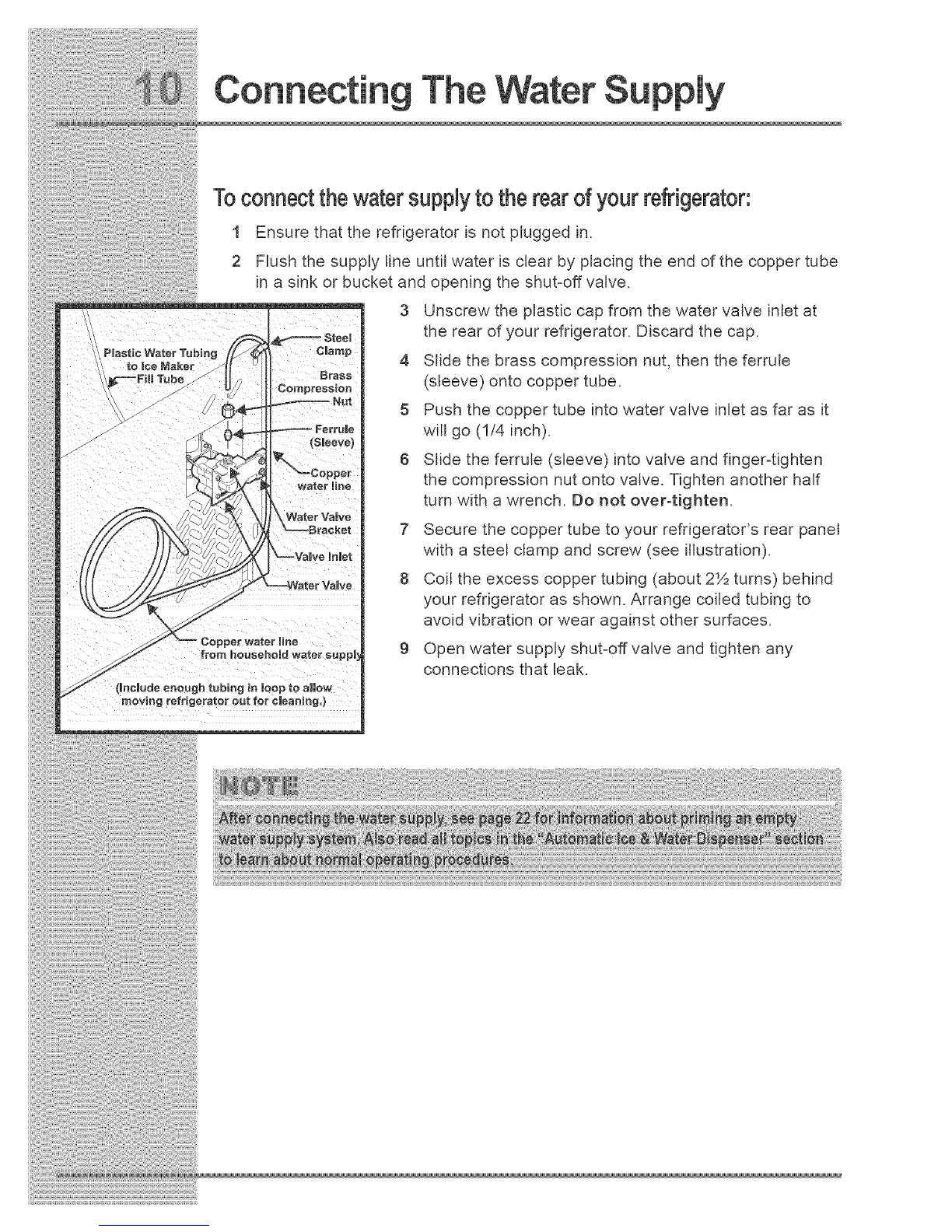

Toconnectthewatersupply to the rearof your refrigerator:
1
2
r_ater Bine
from househomdwater suppM,_
Ensure that the refrigerator is not plugged in.
Flush the supply line until water is clear by placing the end of the copper tube
in a sink or bucket and opening the shut-off valve.
3 Unscrew the plastic cap from the water valve inlet at
the rear of your refrigerator. Discard the cap.
4 Slide the brass compression nut, then the ferrule
Brass (sleeve) onto copper tube.
Compression
5 Push the copper tube into water valve inlet as far as it
will go (1/4 inch).
(Sleeve}
"_'--copper 6 Slide the ferrule (sleeve) into valve and finger=tighten
waterline the compression nut onto valve. Tighten another half
turn with a wrench. Do not over-tighten.
_r vamve
Bracket 7 Secure the copper tube to your refrigerator's rear panel
with a steel clamp and screw (see illustration).
8 Coil the excess copper tubing (about 2½ turns) behind
your refrigerator as shown. Arrange coiled tubing to
avoid vibration or wear against other surfaces.
9 Open water supply shut-off valve and tighten any
connections that leak.
(mncmudeenough tubing in loop tO allow
moviog refrigerator out for cleaning,}
