Site Preparation
5 Position the unit to allow free air flow
through the front grille (see Figure 3).
6 Wipe out inside of unit with a damp cloth.
7 Final finish of the wooden wine rack trim
must be applied at least 24 hours before re-
installing the wooden rack trim into the
cabinet.
8 Be sure to install the Anti-Tip brackets.
Follow the instructions provided with the
Anti-Tip bracket kit.
UL124A
DOOR
SWING
CABINET
OR WALL
0"
CLEARANCE
NEEDED
Figure 1
Figure 3
NONO
NONO
NO
TETE
TETE
TE

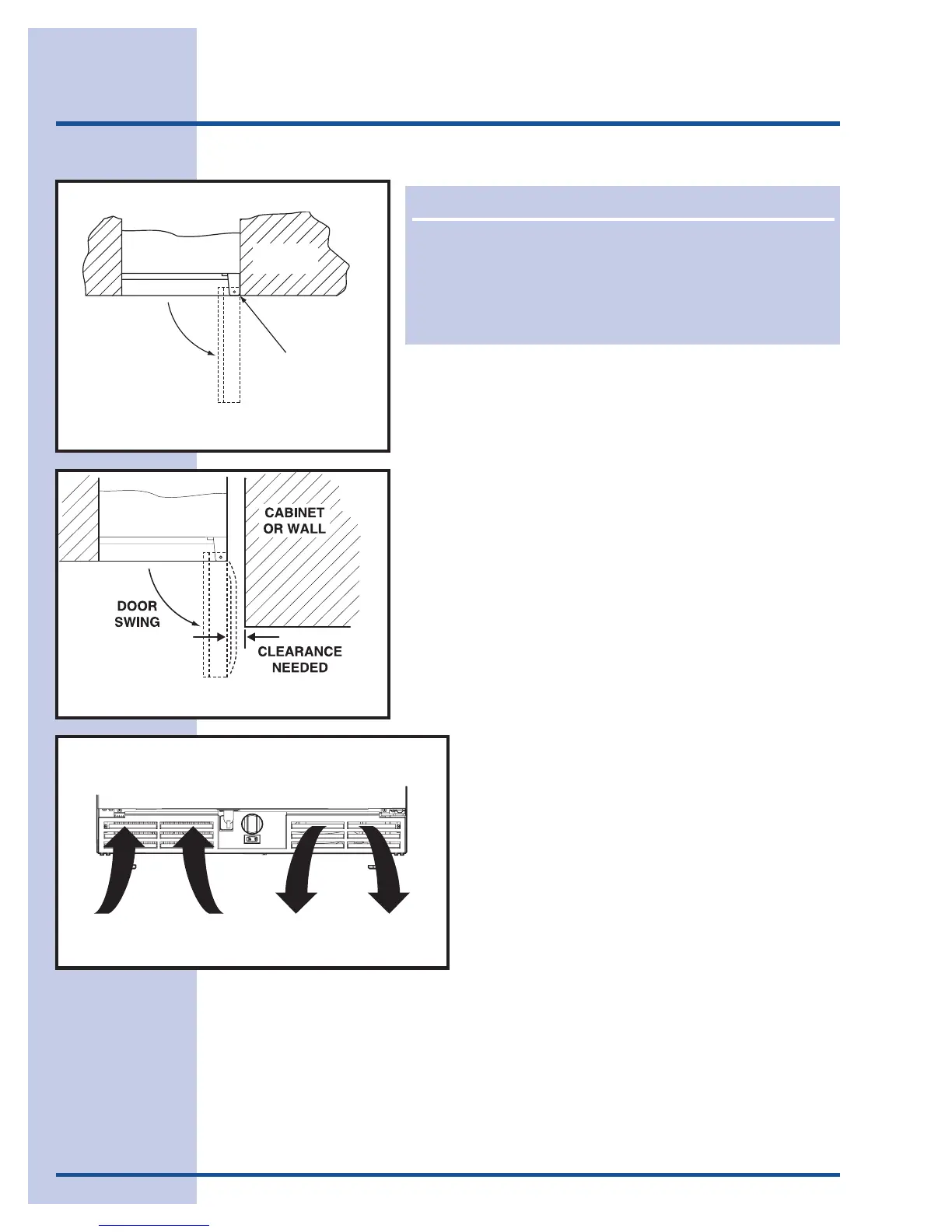

All units require zero clearance when installed flush with a
cabinet or wall (see Figure 1). Electrolux stainless steel
models require a minimum 2-3/4 inch handle clearance
when installed against a wall or cabinet that extends
beyond the front edge of the unit (see Figure 2).
2 - 3/4”
Figure 2
INTAKE EXHAUST
