PLASTIC
PLUGS
Figure 6
Figure 7
Figure 8

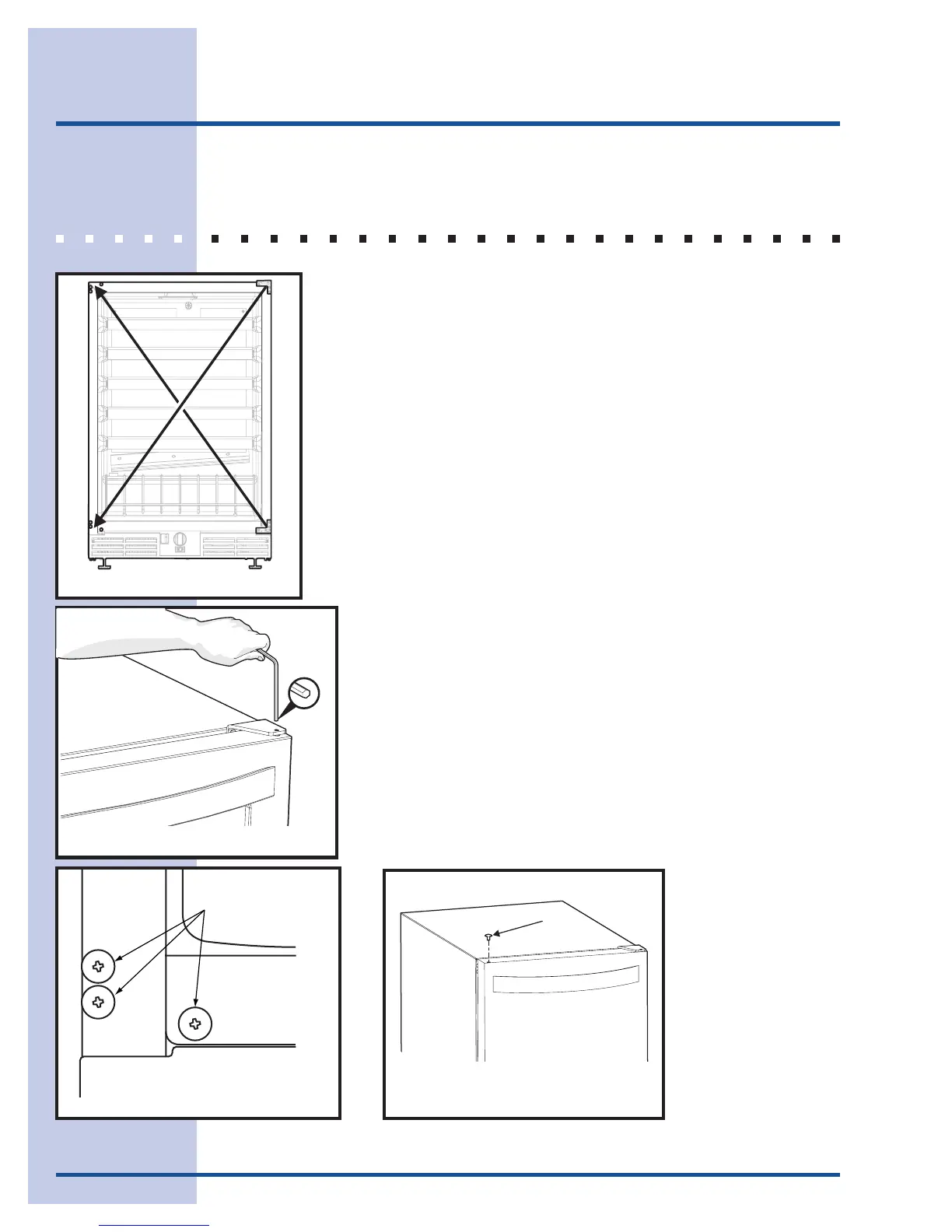

Door Reversal
REVERSING THE DOOR
All Electrolux wine cooler models are field reversible for left or
right hand opening. The door opening is easily reversed by
moving the hinge hardware to the opposite side (see Figure 6).
To reverse the door:
1 Remove top hinge screw pin (7/64" Allen wrench)
from cabinet (see Figure 7).
Remove door by tilting forward and lifting off bottom
hinge pin.
2 Remove plastic screw plugs (3 top and 3 bottom)
from new hinge location (see Figure 8), and remove
hinge pin hole plug in top of door (see Figure 9). Do
not discard.
Figure 9
Hole
Plug
