Electrolux E24WC48EPS Installation

Door Reversal
3 Remove top hinge (3 screws), reinstall hinge screw pin, and
remount on opposite side BOTTOM (see Figure 10).
4 Remove the two door closer plastic inserts from the existing
bottom hinge and install as shown on the new bottom hinge
(see Figure 11).
5 Remove existing bottom hinge (3 screws) and remount on
opposite side TOP. Remove top hinge screw pin.
6 With bottom of door facing up, remove pivot plate (2 screws),
flip over, and remount on opposite side of door (see Figure 12).
7 Holding door upright with top of door tilted forward, place hole of
door pivot plate on bottom hinge screw pin (see Figure 13). Be
sure that the bosses on the closers align with holes in hinge
and hinge plate.
8 Tilt top of door into position in top hinge and install top hinge
screw pin.
9 In empty hinge holes, install plastic screw plugs (3 top and 3
bottom) and door hole plug (1,door top) removed in step 2.
UL313
HINGE
SCREW
PIN
UL312
DOOR
CLOSER
INSERTS
BOSS

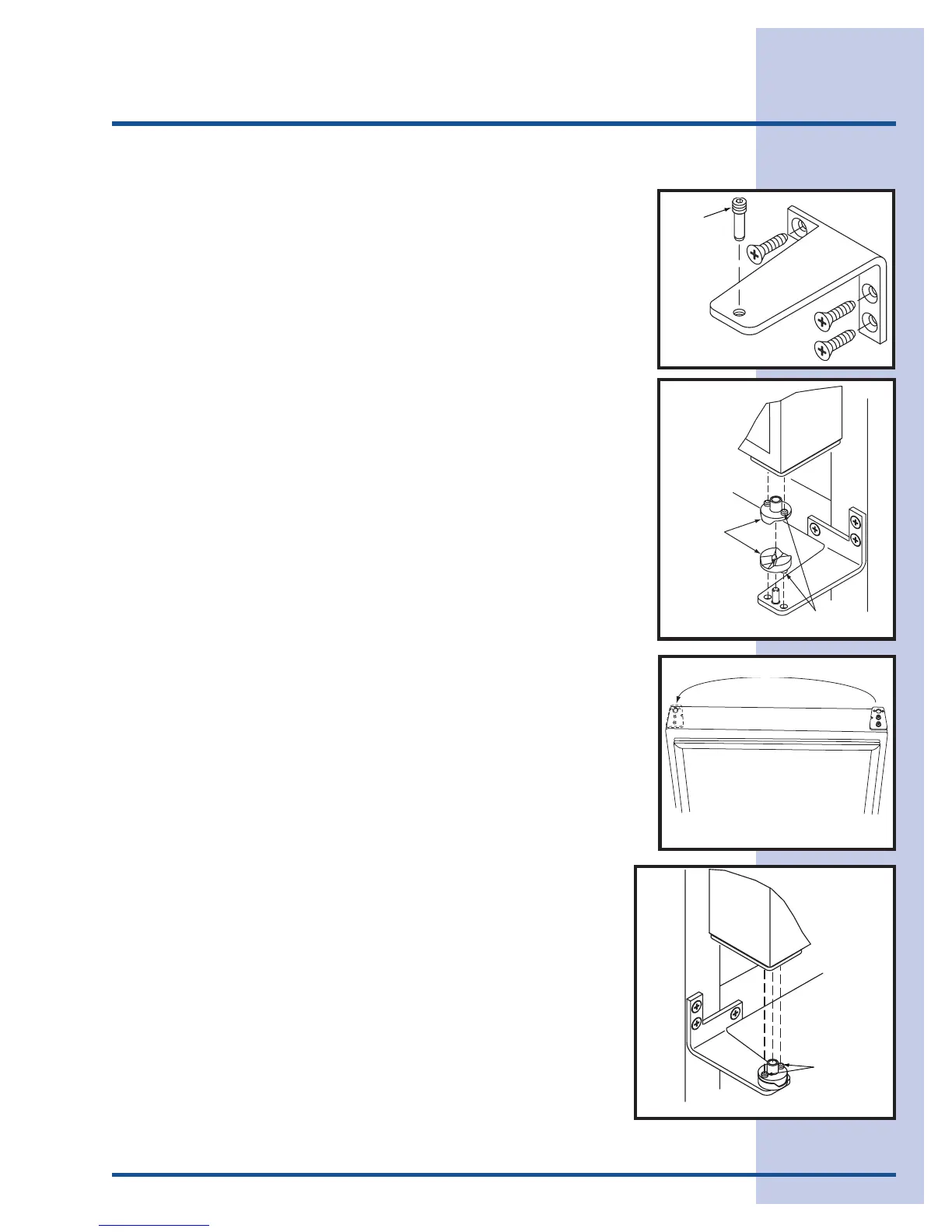

Figure 10
Figure 11
BOSS
CLRCO008
UL319
Figure 12
Figure 13
