ELECTRIC WALL OVEN INSTALLATION INSTRUCTIONS
18”(45.7 cm) Max.
6 1/2” Min.
(16.5 cm)
Flare
Union
4”(10 cm)
120V/60Hz
Grounded
Outlet
Right Side
of Cabinet
(To be
accessible
for shut-off
valve
operation)
Pressure
Regulator
Manual
Shutoff
Valve
Flexible Appliance Conduit
Cabinet sides or
filler panel
Wall Oven Cabinet
5” Max.
(12.7 cm)
Flare
Union

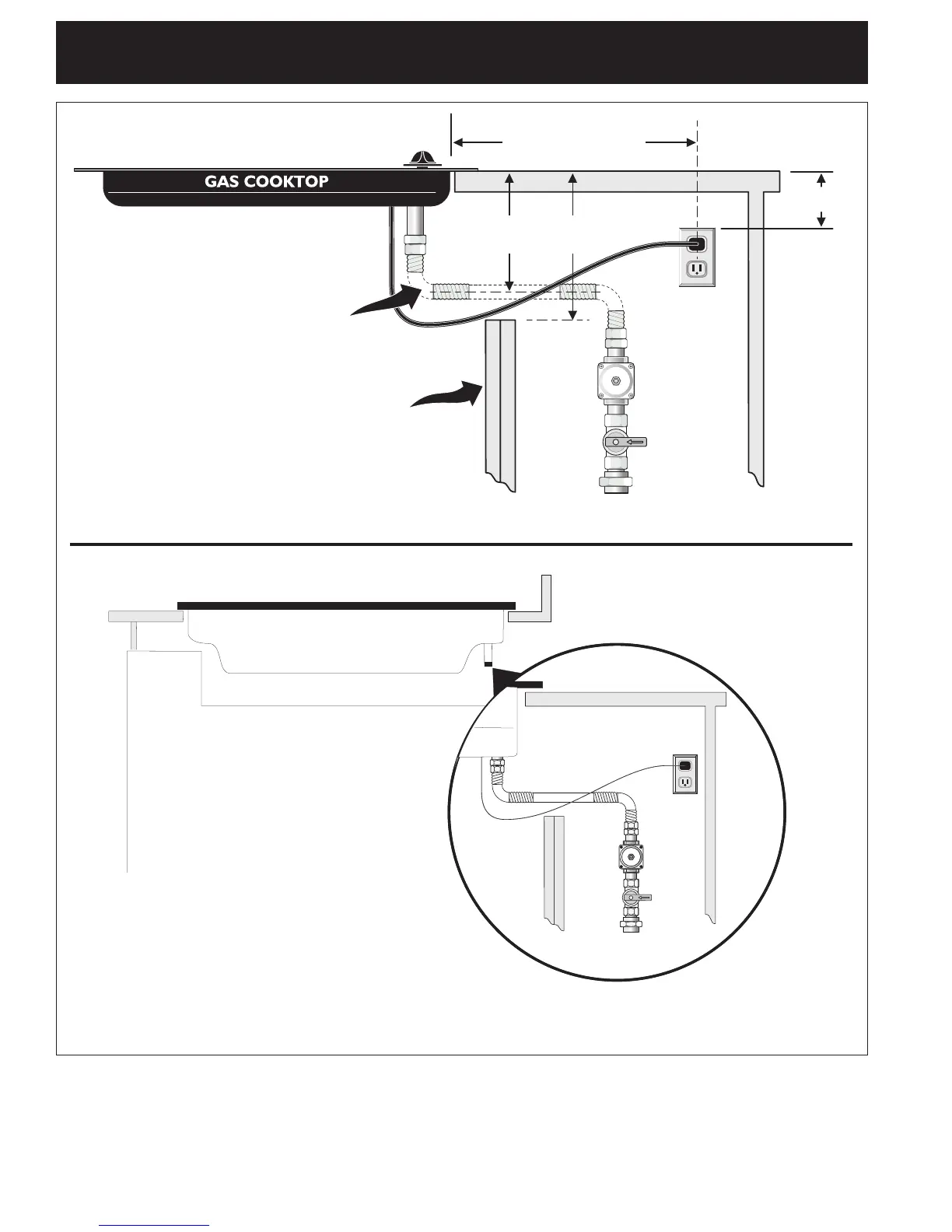

Figure 13 - TYPICAL UNDER COUNTER INSTALLATION OF A SINGLE ELECTRIC BUILT-IN OVEN
WITH A GAS COOKTOP ABOVE
Cooktop
Wall Oven
Side view
Front view
