To reduce the risk of per-
sonal injury and tipping
of the wall oven, the wall
oven must be secured to
the cabinet (s) by
mounting brackets, Refer
to page 4 for mounting
brackets installation.
208/240 Volt junction box
for builtqn oven.
Approx. 3"
(7.5 cm)
Cabinet side filler panels are
necessaryto isolate tile unit from
' rig cabinets.
36" Min.
(91.4 cm) Min.
4
Use 3/4" (1.9 cm) plywood, installed
on two runners, flush with toe plate.
Must be capable of supporting 200
pounds (90 kg).
Cut an opening in wood base minimum 4" x 4"
(10.2 X !0.2 cm), 2" (5 cm) from left side filler
panel, to route armeured cable to junction box.
5" (12.7 cm) Max.
30" (76,2 cm) 28 1/2" (72,4 cm) Min. 28 I/4" (7I .8 cm) Min,
Wall Oven 29" (73,7 cm) Max. 24" (61 cm) Min. 28 7/8" (7€.€ cm) Max,

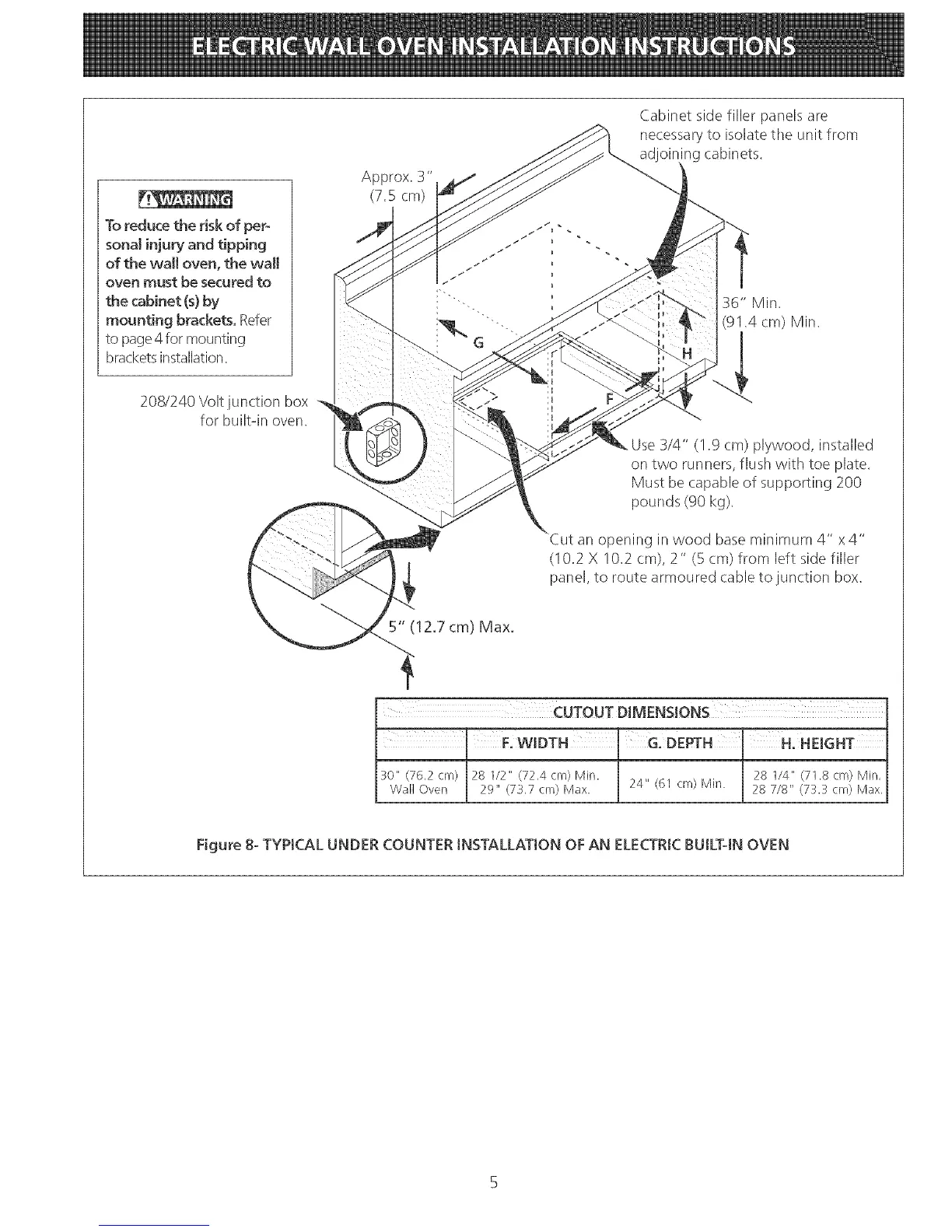

Figure 8- TYPtCAL UNDER COUNTER INSTALLATION OF AN ELECTRICBU_LT-INOVEN
