INSTALLATION (CONTINUED)

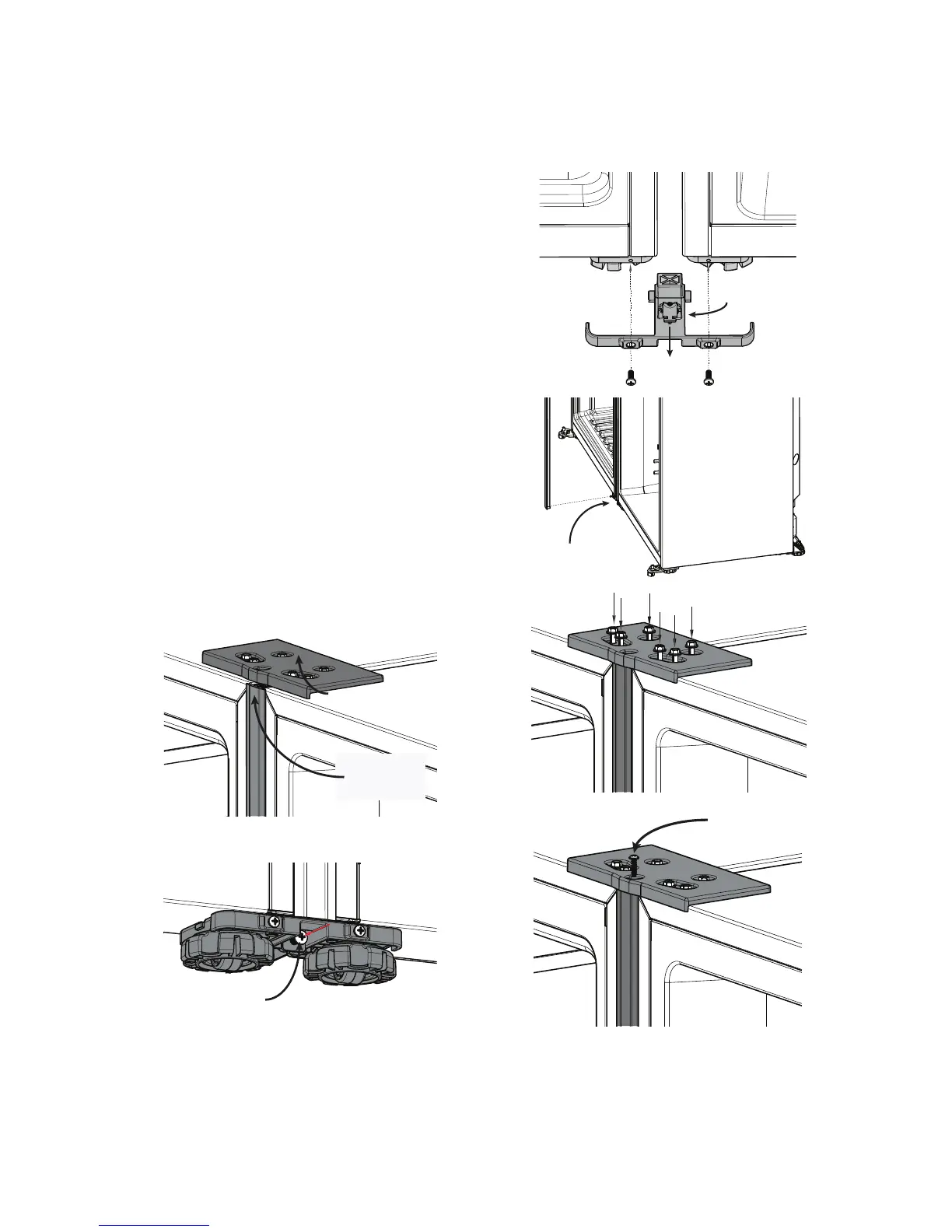

1.4 - Bottom-front bracket installation
1.4.1 - Position the bottom-front bracket
• Position the bottom-front bracket between the
two cabinets.
• Fasten with the two M4 screws using a phillips
head screwdriver.
• Extract the tensioner.
1.5 - Fit the centre cover
• Push the centre cover between the two cabinets
• Engage the bottom end of the centre cover into the
tensioner of the bottom-front bracket.
• Lift the top-front bracket (screws should be loose
enough) and slide the centre cover underneath.
• Tighten the screws in the top-front bracket.
• Adjust the tensioner screw as required.
• Fasten the centre cover to the top-front bracket by
means of the the provided self-tapping screw.
Lift top-front
bracket
Slide centre
cover under
