ADJUSTING DOOR ALIGNMENT
To complete installation of your joined appliances it
may be necessary to slightly adjust door alignment
on the individual appliance. This process is illustrated
in the following section.
1. With the door open, remove the hinge cover by
simultaneously pulling the cover away and up from
the hinge. This action will release the clip that is
retaining the cover to the hinge.

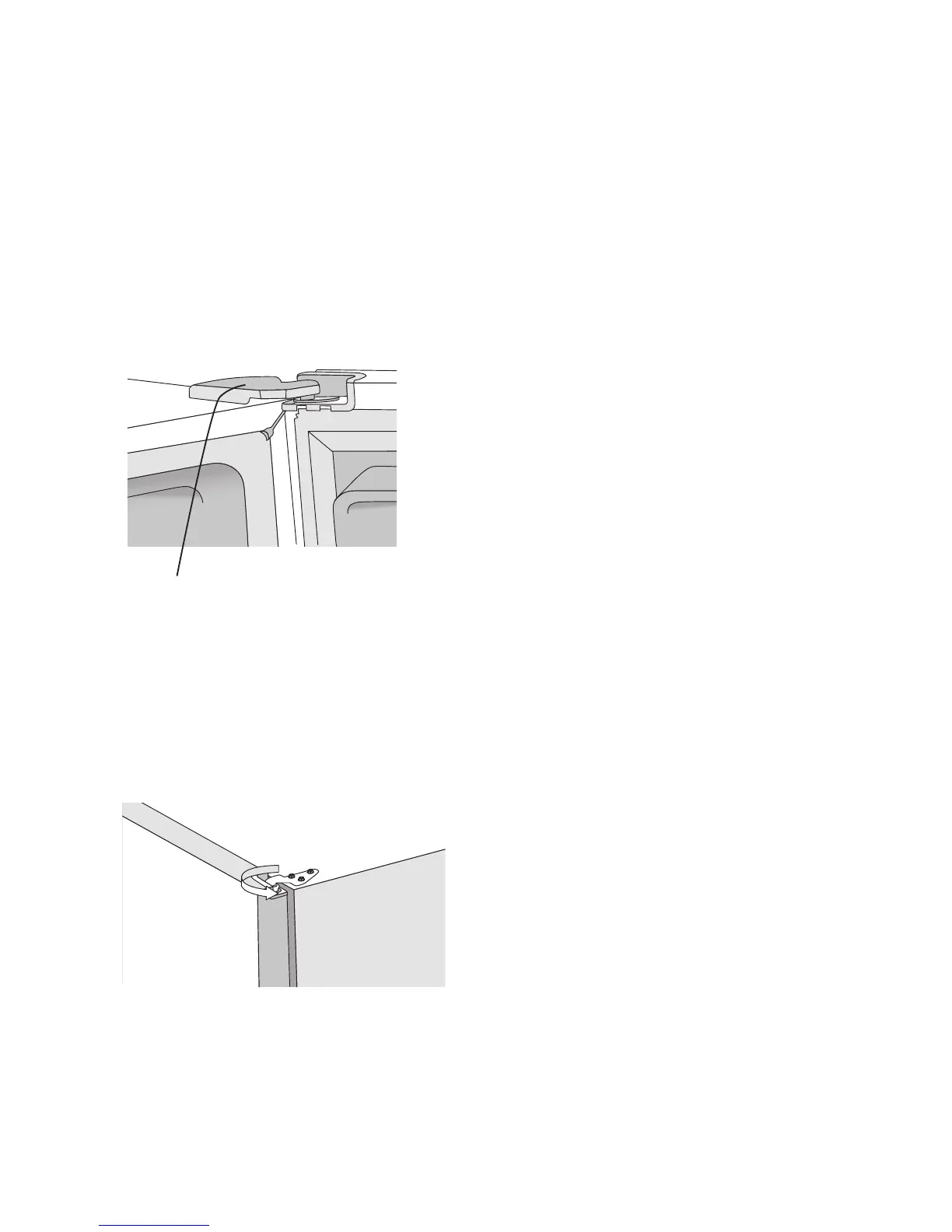

Small plastic clip is located here. With the door
open, pull the cover outward while simultaneously
pulling up in order to release the hinge cover.
2. Slightly loosen the three screws retaining the hinge to
the cabinet. This will allow for slight movement of the
cabinet door.
Have the assistant hold the door in desired position
and fully secure top hinge fasteners, inspect the
alignment and if satisfied clip the hinge cover back
onto the top hinge.
Loosening the top hinge fasteners will allow the top
hinge to be slightly rotated thus adjusting the gap
between doors.
